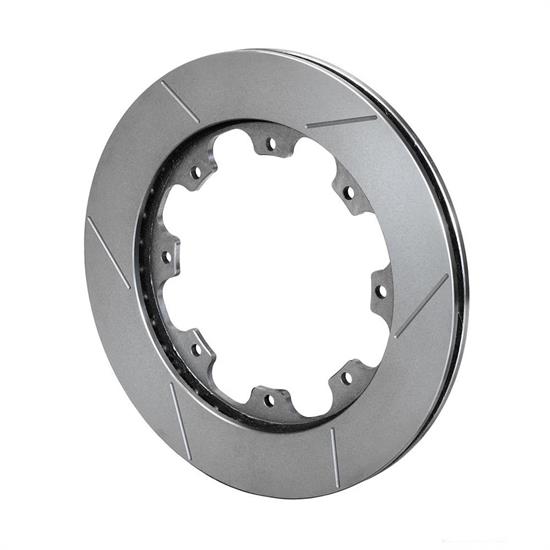

Wilwood 160-12287 GT 36 SPC-37 Curved Vane RH Rotor, 12 x .810 Inch

#83516012287

Wilwood 160-12287 GT 36 SPC-37 Curved Vane RH Rotor, 12 x .810 Inch

Name: Wilwood 160-12287 GT 36 SPC-37 Curved Vane RH Rotor, 12 x .810 Inch
Brand: Wilwood
SKU: 83516012287
Price: 263.59 USD
Availability: InStock

Write a Review

Ask a Question

Type:

GT 36 Slotted R/H

GT 36 Slotted L/H SRP Drilled/Slotted R/H SRP Drilled/Slotted L/H

$263.59

/each

Factory Shipped

$275.04

Save $11.45

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Right Position, Round Rotor Shape, Plain

See more details

Key Specs

Rotor Diameter	12 Inch
Rotor Style	Slotted
Rotor Material Type	Spec-37 Iron
Rotor Thickness	0.81"
Rotor Hat Bolt Pattern	8 x 7.00"

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 160-12287 Details

Wilwood's GT 36 Curved Vane Spec-37 rotors are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood. Every Spec 37 rotor is precision machined to less than .001" run-out, flatness, and parallelism. Combined with our proven GT Series asymmetrical face slot pattern and individual dynamic balancing, you are assured the smoothest braking available.

Spec-37 Heavy wall Castings
Suitable for high temperature racing to street use.

Wilwood 160-12287 Specifications

KEY SPECS
MFG. Part #	160-12287
Brand	Wilwood
Rotor Diameter	12 Inch
Rotor Style	Slotted
Rotor Material Type	Spec-37 Iron
Rotor Thickness	0.81"
Rotor Hat Bolt Pattern	8 x 7.00"

GENERAL
Position	Right
Rotor Shape	Round
Rotor Type	Vented
Rotor Finish	Plain
Vane Count	36 Curved Vane
Bedded	No
Balanced	Yes
Lug ID	6.38"
Inside Diameter	8.41"
Weight	9 lbs.
Sold in Quantity	Each
GTIN Code	889545038415
