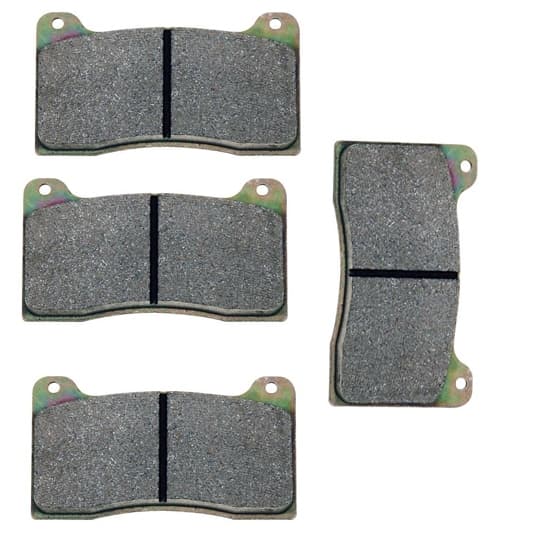

Wilwood 150-8946K NDL/Dynalite Bridge Bolt Brake Pads, BP-10

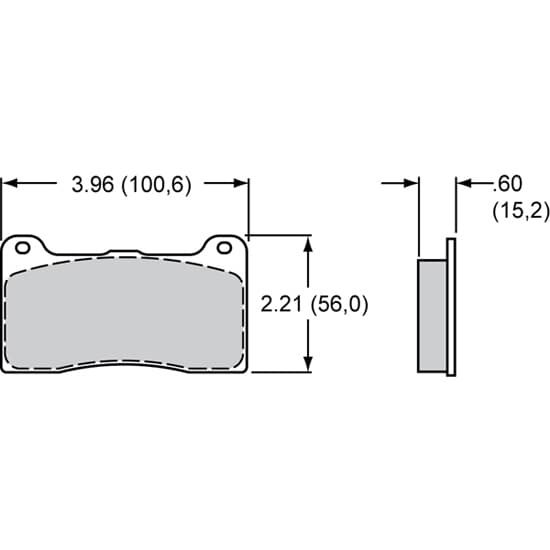

Midget, Sprint Car, BP-10 Compound, 4.00" Overall Width, 2.21" Overall Height, Not Bedded
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Replacement brake pads for your Wilwood NDL or Dynalite calipers (or comparable Ultra Lite calipers).
- Width 4.00"
- Medium friction compound with the low noise and low dust of a street performance compound and the increased friction characteristics of a semi-metallic race compound
- Good low to middle temperature wear rates
- Formulation specific for use with Polymetallic coated rotors
Pads will fit:
- Wilwood Billet NDL calipers
- Wilwood Forged NDL calipers
- Wilwood Dynalite calipers w/ Bridge Bolt
- Ultra Lite UL-237
Tech Tip: Only use full metallic pads on ceramic coated rotors.
Compound Data Sheet (PDF)
Brake Pad Brand Guide (Link)
Learn how to properly Bed-In your brake pads by reading our tech article. Bedding-In Brake Pad Procedure.
Item Details0.600" thickness
Wilwood # 150-8946K
ApplicationBP-10 - New metallic compostie friction pad compound. Possesses med-high temp range friction characteristics of a full metallic compound race pad. Features a med-high toruqe.
