Wilwood 140-9802-DP FNSL6R Front Disc Brake Kit,74-80 Pinto/Mustang II

$243 Off

#8351409802DP

Wilwood 140-9802-DP FNSL6R Front Disc Brake Kit,74-80 Pinto/Mustang II

Specifically designed to fit the 1974-1980 Ford Pinto/Mustang II
Rotors have a 14" diameter and are designed to clear 18"-up wheels
Kit is engineered for traditional non-ABS spindles on American muscle cars and vintage rods

Rotor / Caliper Type:

Drilled / Polished

Undrilled DrilledDrilled / Red Undrilled / Polished

$2,957.66

/each

Factory Shipped

$3,200.57

Save $242.91

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 14 Inch Rotor Diameter, Polished

Specifically designed to fit the 1974-1980 Ford Pinto/Mustang II
Rotors have a 14" diameter and are designed to clear 18"-up wheels
Kit is engineered for traditional non-ABS spindles on American muscle cars and vintage rods
6 piston calipers are powder coated black for enhanced corrosion protection
A drilled and slotted rotor design provides excellent heat dissipation

See more details

Key Specs

MFG. Part #	140-9802-DP
Position	Front
Rotor Diameter	14 Inch
Rotor Type	Vented
Caliper Pistons	Six

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-9802-DP Details

FNSL6R billet Forged six-piston calipers with 13"-14" rotors deliver the ultimate combination for braking power and style in this group of kits engineered for traditional non-ABS spindles on American muscle cars and vintage rods. Built exclusively for 17" and larger wheels, SL6 kits enhance tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines. A full range of options for caliper finishes and rotor designs are guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application.

Application

1974 Ford Mustang II All
1974 Ford Pinto All
1975 Ford Mustang II All
1975 Ford Pinto All
1975 Mercury Bobcat All
1976 Ford Mustang II All
1976 Ford Pinto All
1976 Mercury Bobcat All
1977 Ford Mustang II All
1977 Ford Pinto All
1977 Mercury Bobcat All
1978 Ford Mustang II All
1978 Ford Pinto All
1978 Mercury Bobcat All
1979 Ford Pinto All
1979 Mercury Bobcat All
1980 Ford Pinto All
1980 Mercury Bobcat All

Charts

Installation Instructions (PDF)

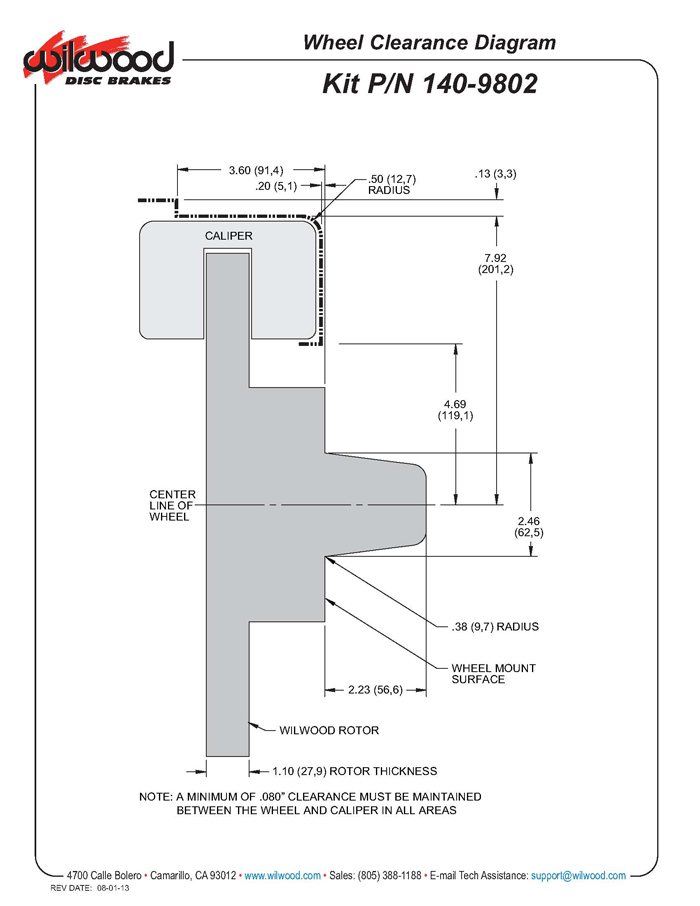

Wheel Clearance Diagram (JPG)

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (8351409802DP)

Wilwood 140-9802-DP Specifications

KEY SPECS
MFG. Part #	140-9802-DP
Brand	Wilwood
Position	Front
Rotor Diameter	14 Inch
Rotor Type	Vented
Caliper Pistons	Six
Caliper Finish	Polished
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	18 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Drilled & Slotted
Spindle Type	Drop & Factory Disc Spindles
Front Rotor Included	Yes
Front Rotor Diameter	14 Inch
Front Caliper Included	Yes
Rear Caliper Included	No
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	Yes
Rear Rotor Included	No
Color	Natural
Front Caliper Piston Quantity	6
Bolt Pattern	5 on 4.5" \| 4.75"
Front Caliper Finish	Polished

GENERAL
GTIN Code	889545032130
Rotor Thickness	1.1"
Stud Diameter	0.52"
Mount Type	Radial
OE Hub Offset	0.68"
Total Piston Area	4.04 sq. in.
Piston Type	Stainless
Pad Area	8.20 sq. in.
Pad Volume	3.8 cu. in.
Brake Pad Compound	BP-10
Caliper Type	Radial
Rotor Finish	Black E-Coat
Rotor Material Type	Spec-37 Iron
Vane Count	72 Curved Vane
Bedded	No
Balanced	Yes
Hat Type	Big Brake Hat - Flared Bell
Hat Finish	Black E-Coat
Hat Material Type	Aluminum
Hat Offset Dimension	1.88"
Brake Lines Included	No
Caliper Color	Polished
Caliper Material Type	Forged Aluminum
Hat Bolt Circle 1	5 x 4.50
Hat Bolt Circle 2	5 x 4.75
Stud Diameter 2	0.52"
