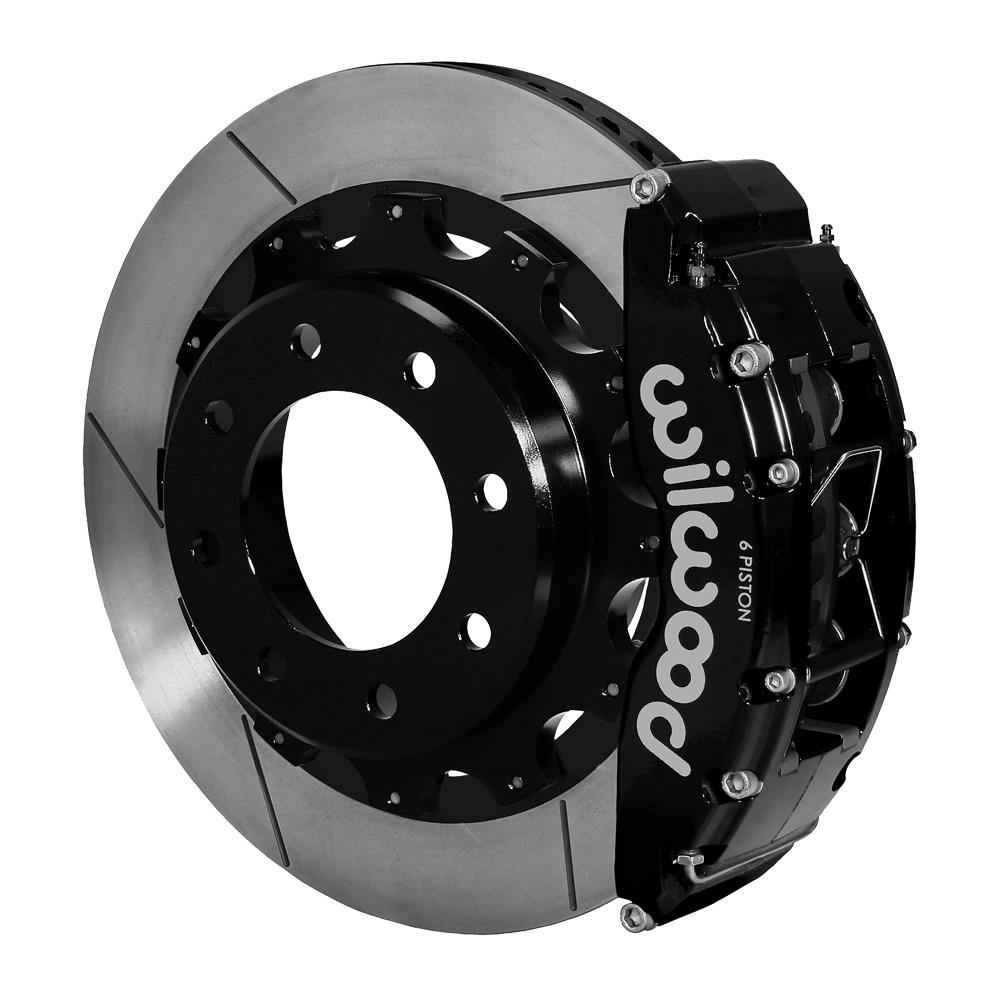

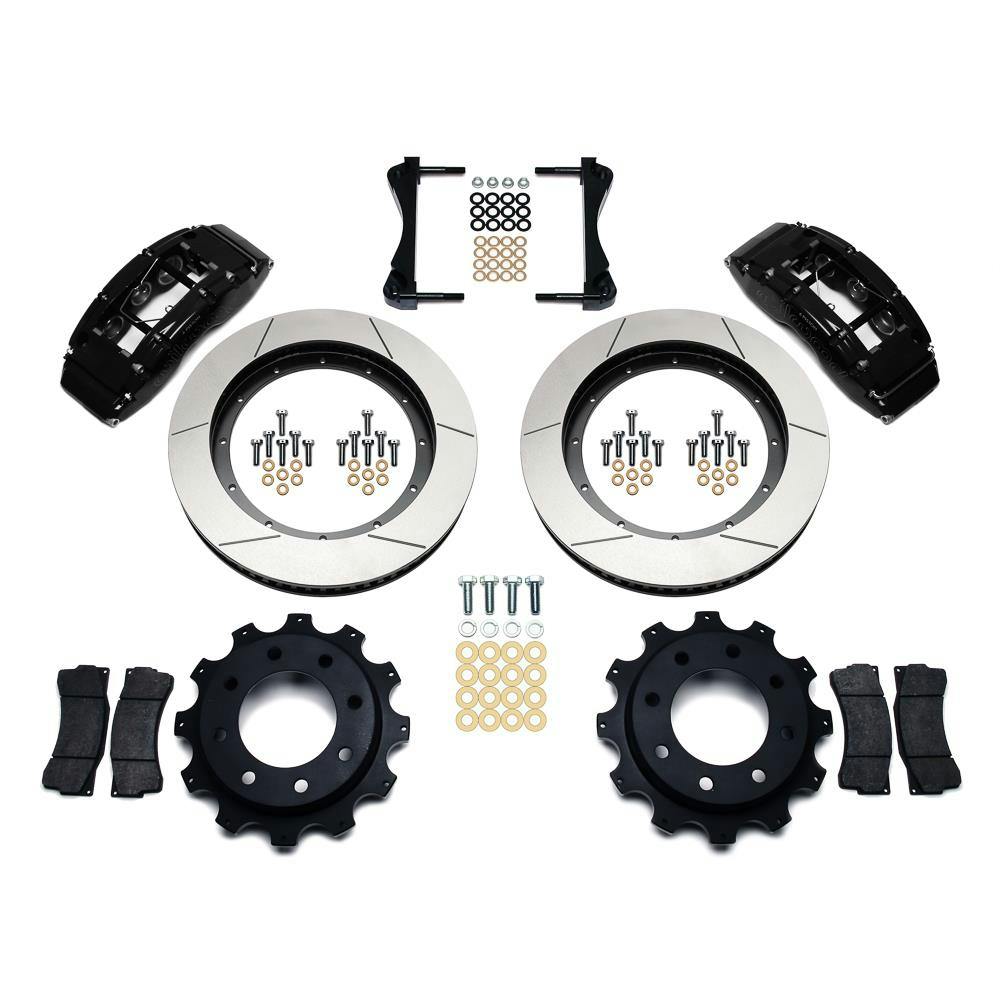

Wilwood 140-9406 TC6R Big Brake Truck Rear Brake Kit, Black

$371 Off

Wilwood 140-9406 TC6R Big Brake Truck Rear Brake Kit, Black
Wilwood

|

#8351409406

Wilwood 140-9406 TC6R Big Brake Truck Rear Brake Kit, Black

  • TC6R rear axle disc brake kits with 16” rotors are the ultimate big brake solution for highly customized and modified trucks or SUV’s upgraded to larger than stock wheels
  • TC6R kits can fit many 20”and larger wheels (Verify your wheel interior clearance to the wheel clearance diagram in the installation instructions before purchase)
See More

Rotor / Caliper Type:

Undrilled

Drilled

$3,092.33

/each

Factory Shipped

$3,463.40

Save $371.07


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Rear Position, 16 Inch Rotor Diameter, Powder Coated

  • TC6R rear axle disc brake kits with 16” rotors are the ultimate big brake solution for highly customized and modified trucks or SUV’s upgraded to larger than stock wheels
  • TC6R kits can fit many 20”and larger wheels (Verify your wheel interior clearance to the wheel clearance diagram in the installation instructions before purchase)
  • TC6R kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades
  • TC6R calipers, BP-10 compound pads, and oversized rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements of each vehicle
  • These combined enhancements provide the necessary control over big wheels and tires to provide safe stopping on heavy weight vehicles
See more details

Key Specs

MFG. Part #140-9406
PositionRear
Rotor Diameter16 Inch
Rotor TypeVented
Caliper PistonsSix
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-9406 Details

  • TC6R rear axle disc brake kits with 16” rotors are the ultimate big brake solution for highly customized and modified trucks or SUV’s upgraded to larger than stock wheels
  • TC6R kits can fit many 20”and larger wheels (Verify your wheel interior clearance to the wheel clearance diagram in the installation instructions before purchase)
  • TC6R kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades
  • TC6R calipers, BP-10 compound pads, and oversized rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements of each vehicle
  • These combined enhancements provide the necessary control over big wheels and tires to provide safe stopping on heavy weight vehicles

Application

1999 Chevrolet Silverado 2500 Pickup 8 Lug - All w/ 4.84 Center Register Rear
1999 GMC Sierra 2500 Pickup 8 Lug - All w/ 4.84 Center Register Rear
2000 Chevrolet Silverado 2500 Pickup 8 Lug - All w/ 4.84 Center Register Rear
2000 GMC Sierra 2500 Pickup 8 Lug - All w/ 4.84 Center Register Rear
2001 Chevrolet Silverado 2500 HD Pickup 8 Lug - All w/ 4.84 Center Register Rear
2001 Chevrolet Silverado 2500 Pickup 8 Lug - All w/ 4.84 Center Register Rear
2001 Chevrolet Suburban 2500 8 Lug - All w/ 4.84 Center Register Rear
2001 GMC Sierra 2500 HD Pickup 8 Lug - All w/ 4.84 Center Register Rear
2001 GMC Sierra 2500 Pickup 8 Lug - All w/ 4.84 Center Register Rear
2001 GMC Yukon XL 2500 8 Lug - All w/ 4.84 Center Register Rear
2002 Chevrolet Avalanche 2500 8 Lug - All
2002 Chevrolet Silverado 2500 HD Pickup 8 Lug - All w/ 4.84 Center Register Rear
2002 Chevrolet Silverado 2500 Pickup 8 Lug - All w/ 4.84 Center Register Rear
2002 Chevrolet Suburban 2500 8 Lug - All w/ 4.84 Center Register Rear
2002 GMC Sierra 2500 HD Pickup 8 Lug - All w/ 4.84 Center Register Rear
2002 GMC Sierra 2500 Pickup 8 Lug - All w/ 4.84 Center Register Rear
2002 GMC Yukon XL 2500 8 Lug - All w/ 4.84 Center Register Rear
2003 Chevrolet Avalanche 2500 8 Lug - All
2003 Chevrolet Silverado 2500 HD Pickup 8 Lug - All w/ 4.84 Center Register Rear
2003 Chevrolet Silverado 2500 Pickup 8 Lug - All w/ 4.84 Center Register Rear
2003 Chevrolet Suburban 2500 8 Lug - All w/ 4.84 Center Register Rear
2003 GMC Sierra 2500 HD Pickup 8 Lug - All w/ 4.84 Center Register Rear
2003 GMC Sierra 2500 Pickup 8 Lug - All w/ 4.84 Center Register Rear
2003 GMC Yukon XL 2500 8 Lug - All w/ 4.84 Center Register Rear
2004 Chevrolet Avalanche 2500 8 Lug - All
2004 Chevrolet Silverado 2500 HD Pickup 8 Lug - All w/ 4.84 Center Register Rear
2004 Chevrolet Silverado 2500 Pickup 8 Lug - All w/ 4.84 Center Register Rear
2004 Chevrolet Suburban 2500 8 Lug - All w/ 4.84 Center Register Rear
2004 GMC Sierra 2500 HD Pickup 8 Lug - All w/ 4.84 Center Register Rear
2004 GMC Sierra 2500 Pickup 8 Lug - All w/ 4.84 Center Register Rear
2004 GMC Yukon XL 2500 8 Lug - All w/ 4.84 Center Register Rear
2005 Chevrolet Avalanche 2500 8 Lug - All
2005 Chevrolet Silverado 2500 HD Pickup 8 Lug - All w/ 4.84 Center Register Rear
2005 Chevrolet Suburban 2500 8 Lug - All w/ 4.84 Center Register Rear
2005 GMC Sierra 2500 HD Pickup 8 Lug - All w/ 4.84 Center Register Rear
2005 GMC Yukon XL 2500 8 Lug - All w/ 4.84 Center Register Rear
2006 Chevrolet Avalanche 2500 8 Lug - All
2006 Chevrolet Silverado 2500 HD Pickup 8 Lug - All w/ 4.84 Center Register Rear
2006 Chevrolet Suburban 2500 8 Lug - All w/ 4.84 Center Register Rear
2006 GMC Sierra 2500 HD Pickup 8 Lug - All w/ 4.84 Center Register Rear
2006 GMC Yukon XL 2500 8 Lug - All w/ 4.84 Center Register Rear
2007 Chevrolet Silverado 2500 HD Pickup 8 Lug - Classic Style
2007 Chevrolet Silverado 2500 HD Pickup 8 Lug - New Style
2007 Chevrolet Suburban 2500 8 Lug - All
2007 GMC Sierra 2500 HD Pickup 8 Lug - Classic Style
2007 GMC Sierra 2500 HD Pickup 8 Lug - New Style
2007 GMC Yukon XL 2500 8 Lug - All
2008 Chevrolet Silverado 2500 HD Pickup 8 Lug - All
2008 Chevrolet Suburban 2500 8 Lug - All
2008 GMC Sierra 2500 HD Pickup 8 Lug - All
2008 GMC Yukon XL 2500 8 Lug - All
2009 Chevrolet Silverado 2500 HD Pickup 8 Lug - All
2009 Chevrolet Suburban 2500 8 Lug - All
2009 GMC Sierra 2500 HD Pickup 8 Lug - All
2009 GMC Yukon XL 2500 8 Lug - All
2010 Chevrolet Silverado 2500 HD Pickup 8 Lug - All
2010 Chevrolet Suburban 2500 8 Lug - All
2010 GMC Sierra 2500 HD Pickup 8 Lug - All
2010 GMC Yukon XL 2500 8 Lug - All
2011 Chevrolet Suburban 2500 8 Lug - All
2011 GMC Yukon XL 2500 8 Lug - All

Wilwood 140-9406 Specifications

KEY SPECS
MFG. Part #140-9406
BrandWilwood
PositionRear
Rotor Diameter16 Inch
Rotor TypeVented
Caliper PistonsSix
Caliper FinishPowder Coated
ColorBlack
Parking Brake ProvisionYes
Minimum Recommended Wheel Diameter20 Inch
Hardware IncludedYes
Rotor StylePlain Face
Front Rotor IncludedNo
Front Caliper IncludedNo
Rear Caliper IncludedYes
Front Spindles IncludedNo
Master Cylinder IncludedNo
Brake Booster IncludedNo
Brake Hoses IncludedNo
Rear Rotor IncludedYes
Bolt Pattern8 on 6.5"
GENERAL
Sold in QuantityKit
GTIN Code889545031805
NotesFits axle with 4.84 in. center register only.
Rotor Thickness1.38"
Offset0"
Axle Flange Offset0.00"
Mount TypeRadial
Total Piston Area5.40 sq. in.
Piston TypeStainless
Pad Area13.00 sq. in.
Pad Volume6.00 cu. in.
Brake Pad CompoundBP-10
Caliper TypeRadial
Rotor FinishPlain
Rotor Material TypeCast Iron
Vane Count60 Curved Vane
BeddedNo
BalancedYes
Hat TypeParking Brake Hat - Truck
Hat FinishBlack E-Coat
Hat Bolt Circle 18 x 6.50
Hat Material TypeIron
Hat Offset Dimension1.91"
Brake Lines IncludedNo
Caliper ColorBlack
Caliper Material TypeForged Aluminum
Parking Brake StyleInternal Drum
Rear Caliper ColorBlack
Rear Caliper MaterialForged Billet Aluminum
Rear Caliper Piston QuantitySix
Rear Rotor ConstructionVented
Rear Rotor Diameter16"
Rear Rotor StyleSlotted surface
Rear Rotor Thickness1.38"
