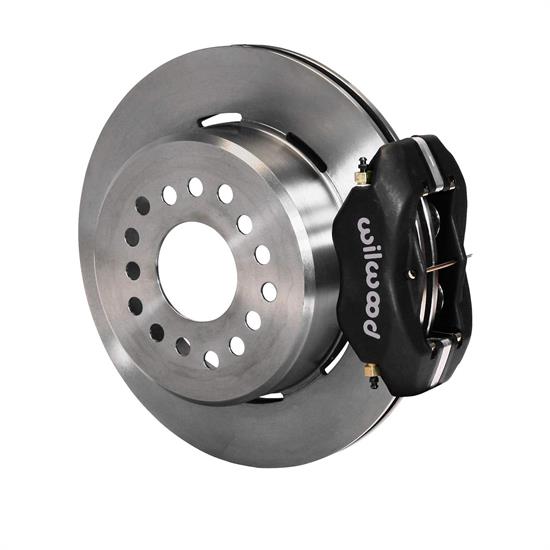

Wilwood 140-9315 FDLI Rear Brake Kit, 12 Bolt, 2.75 Off,Staggered Shock

-7%

#8351409315

Wilwood 140-9315 FDLI Rear Brake Kit, 12 Bolt, 2.75 Off,Staggered Shock

Name: Wilwood 140-9315 FDLI Rear Brake Kit, 12 Bolt, 2.75 Off,Staggered Shock
Brand: Wilwood
SKU: 8351409315
Price: 1132.36 USD
Availability: InStock

Write a Review

Ask a Question

Rotor / Caliper Type:

Undrilled

Drilled Drilled / Red Undrilled / Red

$1,132.36

/each

Factory Shipped

$1,225.36

Save $93.00

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

GM 8.875 Inch 12-Bolt Car, Rear Position, Powder Coated

See more details

Key Specs

MFG. Part #	140-9315
Position	Rear
Wheel Bolt Pattern (in.)	5x4.75 in.
Wheel Bolt Pattern (mm)	5x120.65 mm
Rotor Diameter	12.19 Inch

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-9315 Details

This group of FDLI Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

Charts

Installation Instructions (PDF)

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (8351409315)

Wilwood 140-9315 Specifications

KEY SPECS
MFG. Part #	140-9315
Brand	Wilwood
Position	Rear
Wheel Bolt Pattern (in.)	5x4.75 in.
Wheel Bolt Pattern (mm)	5x120.65 mm
Rotor Diameter	12.19 Inch
Rotor Type	Vented
Caliper Pistons	Four
Caliper Finish	Powder Coated
Parking Brake Provision	Yes
Minimum Recommended Wheel Diameter	15 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Slotted
Front Rotor Included	No
Front Caliper Included	No
Rear Caliper Included	Yes
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	Yes
Rear Rotor Included	Yes
Bolt Pattern	5 on 4.75"
Color	Black

GENERAL
GTIN Code	889545031713
Rotor Thickness	0.81"
Offset	2.75"
Axle Flange Offset	2.75"
Mount Type	Lug
Total Piston Area	3 sq. in.
Piston Type	Stainless
Pad Area	6.36 sq. in.
Pad Volume	2.1 cu. in.
Brake Pad Compound	BP-10
Caliper Type	Lug
Rotor Finish	Plain
Rotor Material Type	Iron
Vane Count	32 Straight Vane
Bedded	No
Balanced	No
Brake Lines Included	No
Caliper Color	Black
Caliper Material Type	Forged Aluminum

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1965-1970 Chevy Bel Air

1965-1970 Chevy Biscayne

1967-1972 Chevy Camaro

1966-1970 Chevy Caprice

1964-1972 Chevy Chevelle

1965-1968 Chevy Chevy II

1965-1972 Chevy El Camino

1965-1970 Chevy Impala

1964-1967 Chevy Malibu

1970-1972 Chevy Monte Carlo

1969-1972 Chevy Nova

1968-1970 Oldsmobile F85

1967-1972 Pontiac Firebird

1970-1972 Pontiac Grand Prix

1970-1972 Pontiac GTO

1970-1972 Pontiac LeMans
