Wilwood 140-8853-D FDL 11.44 Rear Drag Disc Brake Kit, 1961-89 Mopar
Wilwood 140-8853-D FDL 11.44 Rear Drag Disc Brake Kit, 1961-89 Mopar
Rear Position, Multi: 5 on 4.5" | 4.75" | 5" Bolt Pattern, 11.44 Inch Rotor Diameter, Gray
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle
Wilwood 140-8853-D FDL 11.44 Rear Drag Disc Brake Kit, 1961-89 Mopar
X
We estimate this item will ship on or before June 16th.
Part # 8351408853D
$525.88
$567.71
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
Details
Position:
Rear
Bolt Pattern:
Multi: 5 on 4.5" | 4.75" | 5"
Rotor Diameter:
11.44 Inch
Rotor Type:
Solid
Caliper Pistons:
Four
Caliper Finish:
Type III Anodized
Color:
Gray
MFG. Part #:
140-8853-D
Minimum Recommended Wheel Diameter:
15 Inch
Rotor Thickness:
0.35"
Offset:
2.5"
Mount Type:
Lug
Total Piston Area:
4.80 sq. in.
Piston Type:
Stainless
Pad Area:
6.36 sq. in.
Pad Volume:
2.10 cu. in.
Brake Pad Compound:
BP-10
Rotor Style:
Plain Face
Caliper Type:
Forged Dynalite
Rotor Finish:
Black Oxide
Rotor Material Type:
Steel
Vane Count:
None
Bedded:
No
Balanced:
No
Hat Type:
Drag Hat- Standard
Hat Finish:
Black E-Coat
Hat Bolt Circle 3:
5 x 5.00
Hat Bolt Circle 2:
5 x 4.75
Hat Bolt Circle 1:
5 x 4.50
Hat Material Type:
Aluminum
Hat Offset Dimension:
1.59"
GTIN Code:
889545030150
Info

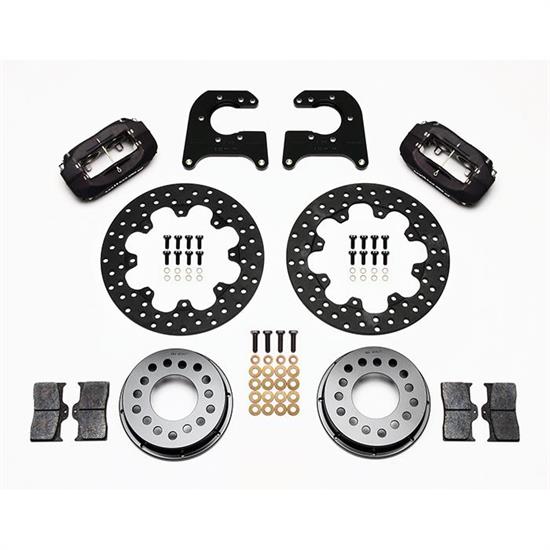

FDL Rear Drag kits are true bolt-on kits available for all popular muscle car rear axles and aftermarket rears built with custom axle ends. Kits in this group are purpose built for sportsman category door cars and others with full functional four-wheel disc brakes. Based on the specific style of housing end and axle offset, mounting kits securely install the four-piston forged Dynalite caliper over 3/8" plate steel rotors that are mounted to the axle with an aluminum hat. Standard kits include solid face rotors, with optional drilled rotor kits available to further reduce driveline weight in classes where every weight advantage is necessary.
Application
Chrysler Cordoba 1975-1983 AllChrysler Fifth Avenue 1983-1989 All
Chrysler Imperial 1974-1975 All
Chrysler Imperial 1981-1983 All
Chrysler Lebaron 1977-1981 All
Chrysler New Yorker 1974-1978 All
Chrysler New Yorker 1979-1982 All
Chrysler New Yorker 1983-1989 All RWD only
Chrysler Newport 1974-1978 All
Chrysler Newport 1979-1981 All
Chrysler Town & Country 1974-1978 All
Dodge 330 1963-1964 All
Dodge 440 1963-1964 All
Dodge A-Body 1965-1972 10 Inch Drum Brake Spindle
Dodge A-Body 1961-1972 9 Inch Drum Brake Spindle
Dodge A-Body 1973-1976 All
Dodge Aspen 1976-1980 All
Dodge B-Body 1962-1964 All
Dodge B-Body 1973-1979 All
Dodge B-Body 1966-1968 Disc Brake Spindle
Dodge B-Body 1970-1972 Disc Brake Spindle
Dodge B-Body 1969 Disc Brake Spindle
Early
Dodge B-Body 1969 Disc Brake Spindle
Late
Dodge B-Body 1970-1972 Drum Brake Front
Dodge B-Body 1965-1969 Drum Brake Spindle
Dodge Challenger 1973-1974 All
Dodge Challenger 1970-1972 Disc Brake Spindle
Dodge Challenger 1970-1972 Drum Brake Front
Dodge Charger 1973-1978 All
Dodge Charger 1975 All from 5/75
Dodge Charger 1975 All to 5/75
Dodge Charger 1966-1968 Disc Brake Spindle
Dodge Charger 1970-1972 Disc Brake Spindle
Dodge Charger 1969 Disc Brake Spindle
Early
Dodge Charger 1969 Disc Brake Spindle
Late
Dodge Charger 1970-1972 Drum Brake Front
Dodge Charger 1966-1969 Drum Brake Spindle
Dodge Coronet 1973-1976 All
Dodge Coronet 1966-1968 Disc Brake Spindle
Dodge Coronet 1970-1972 Disc Brake Spindle
Dodge Coronet 1969 Disc Brake Spindle
Early
Dodge Coronet 1969 Disc Brake Spindle
Late
Dodge Coronet 1970-1972 Drum Brake Front
Dodge Coronet 1965-1969 Drum Brake Spindle
Dodge Coronet Super Bee 1968 Disc Brake Spindle
Dodge Coronet Super Bee 1970-1971 Disc Brake Spindle
Dodge Coronet Super Bee 1969 Disc Brake Spindle
Early
Dodge Coronet Super Bee 1969 Disc Brake Spindle
Late
Dodge Coronet Super Bee 1970-1971 Drum Brake Front
Dodge Coronet Super Bee 1968-1969 Drum Brake Spindle
Dodge Dart 1965-1972 10 Inch Drum Brake Spindle
Dodge Dart 1963-1972 9 Inch Drum Brake Spindle
Dodge Dart 1973-1976 Disc Brake Spindle
Dodge Dart 1973-1976 Drum Brake Spindle
Dodge Dart Demon 1971-1972 10 Inch Drum Brake Spindle
Dodge Dart Demon 1971-1972 9 Inch Drum Brake Spindle
Dodge Dart Demon 1973-1976 All
Dodge Diplomat 1977-1989 All
Dodge E-Body 1973-1974 All
Dodge E-Body 1970-1972 Disc Brake Spindle
Dodge E-Body 1970-1972 Drum Brake Front
Dodge F-Body 1976-1980 All
Dodge J-Body 1980-1983 All
Dodge Lancer 1961-1962 9 Inch Drum Brake Spindle
Dodge Magnum 1978-1979 All
Dodge Mirada 1980-1983 All
Dodge Monaco 1974 All
Dodge Monaco 1978 All
Dodge Monaco 1977 All Except Royal
Dodge Monaco 1975-1976 All
Including Royal
Dodge Monaco 1977 Monaco Royal only
Dodge Polara 1962-1964 All
Dodge R/T 1976-1978 All
Dodge St. Regis 1979-1981 All
Magnum Force Spindle 9999 Magnum Force Spindle
Plymouth A-Body 1965-1972 10 Inch Drum Brake Spindle
Plymouth A-Body 1960-1972 9 Inch Drum Brake Spindle
Plymouth A-Body 1973-1976 All
Plymouth B-Body 1962-1964 All
Plymouth B-Body 1973-1979 All
Plymouth B-Body 1966-1968 Disc Brake Spindle
Plymouth B-Body 1970-1972 Disc Brake Spindle
Plymouth B-Body 1969 Disc Brake Spindle
Early
Plymouth B-Body 1969 Disc Brake Spindle
Late
Plymouth B-Body 1970-1972 Drum Brake Front
Plymouth B-Body 1965-1969 Drum Brake Spindle
Plymouth Barracuda 1965-1969 10 Inch Drum Brake Spindle
Plymouth Barracuda 1964-1969 9 Inch Drum Brake Spindle
Plymouth Barracuda 1973-1974 All
Plymouth Barracuda 1970-1972 Disc Brake Spindle
Plymouth Barracuda 1970-1972 Drum Brake Front
Plymouth Belvedere 1962-1964 All
Plymouth Belvedere 1966-1968 Disc Brake Spindle
Plymouth Belvedere 1970 Disc Brake Spindle
Plymouth Belvedere 1969 Disc Brake Spindle
Early
Plymouth Belvedere 1969 Disc Brake Spindle
Late
Plymouth Belvedere 1970 Drum Brake Front
Plymouth Belvedere 1965-1969 Drum Brake Spindle
Plymouth Caravelle 1982-1984 All
Plymouth Caravelle 1985 All RWD only
Plymouth Duster 1970-1972 10 Inch Drum Brake Spindle
Plymouth Duster 1970-1972 9 Inch Drum Brake Spindle
Plymouth Duster 1973-1976 All
Plymouth E-Body 1973-1974 All
Plymouth E-Body 1970-1972 Disc Brake Spindle
Plymouth E-Body 1970-1972 Drum Brake Front
Plymouth F-Body 1976-1980 All
Plymouth Fury 1962-1964 All
Plymouth Fury 1974 All
Plymouth Fury 1978 All
Plymouth Fury 1975-1977 Except Gran Fury
Plymouth Gran Fury 1975-1977 Gran Fury Only
Plymouth GTX 1973-1975 All
Plymouth GTX 1967-1968 Disc Brake Spindle
Plymouth GTX 1970-1972 Disc Brake Spindle
Plymouth GTX 1969 Disc Brake Spindle
Early
Plymouth GTX 1969 Disc Brake Spindle
Late
Plymouth GTX 1970-1972 Drum Brake Front
Plymouth GTX 1967-1969 Drum Brake Spindle
Plymouth J-Body 1980-1983 All
Plymouth Roadrunner 1973-1980 All
Plymouth Roadrunner 1968 Disc Brake Spindle
Plymouth Roadrunner 1970-1972 Disc Brake Spindle
Plymouth Roadrunner 1969 Disc Brake Spindle
Early
Plymouth Roadrunner 1969 Disc Brake Spindle
Late
Plymouth Roadrunner 1970-1972 Drum Brake Front
Plymouth Roadrunner 1968-1969 Drum Brake Spindle
Plymouth Satellite 1973-1974 All
Plymouth Satellite 1966-1968 Disc Brake Spindle
Plymouth Satellite 1970-1972 Disc Brake Spindle
Plymouth Satellite 1969 Disc Brake Spindle
Early
Plymouth Satellite 1969 Disc Brake Spindle
Late
Plymouth Satellite 1970-1972 Drum Brake Front
Plymouth Satellite 1965-1969 Drum Brake Spindle
Plymouth Savoy 1962-1964 All
Plymouth Scamp 1973-1976 All
Plymouth Valiant 1965-1972 10 Inch Drum Brake Spindle
Plymouth Valiant 1960-1972 9 Inch Drum Brake Spindle
Plymouth Valiant 1973-1976 Disc Brake Spindle
Plymouth Valiant 1973-1976 Drum Brake Spindle
Plymouth Volare 1976-1980 All
