Wilwood 140-8528-DR DPR 12.19 Front Disc Brake Kit, 02-Up Mini Cooper

$116 Off

#8351408528DR

Wilwood 140-8528-DR DPR 12.19 Front Disc Brake Kit, 02-Up Mini Cooper

Name: Wilwood 140-8528-DR DPR 12.19 Front Disc Brake Kit, 02-Up Mini Cooper
Brand: Wilwood
SKU: 8351408528DR
Price: 1407.18 USD
Availability: InStock

Write a Review

Ask a Question

Rotor / Caliper Type:

Drilled / Red

Undrilled Drilled

$1,407.18

/each

Factory Shipped

$1,522.74

Save $115.56

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 12.19 Inch Rotor Diameter, Red

See more details

Key Specs

MFG. Part #	140-8528-DR
Position	Front
Rotor Diameter	12.19 Inch
Rotor Type	Vented
Caliper Pistons	Four

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-8528-DR Details

Radial mounting provides secure and accurate installation of the forged billet DynaPro four piston caliper with large diameter rotors for this group of front and all wheel drive sport compacts. These kits are the perfect compliment to wheel, tire, and suspension upgrades on daily drivers, competition vehicles, and custom styled show machines. Each kit is engineered specific for each vehicle to maintain full compatibility with the OE master cylinder output and factory ABS functions. Optional caliper finishes and rotor designs provide choices that enable the builder to personalize the style and optimize brake performance.

Application

2002 Mini Cooper Coupe, including Cooper S
2003 Mini Cooper Coupe, including Cooper S
2004 Mini Cooper Coupe, including Cooper S
2005 Mini Cooper Coupe, including Cooper S
2006 Mini Cooper Coupe, including Cooper S
2007 Mini Cooper Convertible
2007 Mini Cooper Coupe, including Cooper S
2008 Mini Cooper 2 Dr / 3 Dr Hatchback, including Cooper S
2008 Mini Cooper Convertible
2009 Mini Cooper 2 Dr / 3 Dr Hatchback, including Cooper S
2009 Mini Cooper Convertible
2010 Mini Cooper 2 Dr / 3 Dr Hatchback, including Cooper S
2010 Mini Cooper Convertible
2011 Mini Cooper 2 Dr / 3 Dr Hatchback (4 Lug)
2011 Mini Cooper Convertible (4 lug)
2011 Mini Cooper Cooper S (4 Lug)
2012 Mini Cooper 2 Dr / 3 Dr Hatchback (4 Lug)
2012 Mini Cooper Convertible (4 lug)
2012 Mini Cooper Cooper S (4 Lug)
2013 Mini Cooper 2 Dr / 3 Dr Hatchback (4 Lug)
2013 Mini Cooper Convertible (4 lug)
2013 Mini Cooper Cooper S (4 Lug)

Charts

Installation Instructions (PDF)

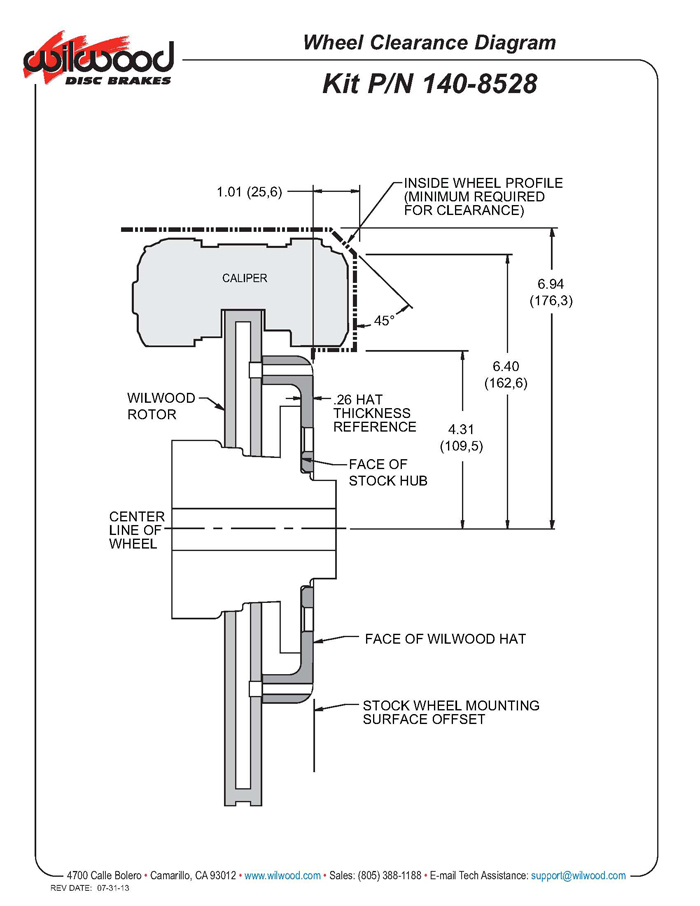

Wheel Clearance Diagram (JPG)

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (8351408528DR)

Wilwood 140-8528-DR Specifications

KEY SPECS
MFG. Part #	140-8528-DR
Brand	Wilwood
Position	Front
Rotor Diameter	12.19 Inch
Rotor Type	Vented
Caliper Pistons	Four
Caliper Finish	Powder Coated
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	15 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Drilled & Slotted
Spindle Type	Factory Disc Spindle
Front Rotor Included	Yes
Front Rotor Diameter	12.19 Inch
Front Caliper Included	Yes
Rear Caliper Included	No
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	Yes
Rear Rotor Included	No
Color	Red
Bolt Pattern	4 on 100mm
Front Caliper Piston Quantity	4
Front Caliper Finish	Powder Coated

GENERAL
GTIN Code	889545024746
Rotor Thickness	0.81"
Stud Diameter	0.64"
Mount Type	Radial
Total Piston Area	3.00 sq. in.
Piston Type	Aluminum
Pad Area	6.36 sq. in.
Pad Volume	3 cu. in.
Brake Pad Compound	BP-10
Caliper Type	Radial
Rotor Finish	Black E-Coat
Rotor Material Type	Iron
Vane Count	32 Straight Vane
Bedded	No
Balanced	No
Hat Type	Big Brake Hat - Short Offset
Hat Finish	Black E-Coat
Hat Material Type	Aluminum
Hat Offset Dimension	0.83"
Brake Lines Included	No
Caliper Color	Red
Caliper Material Type	Forged Aluminum
Hat Bolt Circle 1	4 x 3.93

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

2002-2015 Mini Cooper
