Wilwood 140-8337-D FNSL6R 12.88 Front Disc Brake Kit, 1988-96 Corvette

$182 Off

Wilwood 140-8337-D FNSL6R 12.88 Front Disc Brake Kit, 1988-96 Corvette
Wilwood

|

#8351408337D

Wilwood 140-8337-D FNSL6R 12.88 Front Disc Brake Kit, 1988-96 Corvette

Rotor / Caliper Type:

Drilled

Drilled / RedUndrilled / Red

$2,216.93

/each

Factory Shipped

$2,399.00

Save $182.07


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 12.88 Inch Rotor Diameter

    See more details

    Key Specs

    MFG. Part #140-8337-D
    PositionFront
    Rotor Diameter12.88 Inch
    Rotor TypeVented
    Caliper PistonsSix
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    Wilwood 140-8337-D Details

    The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this group of 13"-14" big rotor kits for these popular late model vehicles. FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades on show cars and high performance street/track machines. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application.

    Installation Instructions (PDF)

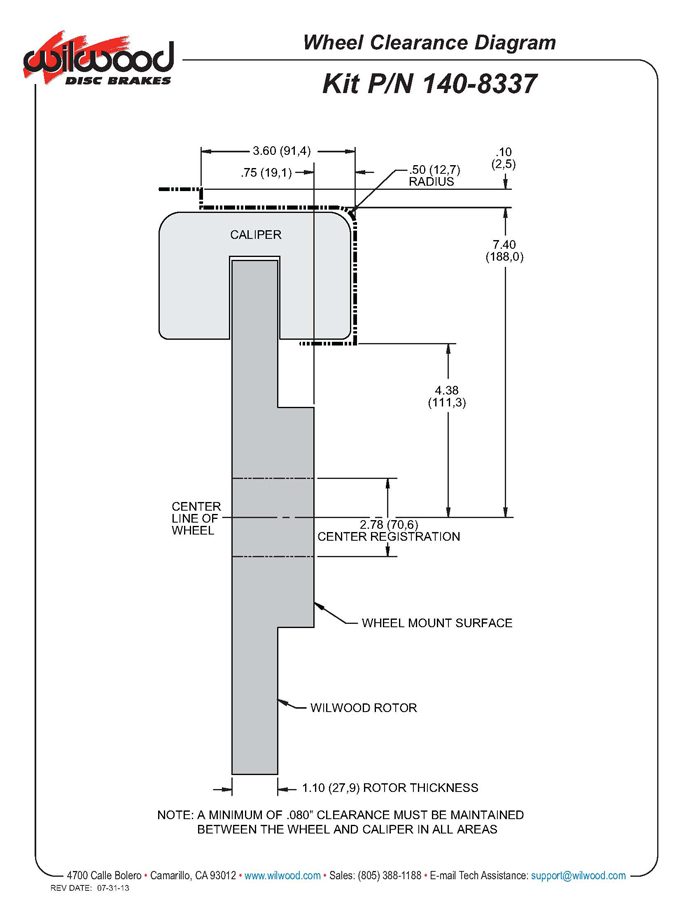

    Wheel Clearance Diagram

    Application

    1988 Chevrolet Corvette C-4 w/ HD Brake Option 13" Rotor
    1988 Chevrolet Corvette C-4 w/ STD Brake Option 12" Rotor
    1989 Chevrolet Corvette C-4 w/ HD Brake Option 13" Rotor
    1989 Chevrolet Corvette C-4 w/ STD Brake Option 12" Rotor
    1990 Chevrolet Corvette C-4 w/ HD Brake Option 13" Rotor
    1990 Chevrolet Corvette C-4 w/ STD Brake Option 12" Rotor
    1991 Chevrolet Corvette C-4 w/ HD Brake Option 13" Rotor
    1991 Chevrolet Corvette C-4 w/ STD Brake Option 12" Rotor
    1992 Chevrolet Corvette C-4 w/ HD Brake Option 13" Rotor
    1992 Chevrolet Corvette C-4 w/ STD Brake Option 12" Rotor
    1993 Chevrolet Corvette C-4 w/ HD Brake Option 13" Rotor
    1993 Chevrolet Corvette C-4 w/ STD Brake Option 12" Rotor
    1994 Chevrolet Corvette C-4 w/ HD Brake Option 13" Rotor
    1994 Chevrolet Corvette C-4 w/ STD Brake Option 12" Rotor
    1995 Chevrolet Corvette C-4 w/ HD Brake Option 13" Rotor
    1995 Chevrolet Corvette C-4 w/ STD Brake Option 12" Rotor
    1996 Chevrolet Corvette C-4 w/ HD Brake Option 13" Rotor
    1996 Chevrolet Corvette C-4 w/ STD Brake Option 12" Rotor

    Specs

    Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

    Wilwood 140-8337-D Specifications

    KEY SPECS
    MFG. Part #140-8337-D
    BrandWilwood
    PositionFront
    Rotor Diameter12.88 Inch
    Rotor TypeVented
    Caliper PistonsSix
    Caliper FinishPowder Coated
    Parking Brake ProvisionNo
    Minimum Recommended Wheel Diameter17 Inch
    Rotor ShapeRound
    Hardware IncludedYes
    Rotor StyleDrilled & Slotted
    Spindle TypeFactory Disc Spindle
    Front Rotor IncludedYes
    Front Rotor Diameter12.19 in./309.63mm
    Front Caliper IncludedYes
    Rear Caliper IncludedNo
    Front Spindles IncludedNo
    Master Cylinder IncludedNo
    Brake Booster IncludedNo
    Brake Hoses IncludedYes
    Rear Rotor IncludedNo
    ColorBlack
    Bolt Pattern5 on 4.5" | 4.75"
    GENERAL
    GTIN Code889545024616
    Rotor Thickness1.1"
    Stud Diameter0.56"
    Mount TypeRadial
    Total Piston Area4.04 sq. in.
    Piston TypeStainless
    Pad Area8.20 sq. in.
    Pad Volume3.8 cu. in.
    Brake Pad CompoundBP-10
    Caliper TypeForged Narrow Superlite 6R
    Rotor FinishBlack E-Coat
    Rotor Material TypeCast Iron
    Vane Count48 Curved Vane
    BeddedNo
    BalancedNo
    Hat TypeBig Brake Hat - Short Offset
    Hat FinishBlack E-Coat
    Hat Material TypeAluminum
    Hat Offset Dimension0.88"
    Hat Bolt Circle 15 x 4.50
    Hat Bolt Circle 25 x 4.75
    Stud Diameter 20.52"
