Wilwood 140-7676-DR FDLI 12.19 Inch Front Disc Brake Kit, 1955-57 Chevy

$119 Off

#8351407676DR

Wilwood 140-7676-DR FDLI 12.19 Inch Front Disc Brake Kit, 1955-57 Chevy

Name: Wilwood 140-7676-DR FDLI 12.19 Inch Front Disc Brake Kit, 1955-57 Chevy
Brand: Wilwood
SKU: 8351407676DR
Price: 1450.3 USD
Availability: InStock

Write a Review

Ask a Question

Rotor / Caliper Type:

Drilled / Red

Undrilled Drilled Drilled / PolishedUndrilled / Red

$1,450.30

/each

Factory Shipped

$1,569.40

Save $119.10

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 12.19 Inch Rotor Diameter, Red

See more details

Key Specs

MFG. Part #	140-7676-DR
Position	Front
Rotor Diameter	12.19 Inch
Rotor Type	Vented
Caliper Pistons	Four

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-7676-DR Details

FDLI Big Brake Front Hub Kits provide the added advantage of larger diameter brake rotors for traditional non-ABS spindles on American muscle cars and vintage rods. Forged billet Dynalite calipers, 12.19" diameter rotors, and high performance Wilwood brake pads generate big brake stopping power to compliment wheel, tire, and suspension upgrades on all types of custom show and performance street / strip machines. A full range of options for caliper finish and rotor design provide custom builders with the ability to personalize the style and performance requirements of the mildest to the wildest machines.

Application

1955 Chevrolet One-Fifty Series All, w/ OE Drum Brake Spindle
1955 Chevrolet Two-Ten Series All, w/ OE Drum Brake Spindle
1956 Chevrolet One-Fifty Series All, w/ OE Drum Brake Spindle
1956 Chevrolet Two-Ten Series All, w/ OE Drum Brake Spindle
1957 Chevrolet One-Fifty Series All, w/ OE Drum Brake Spindle
1957 Chevrolet Two-Ten Series All, w/ OE Drum Brake Spindle

Charts

Installation Instructions (PDF)

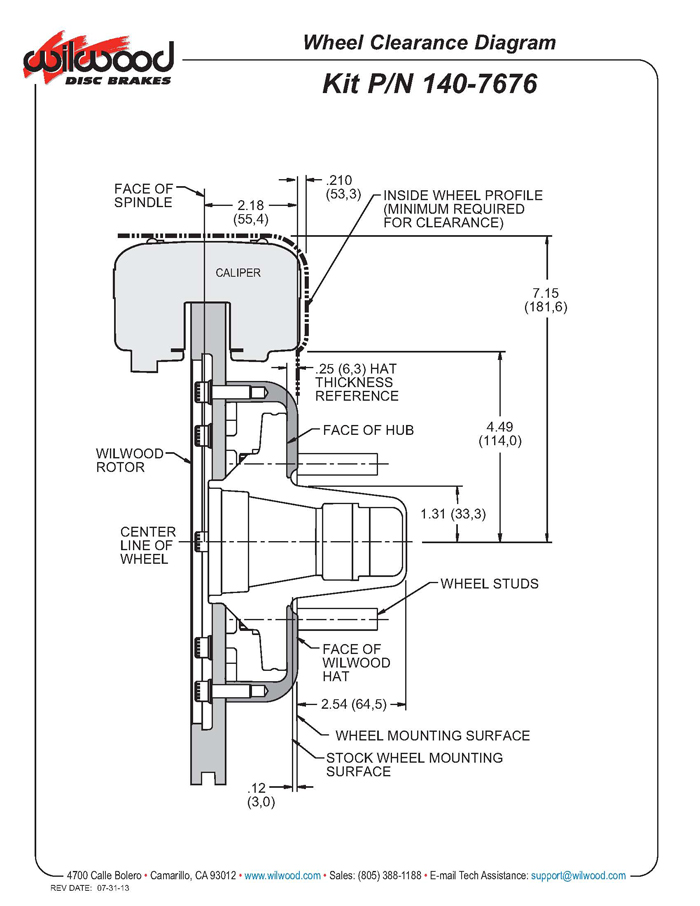

Wheel Clearance Diagram (JPG)

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (8351407676DR)

Wilwood 140-7676-DR Specifications

KEY SPECS
MFG. Part #	140-7676-DR
Brand	Wilwood
Position	Front
Rotor Diameter	12.19 Inch
Rotor Type	Vented
Caliper Pistons	Four
Caliper Finish	Powder Coated
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	15 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Drilled & Slotted
Spindle Type	Factory Drum Spindle
Front Rotor Included	Yes
Front Rotor Diameter	12.19 Inch
Front Caliper Included	Yes
Rear Caliper Included	No
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	Yes
Rear Rotor Included	No
Color	Red
Bolt Pattern	5 on 4.5" \| 4.75"
Front Caliper Piston Quantity	4
Front Caliper Finish	Powder Coated

GENERAL
GTIN Code	889545024173
Rotor Thickness	0.81"
Stud Diameter	0.52"
Front Suspension Type	IFS
Mount Type	Lug
OE Hub Offset	0.23"
Total Piston Area	4.80 sq. in.
Piston Type	Stainless
Pad Area	6.36 sq. in.
Pad Volume	2.1 cu. in.
Brake Pad Compound	BP-10
Caliper Type	Lug
Rotor Finish	Black E-Coat
Rotor Material Type	Iron
Vane Count	32 Straight Vane
Bedded	No
Balanced	No
Hat Type	Big Brake Hat - Short Offset
Hat Finish	Black E-Coat
Hat Material Type	Aluminum
Hat Offset Dimension	1.43"
Brake Lines Included	No
Caliper Color	Red
Caliper Material Type	Forged Aluminum
Hat Bolt Circle 1	5 x 4.50
Hat Bolt Circle 2	5 x 4.75
Stud Diameter 2	0.52"

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1955-1957 Chevy Bel Air

1955-1957 Chevy One-Fifty Series

1955-1957 Chevy Two-Ten Series
