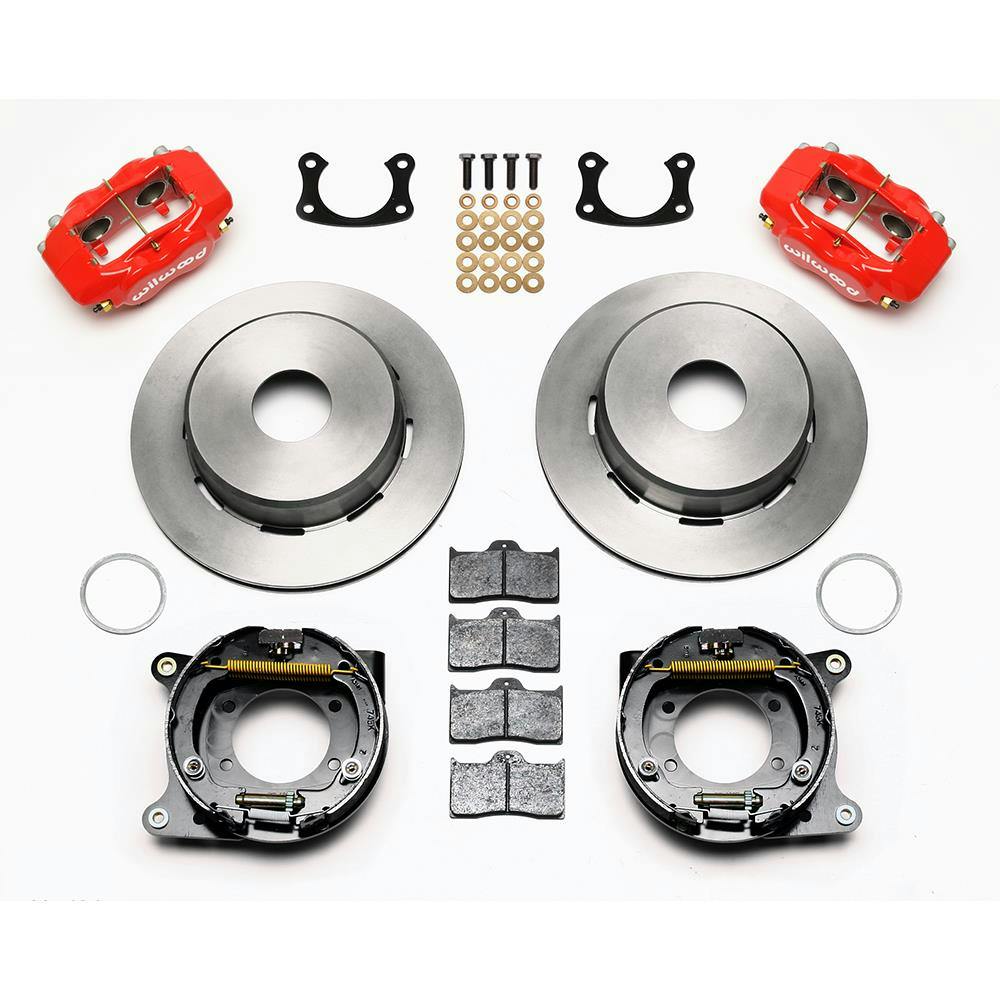

Wilwood 140-7150-R Forged Dynalite Rear E-Brake Kit

$127 Off

Wilwood 140-7150-R Forged Dynalite Rear E-Brake Kit
Wilwood

|

#8351407150R

Wilwood 140-7150-R Forged Dynalite Rear E-Brake Kit

  • This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake
  • Forged billet Dynalite four piston calipers
  • One-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines
See More

Rotor / Caliper Type:

Undrilled / Red

Drilled / RedUndrilled

$1,059.43

/each

Factory Shipped

$1,186.56

Save $127.13


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Ford 9 Inch, Rear Position, 12.19 Inch Rotor Diameter

  • This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake
  • Forged billet Dynalite four piston calipers
  • One-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines
  • The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking
  • Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application
See more details

Key Specs

MFG. Part #140-7150-R
PositionRear
Wheel Bolt Pattern (in.)Blank
Rotor Diameter12.19 Inch
Rotor TypeVented
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-7150-R Details

  • This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake
  • Forged billet Dynalite four piston calipers, 12
  • 19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines
  • The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking
  • Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Wilwood 140-7150-R Specifications

KEY SPECS
MFG. Part #140-7150-R
BrandWilwood
PositionRear
Wheel Bolt Pattern (in.)Blank
Rotor Diameter12.19 Inch
Rotor TypeVented
Caliper PistonsFour
Caliper FinishPowder Coated
ColorRed
Parking Brake ProvisionYes
Minimum Recommended Wheel Diameter15 Inch
Rotor ShapeRound
Hardware IncludedYes
Rotor StylePlain Face
Front Rotor IncludedNo
Front Caliper IncludedNo
Rear Caliper IncludedYes
Front Spindles IncludedNo
Master Cylinder IncludedNo
Brake Booster IncludedNo
Brake Hoses IncludedNo
Ford Bearing End StyleBig Ford New Style (Torino)
Rear Rotor IncludedYes
Bolt PatternBlank
GENERAL
Sold in QuantityKit
GTIN Code889545023923
NotesRotor hats are blank and will require drilling for the application bolt circle and stud size.
Rotor Thickness0.81"
Axle Flange Offset2.50"
Mount TypeLug
Total Piston Area3 sq. in.
Piston TypeStainless
Pad Area6.36 sq. in.
Pad Volume2.1 cu. in.
Brake Pad CompoundBP-10
Caliper TypeLug
Rotor FinishPlain
Rotor Material TypeIron
Vane Count32 Straight Vane
BeddedNo
BalancedNo
Brake Lines IncludedNo
Caliper ColorRed
Caliper Material TypeForged Aluminum
Parking Brake StyleInternal Drum
Rear Caliper ColorRed
Rear Caliper MaterialForged Billet Aluminum
Rear Caliper Piston QuantityFour
Rear Rotor ConstructionVented
Rear Rotor Diameter12.19"
Rear Rotor StyleSolid surface
Rear Rotor Thickness0.81"
