Part # 8351407148DR

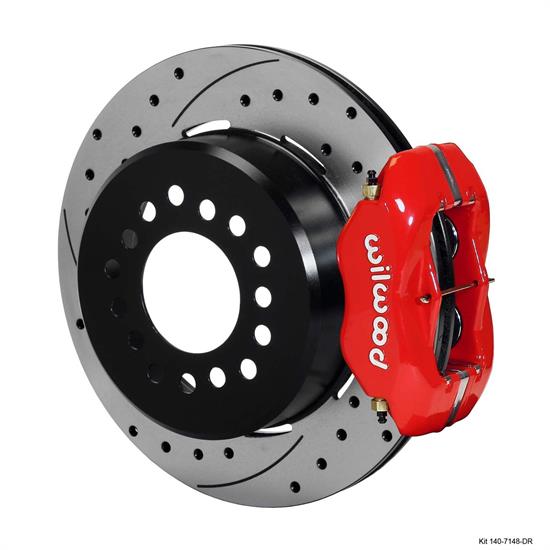

Wilwood 140-7148-DR FDLI Rear Disc Brake Kit, 1993-97 Camaro/Firebird

by

|

$942.49

each

Factory Shipped

$945.84

Save $3.35

This part will be shipped by the manufacturer. We estimate this item will ship on or before November 19th.


Quantity

Select a vehicle to verify Fitment

Product Summary

Rear Position, 5 on 4.75" Bolt Pattern, Powder Coated

    Key Specs

    MFG. Part #140-7148-DR
    BrandWilwood
    PositionRear
    Rotor Diameter12.19 Inch
    Rotor TypeVented

    Need To Know

    This Product Will Ship Free

    Need help? Call 800.979.0122

    Quick and Easy Returns

    Details

    This group of FDLI Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

    Application

    1993 Chevrolet Camaro Disc Brake Rear
    1993 Chevrolet Camaro Drum Brake Rear
    1993 Pontiac Firebird Disc Brake Rear
    1993 Pontiac Firebird Drum Brake Rear
    1994 Chevrolet Camaro Disc Brake Rear
    1994 Chevrolet Camaro Drum Brake Rear
    1994 Pontiac Firebird Disc Brake Rear
    1994 Pontiac Firebird Drum Brake Rear
    1995 Chevrolet Camaro Disc Brake Rear
    1995 Chevrolet Camaro Drum Brake Rear
    1995 Pontiac Firebird Disc Brake Rear
    1995 Pontiac Firebird Drum Brake Rear
    1996 Chevrolet Camaro Disc Brake Rear
    1996 Chevrolet Camaro Drum Brake Rear
    1996 Pontiac Firebird Disc Brake Rear
    1996 Pontiac Firebird Drum Brake Rear
    1997 Chevrolet Camaro Disc Brake Rear
    1997 Chevrolet Camaro Drum Brake Rear
    1997 Pontiac Firebird Disc Brake Rear
    1997 Pontiac Firebird Drum Brake Rear

    Charts

    Specifications

    KEY SPECS
    MFG. Part #140-7148-DR
    BrandWilwood
    PositionRear
    Rotor Diameter12.19 Inch
    Rotor TypeVented
    GENERAL
    Bolt Pattern5 on 4.75"
    Caliper PistonsFour
    Caliper FinishPowder Coated
    ColorRed
    Parking Brake ProvisionYes
    Minimum Recommended Wheel Diameter15 Inch
    Rotor Thickness0.81"
    Offset2.75"
    Mount TypeLug
    Total Piston Area3.00 sq. in.
    Piston TypeStainless
    Pad Area6.36 sq. in.
    Pad Volume2.10 cu. in.
    Brake Pad CompoundBP-10
    Rotor StyleDrilled and Slotted
    Caliper TypeForged Dynalite
    Rotor FinishBlack E-Coat
    Rotor Material TypeSpec-37 Iron
    Vane Count32 Straight Vane
    BeddedNo
    BalancedNo
    GTIN Code889545023794
    Front Rotor IncludedNo
    Rear Rotor IncludedYes
    Front Caliper IncludedNo
    Rear Caliper IncludedYes
    Front Spindles IncludedNo
    Master Cylinder IncludedNo
    Brake Booster IncludedNo
