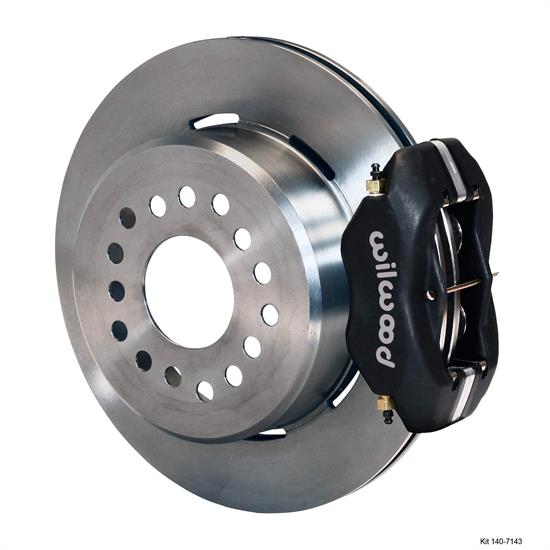

Wilwood 140-7143 Rear Disc Parking Brake Kit, Ford 9 Inch, 2.66 Offset
Ford 9", Rear Position, Multi: 5 on 5" | 4.75" | 4.50" Bolt Pattern, 12.19 Inch Rotor Diameter
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Wilwood Dynalite rear brake kits combine high performance braking, high-tech style, and functional simplicity for rear axle disc brake conversions that require a parking brake. Whether its a simple conversion from drum brakes, or an upgrade to compliment wheels, tires or suspension equipment, these kits have it all.
The emergency brake functions as a drum brake hidden within the mounting hat of the rotor for a clean installation. E-brake cables sold separately. Caliper has a 1/8" npt inlet.
- Big 12.19" x .810" one-piece vented rotors
- Rotors drilled to accept 5 on 4-1/2", 5 on 4-3/4" and 5 on 5" bolt patterns
- Forged billet four-piston calipers
- BP-10 Smart pads for a quick response and fade resistance
- Aluminum mounting brackets
- Includes all hardware
835-1407143 Instructions (PDF)

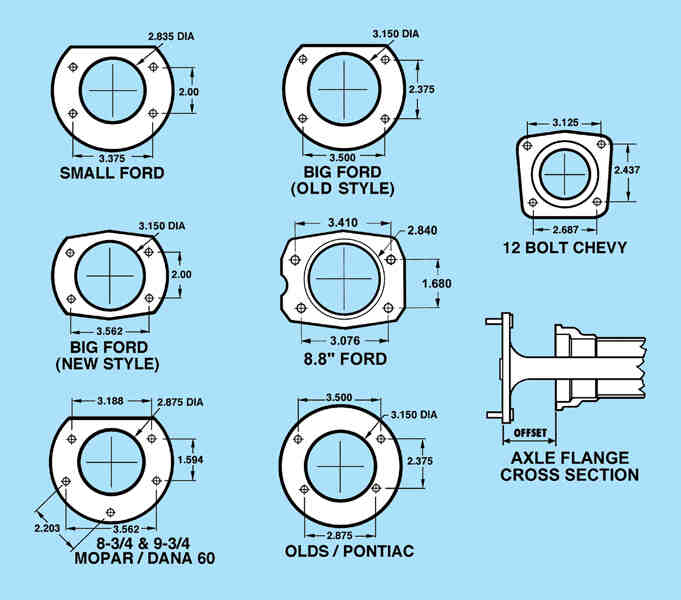

Item DetailsSmall Ford, 2.66" offset
Includes Emergency Brake
NotesNote: Kit fits some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
- Ultralite HP 32 Curved Vane Vented Rotor - 12.19" x .810"
- Forged billet Dynalite four-piston calipers
- Piston Area (in²): 3
- 1/8" NPT inlet
- Minimum Wheel Diameter (in): 15
- BP-10 Smart pads
- Aluminum mounting brackets and hardware
Rotors for each kit are drilled to accept 5 x 4-1/2", 5 x 4-3/4", and 5 x 5" bolt patterns
