Ford 9 Inch, Rear Position, 12.19 Inch Rotor Diameter
| MFG. Part # | 140-7140 |
| Position | Rear |
| Wheel Bolt Pattern (in.) | 5x4.5 in. | 5x4.75 in. |
| Wheel Bolt Pattern (mm) | 5x114.3 mm | 5x120.65 mm |
| Rotor Diameter | 12.19 Inch |
Need help?
855.313.9176Quick and Easy Returns

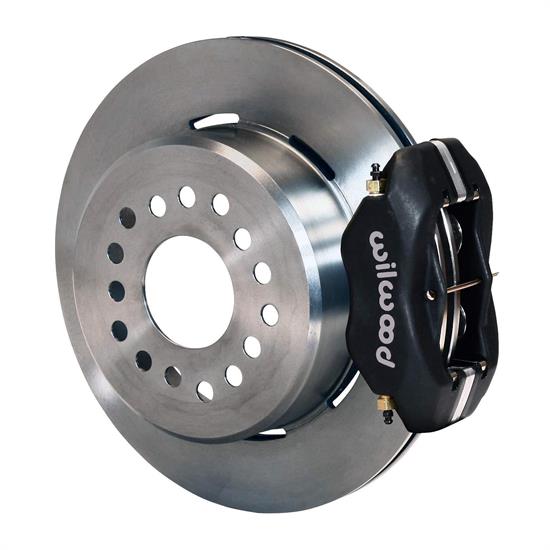

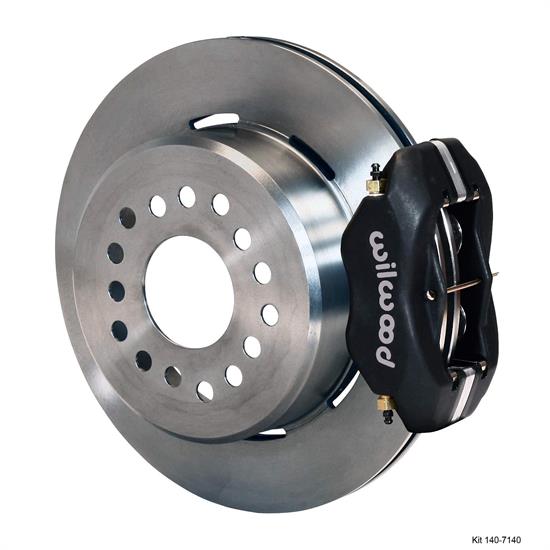

Return PolicyDisc brakes offer advantages over traditional drum brakes. Better stopping power, less fade and ease of maintenance make discs superior in every way. Today’s average family sedan can stop from 60 MPH in 120 feet, at nearly 1G of deceleration. You need the same stopping power. Your passengers, you and your ride deserve the confidence of Wilwood disc brakes and this kit delivers that confidence, every time.
Wilwood has designed a simple solution for upgrading the braking capability of your classic ride or popular high-performance street machines with bolt-on conversion rear disc brake kits! Inside this brake kit package, you'll receive precision machined parts made and tested specifically for your vehicle, brake pad characteristics designed to perform with your factory or aftermarket wheels, and all mounting hardware you'll need for a quick installation. With every Wilwood kit, you receive the benefit of over 44 years of engineering experience, detailed instructions and USA-made quality.
Whether you're looking to upgrade your classic or seeking an upgrade over OEM for your modern ride, Wilwood has the technology and experience to make sure you get the most out of every braking system.
Wilwood rear brake kits combine high performance braking, high-tech style, and functional simplicity for rear axle disc brake conversions that require a parking brake.
The emergency brake functions as a drum brake hidden within the mounting hat of the rotor for a clean installation. E-brake cables sold separately. Caliper has a 1/8" npt inlet.

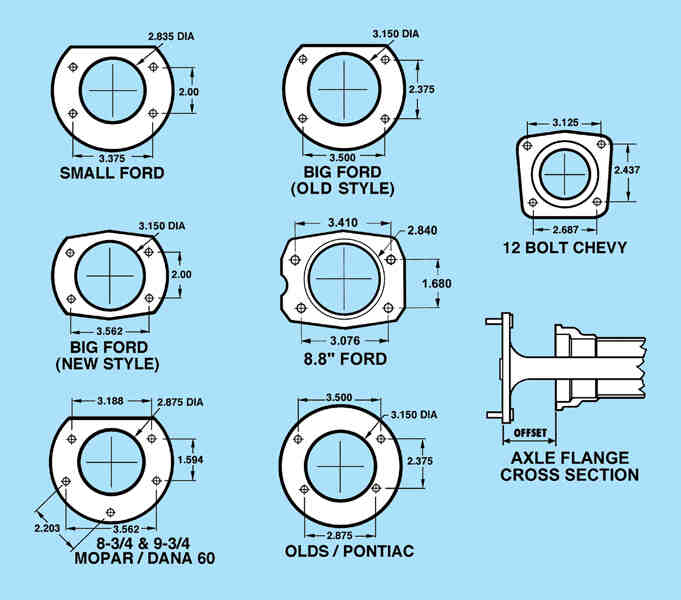

Big Ford, new style, 2-1/2" offset
Includes Emergency Brake
Charts
Specs
Guides & Documents
CA WARNING:
Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov
| KEY SPECS | |
|---|---|
| MFG. Part # | 140-7140 |
| Brand | Wilwood |
| Position | Rear |
| Wheel Bolt Pattern (in.) | 5x4.5 in. | 5x4.75 in. |
| Wheel Bolt Pattern (mm) | 5x114.3 mm | 5x120.65 mm |
| Rotor Diameter | 12.19 Inch |
| Rotor Type | Vented |
| Caliper Pistons | Four |
| Caliper Finish | Powder Coated |
| Parking Brake Provision | Yes |
| Minimum Recommended Wheel Diameter | 15 Inch |
| Rotor Shape | Round |
| Hardware Included | Yes |
| Rotor Style | Plain Face |
| Front Rotor Included | No |
| Front Rotor Diameter | 12.19 Inch |
| Front Caliper Included | No |
| Rear Caliper Included | Yes |
| Front Spindles Included | No |
| Master Cylinder Included | No |
| Brake Booster Included | No |
| Brake Hoses Included | No |
| Ford Bearing End Style | Big Ford New Style (Torino) |
| Rear Rotor Included | Yes |
| Color | Black |
| Bolt Pattern | 5x4.5 | 5x4.75 | 5x5 |
| Front Caliper Piston Quantity | 4 |
| Front Caliper Finish | Powder Coated |
| GENERAL | |
| Sold in Quantity | Kit |
| Notes | Includes rotors, calipers, pads, hardware, and parking brake assemblies. |
| GTIN Code | 889545023312 |
| Rotor Thickness | 0.81" |
| Axle Flange Offset | 2.50" |
| Mount Type | Lug |
| Caliper Type | Lug |
| Rotor Material Type | Iron |
| Brake Lines Included | No |
| Caliper Color | Black |
| Caliper Material Type | Forged Aluminum |
5
8 Reviews
Customers consistently praise the quality and performance of this brake kit. They're specifically appreciated for their easy installation and reliable functionality. Notably, users have highlighted the braking power, easy bleed system, and the beneficial inclusion of an emergency brake. The product's rotational clearance spec is particularly impressive; contrary to initial expectations, users found ample clearance. Some customers have had to make minor adjustments for perfect fit, but the process was straightforward due to the provided spacers. A main highlight is the product's superior quality compared to competitor brake kits. This is truly a top-notch brake kit choice.
5
8 reviews
5
8
4
0
3
0
2
0
1
0
Filter by Ratings
Yes
5.0
2 years ago
Turtle
Calgary Alberta CA
Verified
ALL GOOD
Would Recommend
Great brakes
5.0
5 years ago
Mike
Kansas City Mo
Verified
Used them for my t bucket
Would Recommend
This is my Fourth set
5.0
5 years ago
Movie car Frank
Ca
Verified
Great working brakes easy to bleed
Would Recommend
I like what I got
5.0
6 years ago
Jumpster
Tehachapi Ca
Verified
So far so good
Would Recommend
Another quality brake kit from Speedwsy and Wilwood
5.0
6 years ago
Decodan
SE MO
Verified
Fabbing a 9" for a project. Easy peazy.
Would Recommend
looks good, works great. Bolted up easy.
5.0
9 years ago
Never give up, Never surrender.
Madison Wisconsin
Verified
Rotational clearance spec is wrong. Went from "may not fit inside wheels" to "Got tons of clearance"
Would Recommend
Wilwood 140-7140 Rear Disc Brake Kit, Big Ford 9 Inch New 2-
5.0
10 years ago
Don C
Port Orange, Fl.
Verified
Great product and great service from Speedway motors
Would Recommend
Nice Brake kit, I needed to do some mach
5.0
13 years ago
Cooter
Pennsylvania, USA
Bought this brake kit with emergency brake because an emergency brake is always a good thing. And because Pennsylvania requires it in a street rod. My 9inch ford has a 2 1/2" offset and, I double checked it.... Put it all together all went easy and smooth. Last piece i tried installing was the caliper. And it rubs the outside of rotor. There is a spacer under the caliper bracket held on by 3 bolts. I removed it and had 1/8" shaved off of it. Then with using the spacers provided with the kit i got the caliper lined up where it should be. Rotor right in the center. Thanks Speedway and Wilwood Disc Brakes.
Would Recommend
Showing 8 of 8 reviews
7 Questions • 7 Answers
Will this brake kit fit the rear end kit 91046110 although the axle register on the axles is 2.800 and the ones one this kit is 2.782
by Tommy Wright
• 9 years ago
1 answer
View Answer
Are the calipers in this kit the same design as the ones in the Wilwood 140-10440-B FDL Front Disc Brake Kit, 1974-80 Pinto/Mustang II
by Tommy Wright
• 9 years ago
1 answer
View Answer
What is the piston count on the calipers
by Tommy1448
• 9 years ago
1 answer
View Answer
I purchased a triangulated rear axle setup from you #91004754 and am using the Currie axles #'s 91046117 and 91046116. Will this brake kit work for me?
by Andy
• 9 years ago
1 answer
View Answer
What size is the register in the rotors? The Currie axles call for 2.800 and the instructions for this setup call for 2.780, don't want to have to machine the inside of the rotors. Thanks
by Jim
• 10 years ago
1 answer
View Answer
what flexible brake line should I use for the caliper
by REDSCHEVY
• 11 years ago
1 answer
View Answer
We have a 8" ford rear-end with a 2.5" offset and small bearings, wich kit should we order?
by
• 15 years ago
1 answer
View Answer
7 of 7 questions shown
