Add to Cart
$945.84
$844.99

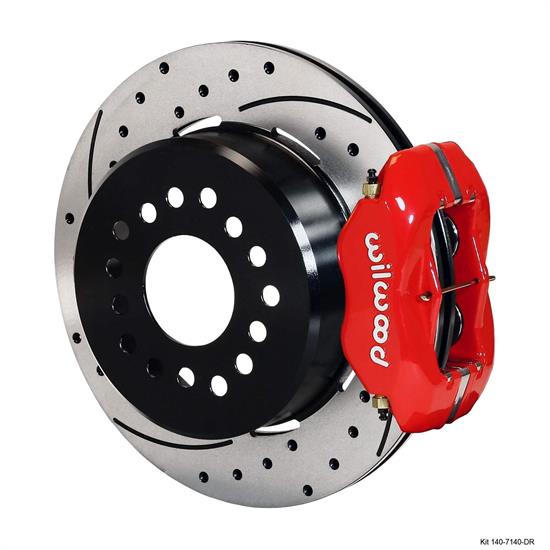

Wilwood 140-7140-DR FDLI Rear Brake Kit, New Big Ford 2.50 Off
Wilwood 140-7140-DR FDLI Rear Brake Kit, New Big Ford 2.50 Off

Wilwood 140-7140-DR FDLI Rear Brake Kit, New Big Ford 2.50 Off

Ford 9", Rear Position, Multi: 5 on 5" | 4.75" | 4.50" Bolt Pattern, 12.19 Inch Rotor Diameter

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-7140-DR FDLI Rear Brake Kit, New Big Ford 2.50 Off
Wilwood 140-7140-DR FDLI Rear Brake Kit, New Big Ford 2.50 Off
Wilwood 140-7140-DR FDLI Rear Brake Kit, New Big Ford 2.50 Off
Wilwood 140-7140-DR FDLI Rear Brake Kit, New Big Ford 2.50 Off
Wilwood 140-7140-DR FDLI Rear Brake Kit, New Big Ford 2.50 Off
Wilwood 140-7140-DR FDLI Rear Brake Kit, New Big Ford 2.50 Off
X
Wilwood 140-7140-DR FDLI Rear Brake Kit, New Big Ford 2.50 Off
Wilwood 140-7140-DR FDLI Rear Brake Kit, New Big Ford 2.50 Off
Wilwood 140-7140-DR FDLI Rear Brake Kit, New Big Ford 2.50 Off
Wilwood 140-7140-DR FDLI Rear Brake Kit, New Big Ford 2.50 Off
Zoomed In Image
Part # 8351407140DR
Save 10%
$844.99
$945.84
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Position:
Rear
Bolt Pattern:
Multi: 5 on 5" | 4.75" | 4.50"
Rotor Diameter:
12.19 Inch
Rotor Type:
Vented
Caliper Pistons:
Four
Caliper Finish:
Powder Coated
Color:
Red
Parking Brake Provision:
Yes
MFG. Part #:
140-7140-DR
Minimum Recommended Wheel Diameter:
15 Inch
Rotor Thickness:
0.81"
Offset:
2.5"
Mount Type:
Lug
Total Piston Area:
3.00 sq. in.
Piston Type:
Stainless
Pad Area:
6.36 sq. in.
Pad Volume:
2.10 cu. in.
Brake Pad Compound:
BP-10
Rotor Style:
Drilled and Slotted
Caliper Type:
Forged Dynalite
Rotor Finish:
Black E-Coat
Rotor Material Type:
Spec-37 Iron
Vane Count:
32 Straight Vane
Bedded:
No
Balanced:
No
GTIN Code:
889545023343

Info

This group of FDLI Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

Installation Instructions (PDF)

Some parts are not legal for use in California or other states with similar laws/regulations
