Wilwood 140-7015 FDL Front Disc Brake Kit, 2002-07 Mitsubishi Lancer
Drilled / RedUndrilled / Red
$968.78
/each
Factory Shipped
$1,048.33
Save $79.55
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
| MFG. Part # | 140-7015 |
| Position | Front |
| Rotor Diameter | 12.19 Inch |
| Rotor Type | Vented |
| Caliper Pistons | Four |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyWilwood 140-7015 Details
Wilwood 140-7015 Details
Forged billet Dynalite calipers, oversized rotors, and high performance Wilwood brake pads deliver big brake stopping power with high-tech style for front wheel drive sport compacts. These kits are the perfect compliment to wheel, tire, and suspension upgrades. Options for caliper finish and rotor design make it simple to match the brake response and style preferences on all types of daily drivers, race vehicles, and ultra-styled show machines. Each kit is engineered specific for each vehicle. They are fully compatible with OE master cylinder output while retaining the full factory ABS functions.
Application
2002 Mitsubishi Lancer LS, 4 x 4.50 BC (4 x 114mm)
2002 Mitsubishi Lancer OZ Rally Edition, 4 x 4.50 BC (4 x 114mm)
2003 Mitsubishi Lancer LS, 4 x 4.50 BC (4 x 114mm)
2003 Mitsubishi Lancer OZ Rally Edition, 4 x 4.50 BC (4 x 114mm)
2004 Mitsubishi Lancer ES 2.0L 4 x 4.50 BC (4 x 114.3mm)
2004 Mitsubishi Lancer 2.4L LS Sportback w/ Rear Disc 4 x 114mm BC
2004 Mitsubishi Lancer LS, 4 x 4.50 BC (4 x 114mm)
2004 Mitsubishi Lancer 2.4L w/o ABS 4 x 4.50 BC (4 x 114.3mm)
2004 Mitsubishi Lancer OZ Rally Edition, 4 x 4.50 BC (4 x 114mm)
2005 Mitsubishi Lancer ES 2.0L, 4 x 4.50 BC (4 x 114mm)
2005 Mitsubishi Lancer LS 2.0L, 4 x 4.50 BC (4 x 114mm)
2005 Mitsubishi Lancer OZ Rally Edition, 4 x 4.50 BC (4 x 114mm)
2006 Mitsubishi Lancer 2.0L, 4 x 4.50 BC (4 x 114mm)
2006 Mitsubishi Lancer 2.4L, 4 x 4.50 BC (4 x 114.3mm) Canada Only
2006 Mitsubishi Lancer OZ Rally Edition, 4 x 4.50 BC (4 x 114mm)
2007 Mitsubishi Lancer 2.0L, 4 x 4.50 BC (4 x 114mm)
2002 Mitsubishi Lancer OZ Rally Edition, 4 x 4.50 BC (4 x 114mm)
2003 Mitsubishi Lancer LS, 4 x 4.50 BC (4 x 114mm)
2003 Mitsubishi Lancer OZ Rally Edition, 4 x 4.50 BC (4 x 114mm)
2004 Mitsubishi Lancer ES 2.0L 4 x 4.50 BC (4 x 114.3mm)
2004 Mitsubishi Lancer 2.4L LS Sportback w/ Rear Disc 4 x 114mm BC
2004 Mitsubishi Lancer LS, 4 x 4.50 BC (4 x 114mm)
2004 Mitsubishi Lancer 2.4L w/o ABS 4 x 4.50 BC (4 x 114.3mm)
2004 Mitsubishi Lancer OZ Rally Edition, 4 x 4.50 BC (4 x 114mm)
2005 Mitsubishi Lancer ES 2.0L, 4 x 4.50 BC (4 x 114mm)
2005 Mitsubishi Lancer LS 2.0L, 4 x 4.50 BC (4 x 114mm)
2005 Mitsubishi Lancer OZ Rally Edition, 4 x 4.50 BC (4 x 114mm)
2006 Mitsubishi Lancer 2.0L, 4 x 4.50 BC (4 x 114mm)
2006 Mitsubishi Lancer 2.4L, 4 x 4.50 BC (4 x 114.3mm) Canada Only
2006 Mitsubishi Lancer OZ Rally Edition, 4 x 4.50 BC (4 x 114mm)
2007 Mitsubishi Lancer 2.0L, 4 x 4.50 BC (4 x 114mm)
Charts
Installation Instructions (PDF)

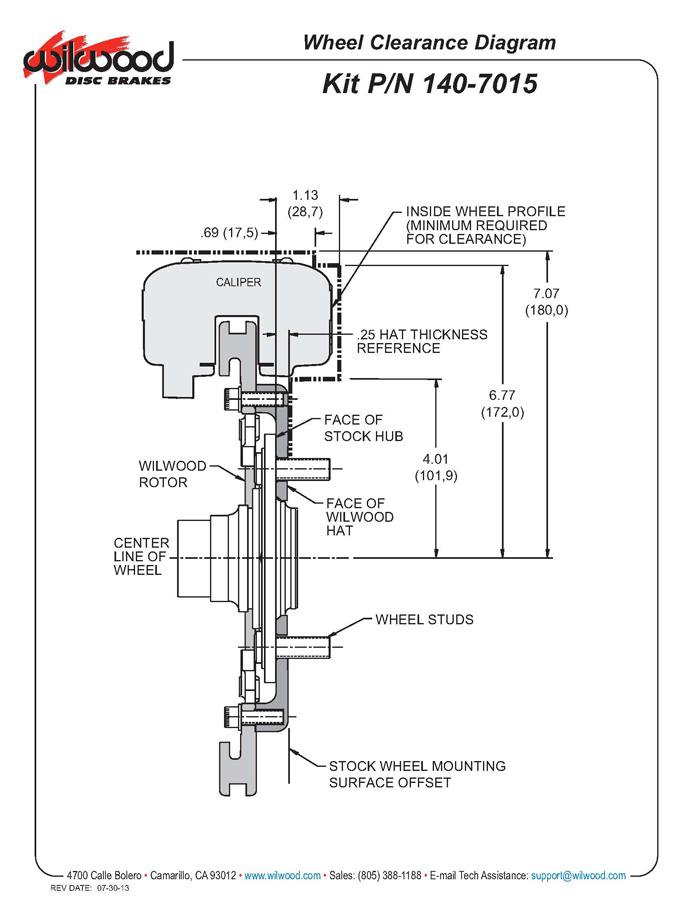

Wheel Clearance Diagram (JPG)
Specs
Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.
Wilwood 140-7015 Specifications
Wilwood 140-7015 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 140-7015 |
| Brand | Wilwood |
| Position | Front |
| Rotor Diameter | 12.19 Inch |
| Rotor Type | Vented |
| Caliper Pistons | Four |
| Caliper Finish | Powder Coated |
| Parking Brake Provision | No |
| Minimum Recommended Wheel Diameter | 15 Inch |
| Rotor Shape | Round |
| Hardware Included | Yes |
| Rotor Style | Plain Face |
| Spindle Type | Factory Disc Spindle |
| Front Rotor Included | Yes |
| Front Rotor Diameter | 12.19 Inch |
| Front Caliper Included | Yes |
| Rear Caliper Included | No |
| Front Spindles Included | No |
| Master Cylinder Included | No |
| Brake Booster Included | No |
| Brake Hoses Included | Yes |
| Rear Rotor Included | No |
| Bolt Pattern | 4 on 4.5" |
| Color | Black |
| Front Caliper Piston Quantity | 4 |
| Front Caliper Finish | Powder Coated |
| GENERAL | |
| GTIN Code | 889545023169 |
| Rotor Thickness | 0.81" |
| Stud Diameter | 0.5" |
| Mount Type | Lug |
| Total Piston Area | 3.00 sq. in. |
| Piston Type | Stainless |
| Pad Area | 6.36 sq. in. |
| Pad Volume | 2.1 cu. in. |
| Brake Pad Compound | BP-10 |
| Caliper Type | Lug |
| Rotor Finish | Natural |
| Rotor Material Type | Iron |
| Vane Count | 32 Straight Vane |
| Bedded | No |
| Balanced | No |
| Hat Type | Big Brake Hat - Short Offset |
| Hat Finish | Black E-Coat |
| Hat Material Type | Aluminum |
| Hat Offset Dimension | 0.73" |
| Brake Lines Included | No |
| Caliper Color | Black |
| Caliper Material Type | Forged Aluminum |
| Hat Bolt Circle 1 | 4 x 4.50 |
