Wilwood 140-7014-R FDL 12.19 Front Disc Brake Kit, 2002-06 Honda/Acura

-7%

#8351407014R

Wilwood 140-7014-R FDL 12.19 Front Disc Brake Kit, 2002-06 Honda/Acura

Name: Wilwood 140-7014-R FDL 12.19 Front Disc Brake Kit, 2002-06 Honda/Acura
Brand: Wilwood
SKU: 8351407014R
Price: 937.4 USD
Availability: InStock

Write a Review

Ask a Question

Rotor / Caliper Type:

Undrilled / Red

Undrilled Drilled Drilled / Red

$937.40

/each

Factory Shipped

$1,014.38

Save $76.98

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 12.19 Inch Rotor Diameter, Red

See more details

Key Specs

MFG. Part #	140-7014-R
Position	Front
Rotor Diameter	12.19 Inch
Rotor Type	Vented
Caliper Pistons	Four

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-7014-R Details

Forged billet Dynalite calipers, oversized rotors, and high performance Wilwood brake pads deliver big brake stopping power with high-tech style for front wheel drive sport compacts. These kits are the perfect complement to wheel, tire, and suspension upgrades. Options for caliper finish and rotor design make it simple to match the brake response and style preferences on all types of daily drivers, race vehicles, and ultra-styled show machines. Each kit is engineered specific for each vehicle. They are fully compatible with OE master cylinder output while retaining the full factory ABS functions.

Application

2002 Acura RSX Except Type-S
2002 Acura RSX Type-S only
2003 Acura RSX Except Type-S
2003 Acura RSX Type-S only
2004 Acura RSX Except Type-S
2004 Acura RSX Type-S only
2004 Honda Civic SI (5 Lug)
2005 Acura RSX Except Type-S
2005 Acura RSX Type-S only
2005 Honda Civil SI (5 Lug)
2006 Acura RSX Except Type-S
2006 Acura RSX Type-S only

Charts

Installation Instructions (PDF)

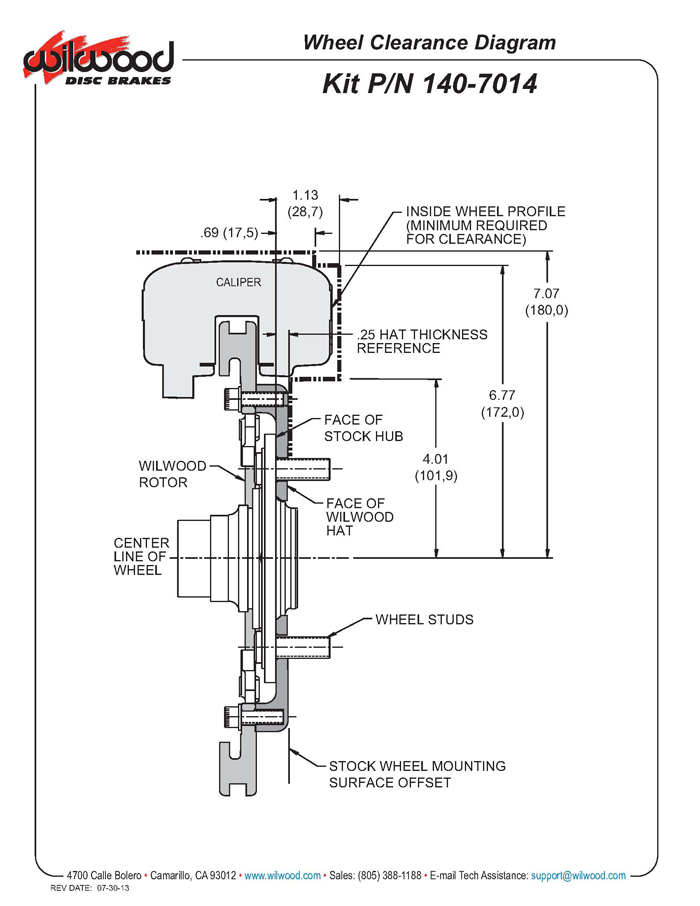

Wheel Clearance Diagram (JPG)

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (8351407014R)

Wilwood 140-7014-R Specifications

KEY SPECS
MFG. Part #	140-7014-R
Brand	Wilwood
Position	Front
Rotor Diameter	12.19 Inch
Rotor Type	Vented
Caliper Pistons	Four
Caliper Finish	Powder Coated
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	15 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Plain Face
Spindle Type	Factory Disc Spindle
Front Rotor Included	Yes
Front Rotor Diameter	12.19 Inch
Front Caliper Included	Yes
Rear Caliper Included	No
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	Yes
Rear Rotor Included	No
Color	Red
Bolt Pattern	5 on 4.5"
Front Caliper Piston Quantity	4
Front Caliper Finish	Powder Coated

GENERAL
GTIN Code	889545023152
Rotor Thickness	0.81"
Stud Diameter	0.5"
Mount Type	Lug
Total Piston Area	4.12 sq. in.
Piston Type	Stainless
Pad Area	6.36 sq. in.
Pad Volume	2.1 cu. in.
Brake Pad Compound	BP-10
Caliper Type	Lug
Rotor Finish	Natural
Rotor Material Type	Iron
Vane Count	32 Straight Vane
Bedded	No
Balanced	No
Hat Type	Big Brake Hat - Short Offset
Hat Finish	Black E-Coat
Hat Material Type	Aluminum
Hat Offset Dimension	0.73"
Brake Lines Included	No
Caliper Color	Red
Caliper Material Type	Forged Aluminum
Hat Bolt Circle 1	5 x 4.50

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

2002-2006 Acura RSX

2004-2005 Honda Civic
