Product Summary

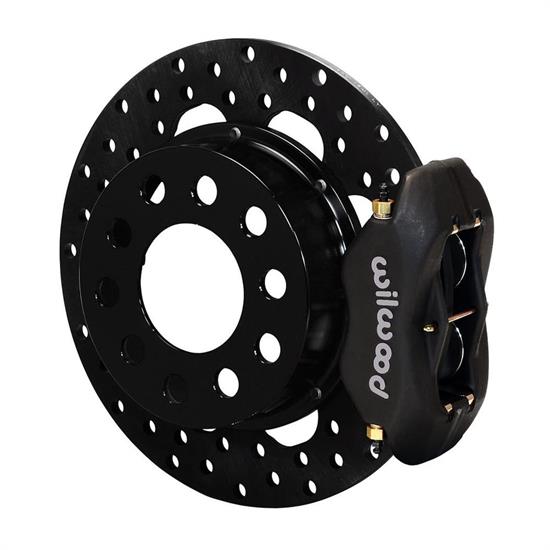

Pontiac/Olds 9.3 Inch, Rear Position, Solid Rotor Type

    Key Specs

    MFG. Part #140-5349-BD
    BrandWilwood
    PositionRear
    Rotor Diameter11.44 Inch
    Rotor TypeSolid

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

    FDL Rear Drag kits are true bolt-on kits available for all popular muscle car rear axles and aftermarket rears built with custom axle ends. Kits in this group are purpose built for sportsman category door cars and others with full functional four-wheel disc brakes. Based on the specific style of housing end and axle offset, mounting kits securely install the four-piston forged Dynalite caliper over 3/8" plate steel rotors that are mounted to the axle with an aluminum hat. Standard kits include solid face rotors, with optional drilled rotor kits available to further reduce driveline weight in classes where every weight advantage is necessary.

    Charts

    Specifications

    KEY SPECS
    MFG. Part #140-5349-BD
    BrandWilwood
    PositionRear
    Rotor Diameter11.44 Inch
    Rotor TypeSolid
    GENERAL
    Bolt PatternDual: 5 on 4.5" | 4.75"
    Caliper PistonsFour
    Caliper FinishAnodized
    ColorGray
    Parking Brake ProvisionNo
    Minimum Recommended Wheel Diameter15 Inch
    Rotor Thickness0.35"
    Offset2.91"
    Mount TypeLug
    Total Piston Area4.80 sq. in.
    Piston TypeStainless
    Pad Area6.36 sq. in.
    Pad Volume2.10 cu. in.
    Brake Pad CompoundBP-10
    Rotor StylePlain Face
    Caliper TypeForged Dynalite
    Rotor FinishBlack Oxide
    Rotor Material TypeSteel
    Vane CountNone
    BeddedNo
    BalancedNo
    Hat TypeDrag Hat- Standard
    Hat FinishBlack E-Coat
    Hat Bolt Circle 25 X 5.00
    Hat Bolt Circle 15 x 4.75
    Hat Material TypeAluminum
    Hat Offset Dimension1.96"
    GTIN Code889545022773
    Front Rotor IncludedNo
    Front Caliper IncludedNo
    Rear Caliper IncludedYes
    Front Spindles IncludedNo
    Master Cylinder IncludedNo
    Brake Booster IncludedNo
    Rear Rotor IncludedYes
