#8351404307BD
$1,059.34
/each
Factory Shipped
$1,146.33
Save $86.99
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
| MFG. Part # | 140-4307-BD |
| Position | Front |
| Rotor Diameter | 11.75 Inch |
| Rotor Type | Solid |
| Caliper Pistons | Four |
Need help?
855.313.9176Quick and Easy Returns
Return PolicyApplication
Charts
Installation Instructions (PDF)

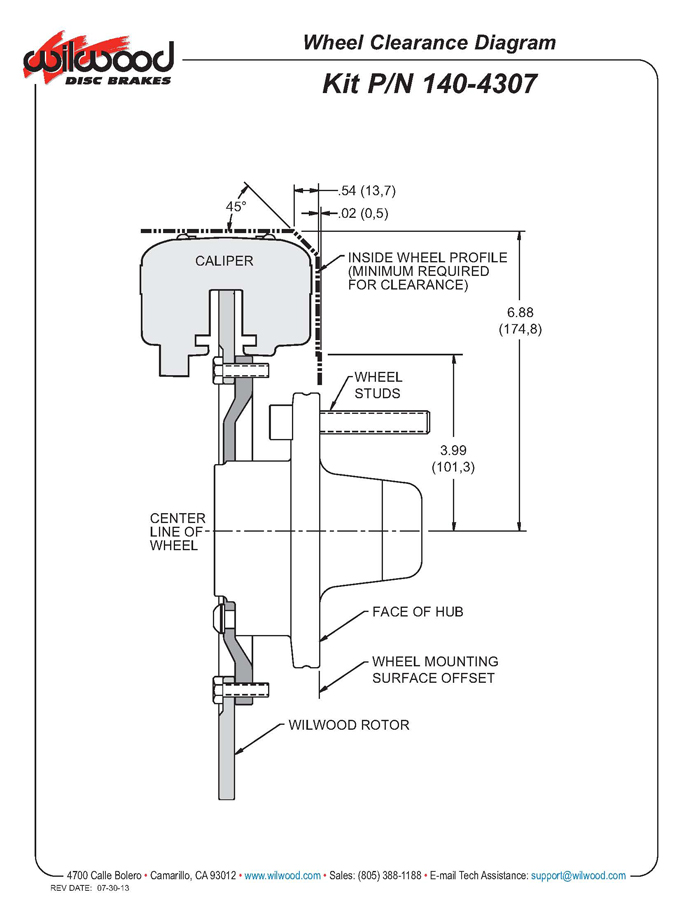

Wheel Clearance Diagram (JPG)
Specs
| KEY SPECS | |
|---|---|
| MFG. Part # | 140-4307-BD |
| Brand | Wilwood |
| Position | Front |
| Rotor Diameter | 11.75 Inch |
| Rotor Type | Solid |
| Caliper Pistons | Four |
| Caliper Finish | Anodized |
| Parking Brake Provision | No |
| Minimum Recommended Wheel Diameter | 15 Inch |
| Rotor Shape | Round |
| Hardware Included | Yes |
| Rotor Style | Drilled |
| Spindle Type | Factory Disc & Drum Spindles |
| Front Rotor Included | Yes |
| Front Rotor Diameter | 11.75 Inch |
| Front Caliper Included | Yes |
| Rear Caliper Included | No |
| Front Spindles Included | No |
| Master Cylinder Included | No |
| Brake Booster Included | No |
| Brake Hoses Included | Yes |
| Rear Rotor Included | No |
| Color | Gray |
| Bolt Pattern | 5 on 4.5" | 4.75" |
| Front Caliper Piston Quantity | 4 |
| Front Caliper Finish | Anodized |
| GENERAL | |
| GTIN Code | 889545022551 |
| Notes | For use on cars up to 2800 pounds with rear discs or on cars up to 2400 pounds with rear drums |
| Rotor Thickness | 0.35" |
| Stud Diameter | 1/2-20 |
| Mount Type | Lug |
| OE Hub Offset | 0.14" |
| Total Piston Area | 4.80 sq. in. |
| Piston Type | Stainless |
| Pad Area | 6.36 sq. in. |
| Pad Volume | 2.1 cu. in. |
| Brake Pad Compound | BP-10 |
| Caliper Type | Lug |
| Rotor Finish | Black E-Coat |
| Rotor Material Type | Steel |
| Vane Count | None |
| Bedded | No |
| Balanced | No |
| Brake Lines Included | No |
| Caliper Color | Gray |
| Caliper Material Type | Forged Aluminum |
| Stud Diameter 2 | 1/2-20 |
Be the first to ask a question.
1966-1969 Ford Fairlane
1965-1970 Ford Falcon
1970 Ford Maverick
1965-1970 Ford Mustang
1965-1969 Ford Ranchero
1968-1969 Ford Torino
1965-1969 Mercury Comet
1967-1969 Mercury Cougar
1967-1969 Mercury Cyclone
1968-1969 Mercury Montego
