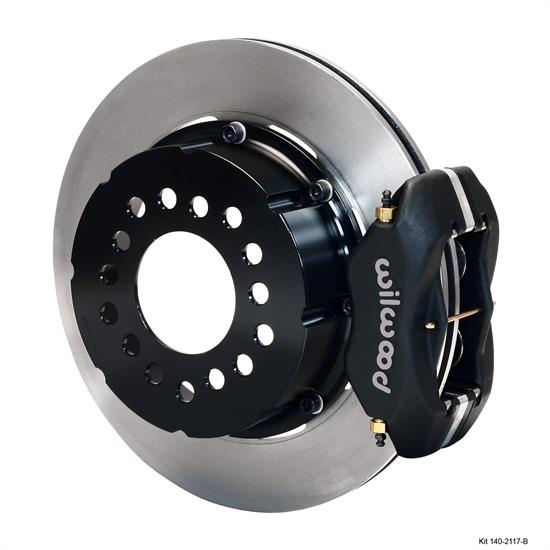

Wilwood 140-2117-B Rear Brake Kit - Mopar/Dana Axle, 2.36 Offset
Wilwood 140-2117-B Rear Brake Kit - Mopar/Dana Axle, 2.36 Offset

Wilwood 140-2117-B Rear Brake Kit - Mopar/Dana Axle, 2.36 Offset

Chrysler 8-3/4", Dana 60, Rear Position, Multi: 5 on 4.5" | 4.75" | 5" Bolt Pattern, Black

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Limited Qty
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-2117-B Rear Brake Kit - Mopar/Dana Axle, 2.36 Offset
Wilwood 140-2117-B Rear Brake Kit - Mopar/Dana Axle, 2.36 Offset
Wilwood 140-2117-B Rear Brake Kit - Mopar/Dana Axle, 2.36 Offset
Wilwood 140-2117-B Rear Brake Kit - Mopar/Dana Axle, 2.36 Offset
Wilwood 140-2117-B Rear Brake Kit - Mopar/Dana Axle, 2.36 Offset
X
Wilwood 140-2117-B Rear Brake Kit - Mopar/Dana Axle, 2.36 Offset
Wilwood 140-2117-B Rear Brake Kit - Mopar/Dana Axle, 2.36 Offset
Wilwood 140-2117-B Rear Brake Kit - Mopar/Dana Axle, 2.36 Offset
Zoomed In Image
Part # 8351402117
$683.73
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Position:
Rear
Bolt Pattern:
Multi: 5 on 4.5" | 4.75" | 5"
Rotor Diameter:
12.19 Inch
Rotor Type:
Vented
Caliper Pistons:
Four
Caliper Finish:
Powder Coated
Color:
Black
Parking Brake Provision:
No
MFG. Part #:
140-2117-B
Minimum Recommended Wheel Diameter:
15 Inch
Rotor Thickness:
.81"
Rotor Shape:
Round
Hardware Included:
Yes
Sold in Quantity:
Kit
Notes:
Includes rotors, rotor hats, caliper brackets, calipers, pads, and hardware.
GTIN Code:
889545022070

Info

Wilwood FDLI Pro-Series rear disc brake kits provide a complete solution for the popularMopar/Danarear axles on applications where parking brake assemblies are not required. Forged billet Dynalite four piston calipers, two-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of customized applications.

  • Ultralite HP 32 Curved Vane Vented Rotor - 12.19" x .810"
  • Forged billet Dynalite four-piston calipers
    • Piston Area (in²): 3
    • 1/8" NPT inlet
  • Minimum Wheel Diameter (in): 15
  • BP-10 Smart pads
  • Aluminum mounting brackets and hardware

This kit will fit Mopar 8 3/4" and Dana 60 rear axlesequipped with green non-adjustable bearings (Mopar P/N RP400). These kits do not have emergency brake provisions.

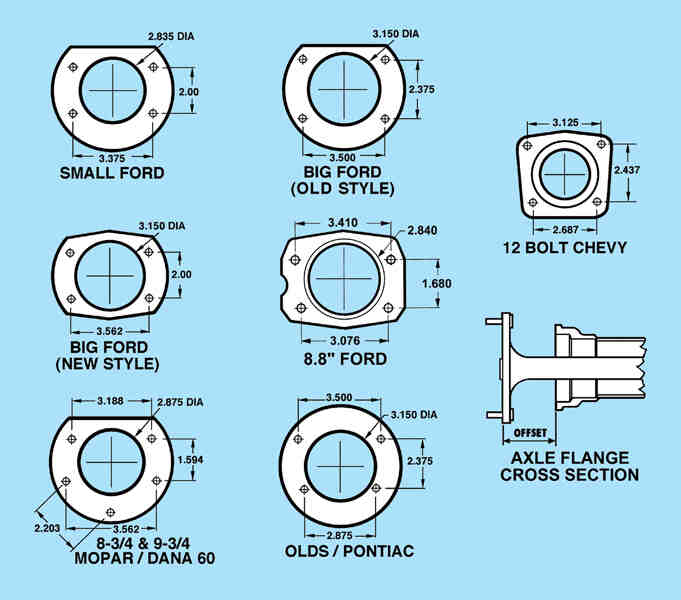

Axle Flange Identification Chart

Exploded Installation Schematic

Item Details

Mopar/Dana, green brg., 2.36" offset

Notes

1. Requires use of Mopar Performance Green Bearing (RP400).
2. Kit fits some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.

Specs


Charts

Wilwood Rear Brake Kit Installation Instructions (PDF)
