Wilwood 140-2113-B Rear Brake Kit - Small Bearing Ford, 2.66 Offset

-7%

Wilwood 140-2113-B Rear Brake Kit - Small Bearing Ford, 2.66 Offset
Wilwood

|

#8351402113

Wilwood 140-2113-B Rear Brake Kit - Small Bearing Ford, 2.66 Offset

Rotor / Caliper Type:

Undrilled

Drilled / Black

$979.24

/each

Factory Shipped

$1,059.66

Save $80.42


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Rear Position, 12.19 Inch Rotor Diameter, Powder Coated

    See more details

    Key Specs

    MFG. Part #140-2113-B
    PositionRear
    Wheel Bolt Pattern (in.)5x4.5 in. | 5x4.75 in.
    Wheel Bolt Pattern (mm)5x114.3 mm | 5x120.65 mm
    Rotor Diameter12.19 Inch
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    Wilwood 140-2113-B Details

    Wilwood FDLI Pro-Series rear disc brake kits provide a complete solution for the popularFordsmall bearingrear axles on applications where parking brake assemblies are not required. Forged billet Dynalite four piston calipers, two-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of customized applications.

    These kits do not have emergency brake provisions.

    Click Here for Exploded Installation Schematic

    Item Details

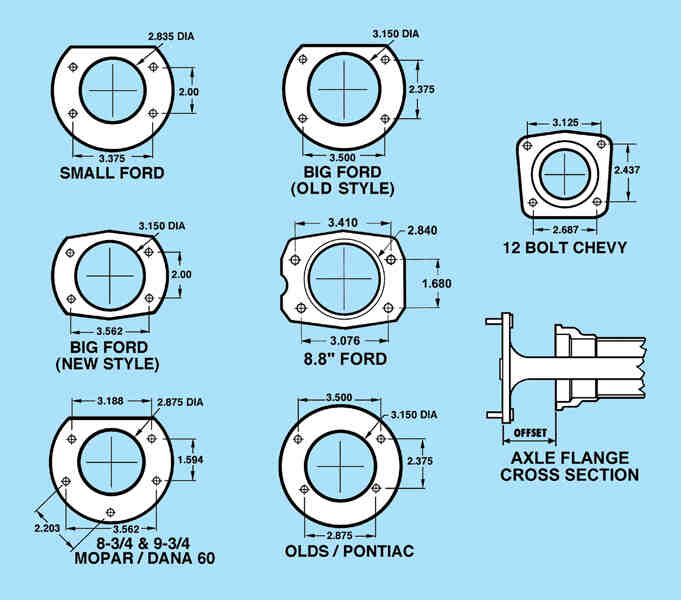

    Small Ford, 2.66" offset

    Charts

    Specs

    Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

    Wilwood 140-2113-B Specifications

    KEY SPECS
    MFG. Part #140-2113-B
    BrandWilwood
    PositionRear
    Wheel Bolt Pattern (in.)5x4.5 in. | 5x4.75 in.
    Wheel Bolt Pattern (mm)5x114.3 mm | 5x120.65 mm
    Rotor Diameter12.19 Inch
    Rotor TypeVented
    Caliper PistonsFour
    Caliper FinishPowder Coated
    Parking Brake ProvisionNo
    Minimum Recommended Wheel Diameter15 Inch
    Rotor ShapeRound
    Hardware IncludedYes
    Rotor StylePlain Face
    Front Rotor IncludedNo
    Front Caliper IncludedNo
    Rear Caliper IncludedYes
    Front Spindles IncludedNo
    Master Cylinder IncludedNo
    Brake Booster IncludedNo
    Brake Hoses IncludedYes
    Rear Rotor IncludedYes
    ColorBlack
    Bolt Pattern5 on 4.5" | 4.75"
    GENERAL
    Sold in QuantityKit
    NotesIncludes rotors, rotor hats, caliper brackets, calipers, pads, and hardware.
    GTIN Code889545021851
    Rotor Thickness0.81"
    Axle Flange Offset2.66"
    Caliper TypeLug
    Rotor Material TypeIron
    Brake Lines IncludedNo
    Caliper ColorBlack
    Caliper Material TypeForged Aluminum

    Ratings & Reviews

    4

    1 Review

    Write A Review

    4

    1 reviews

    5

    0

    4

    1

    3

    0

    2

    0

    1

    0

    Filter by Ratings

    Nice system but I had to modify it

    4.0

    16 years ago

    Albert Bino

    Evansville'In.

    Verified

    had to grind the caliper in order to get the brake pads to go on. Had to shim to get the caliper support away from the hitting the rotor. Other than that it's on the car.

    Would Recommend

    Showing 1 of 1 reviews

    Questions & Answers

    1 Question • 1 Answer

    Will this kit work on a 8 in. Ford housing 4 lug axle flange ?

    by none

    • 10 years ago

    1 answer

    View Answer

    1 of 1 questions shown
