Wilwood 140-17321-R Forged DynaPro 6 Front Brake Kit, Red

$156 Off

#83514017321R

Wilwood 140-17321-R Forged DynaPro 6 Front Brake Kit, Red

Red Calipers
12.19" Rotors
Undrilled Rotors

Rotor / Caliper Type:

Undrilled / Red

$1,302.73

Factory Shipped

$1,459.05

Save $156.32

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, No Value Rotor Diameter, Powder Coated

Red Calipers
12.19" Rotors
Undrilled Rotors

See more details

Key Specs

MFG. Part #	140-17321-R
Position	Front
Rotor Type	Vented
Caliper Pistons	Six
Caliper Finish	Powder Coated

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-17321-R Details

DynaPro 6 forged billet calipers are combined with 12.19” diameter rotors for this group of traditional non-ABS spindles on American muscle cars and vintage rods. The enhanced brake capacity and pad performance of the six piston calipers provide an intermediate level alternative to the bigger six piston kits. These kits compliment wheel, tire, and suspension upgrades on all types of custom show and high performance street / strip machines. A full range of caliper finishes and rotor designs enable the builder to personalize the style and optimize the brake performance for each individual application.

Red Calipers
12.19" Rotors
Undrilled Rotors

Charts

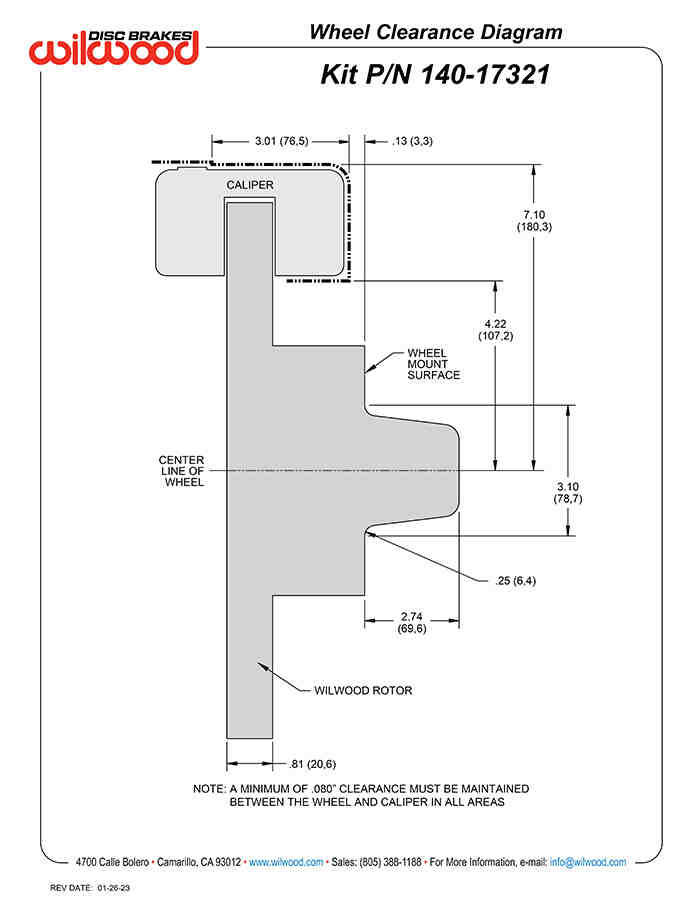

Wheel Clearance Diagram (JPG)

Installation Instructions (PDF)

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (83514017321R)

CA Prop 65

Wilwood 140-17321-R Specifications

KEY SPECS
MFG. Part #	140-17321-R
Brand	Wilwood
Position	Front
Rotor Type	Vented
Caliper Pistons	Six
Caliper Finish	Powder Coated
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	15 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Drilled & Slotted
Front Rotor Included	Yes
Front Rotor Diameter	12.19 Inch
Front Caliper Included	No
Rear Caliper Included	No
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	No
Rear Rotor Included	No
Color	Red

GENERAL
GTIN Code	889545111323
