$103 Off

#83514017120D

Wilwood 140-17120-D Dynapro Low-Profile Rear Parking Brake DS Blk

Hidden internal shoe system provides a clean installation
Clearance for 14.00" to 15.00" rim applications
Black powder coated forged billet Dynapro Low-Profile four-piston calipers

Rotor / Caliper Type:

Drilled

$1,256.75

Factory Shipped

$1,359.96

Save $103.21

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Rear Position, 11 Inch Rotor Diameter, Powder Coated

Hidden internal shoe system provides a clean installation
Clearance for 14.00" to 15.00" rim applications
Black powder coated forged billet Dynapro Low-Profile four-piston calipers
11" SRP drilled and slotted one-piece hat and rotor assemblies
Rear End Axle: G-Body

See more details

Key Specs

Position	Rear
Rotor Diameter	11 Inch
Rotor Type	Vented
Caliper Pistons	Four
Caliper Finish	Powder Coated

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-17120-D Details

Forged Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 14.00" to 15.00" rim applications. Forged billet Dynapro Low-Profile four-piston calipers 11.00" one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.

Hidden internal shoe system provides a clean installation
Clearance for 14.00" to 15.00" rim applications
Black powder coated forged billet Dynapro Low-Profile four-piston calipers
11" SRP drilled and slotted one-piece hat and rotor assemblies
Rear End Axle: G-Body
2.62" Axle Offset
Lug Mount Type

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (83514017120D)

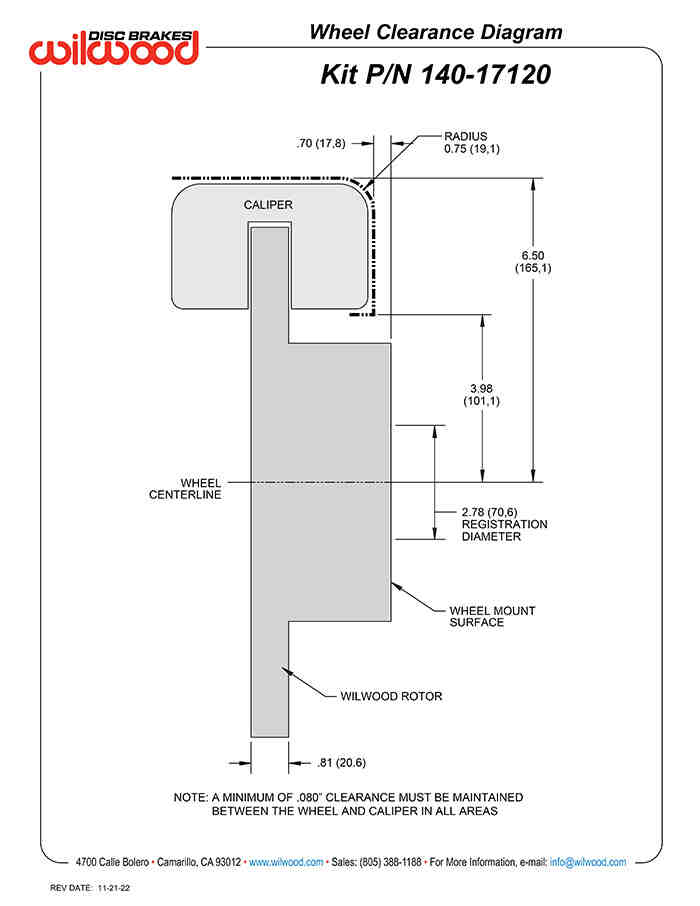

Disc Brake Kits Technical Information (83514017120D)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Wilwood 140-17120-D Specifications

KEY SPECS
MFG. Part #	140-17120-D
Brand	Wilwood
Position	Rear
Rotor Diameter	11 Inch
Rotor Type	Vented
Caliper Pistons	Four
Caliper Finish	Powder Coated
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	14 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Drilled & Slotted
Front Rotor Included	No
Front Caliper Included	No
Rear Caliper Included	Yes
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	No
Rear Rotor Included	Yes
Color	Black

GENERAL
GTIN Code	889545109207

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1978-1981 Buick Century

1978-1987 Buick Regal

1978-1987 Chevy El Camino

1978-1983 Chevy Malibu

1978-1988 Chevy Monte Carlo

1978-1987 GMC Caballero

1978-1980 Oldsmobile Cutlass Calais

1981-1983 Oldsmobile Cutlass Cruiser

1978-1987 Oldsmobile Cutlass Salon

1978-1988 Oldsmobile Cutlass Supreme

1982-1986 Pontiac Bonneville

1978-1980 Pontiac Grand Am

1978-1987 Pontiac Grand Prix

1978-1981 Pontiac LeMans
