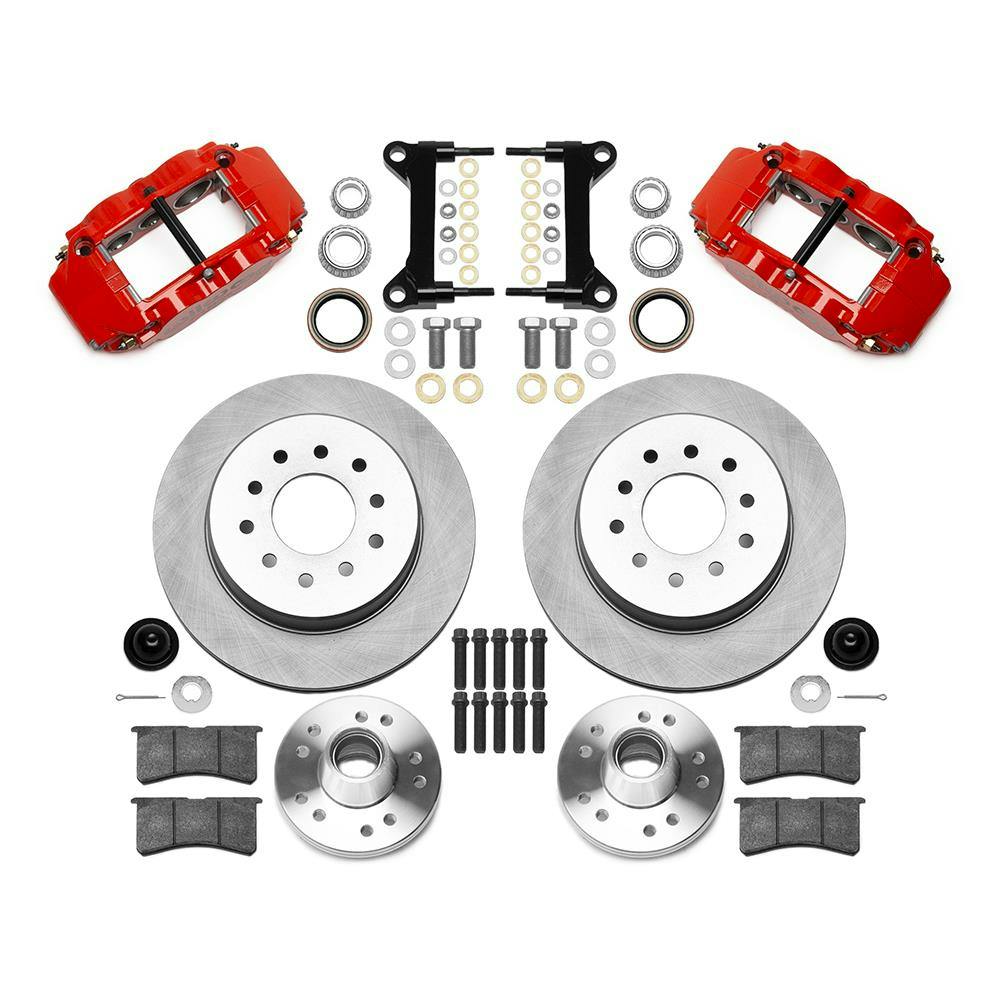

Wilwood 140-15940-R Forged Narrow Superlite 6R Front Brake Kit

$169 Off

#83514015940R

Wilwood 140-15940-R Forged Narrow Superlite 6R Front Brake Kit

Name: Wilwood 140-15940-R Forged Narrow Superlite 6R Front Brake Kit
Brand: Wilwood
SKU: 83514015940R
Price: 1411.63 USD
Availability: InStock

Write a Review

Ask a Question

Rotor / Caliper Type:

Undrilled / Red

Drilled Drilled / Red Undrilled

$1,411.63

/kit

Factory Shipped

$1,581.02

Save $169.39

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 12.19 Inch Rotor Diameter, Red, Red

See more details

Key Specs

MFG. Part #	140-15940-R
Position	Front
Rotor Diameter	12.19 Inch
Rotor Type	Vented
Caliper Pistons	Six

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-15940-R Details

The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this 12.19" big rotor kit for the popular 1963 thru 1987 Chevrolet & GM C10 / C15 Trucks with Wilwood's new 1 Piece Iron Drop Pro Spindles. SL6 kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application. This kit contains hubs with 5 x 4.75" and 5 x 5.00" bolt circle.

Charts

Assembly Instructions (PDF)

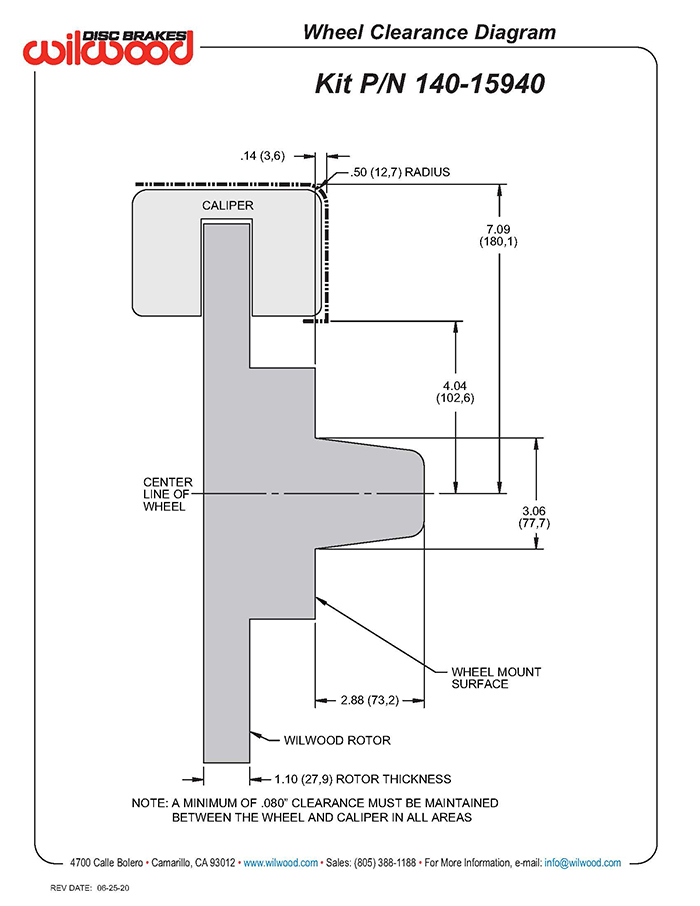

Wheel Clearance Diagram (JPG)

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (83514015940R)

Everything You Need to Know About Converting Drum Brakes to Disc

CA Prop 65

Wilwood 140-15940-R Specifications

KEY SPECS
MFG. Part #	140-15940-R
Brand	Wilwood
Position	Front
Rotor Diameter	12.19 Inch
Rotor Type	Vented
Caliper Pistons	Six
Caliper Finish	Powder Coated
Color	Red
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	15 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Plain Face
Spindle Type	Chevy
Front Rotor Included	Yes
Front Rotor Diameter	12.19 Inch
Front Caliper Included	Yes
Rear Caliper Included	No
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	No
Rear Rotor Included	No
Front Caliper Piston Quantity	6
Bolt Pattern	5 on 4.75" \| 5"
Application Type	Wilwood C10 1-Piece Iron Pro Drop Spindles
Front Caliper Finish	Powder Coated

GENERAL
Sold in Quantity	Kit
GTIN Code	889545093933
Bore Size	1.75"
Rotor Drum I.D.	7.11"
Rotor Thickness	1.1"
Rotor I.D.	3.06"
Stud Diameter	0.52"
Stud Length	2"
Thread Pitch	1/2"-20
Mount Type	Radial
Total Piston Area	4.86 sq. in.
Piston Type	Stainless
Pad Area	8.2 sq. in.
Pad Volume	3.8 cu. in.
Brake Pad Compound	BP-10
Caliper Type	Radial
Rotor Finish	Plain
Rotor Material Type	Iron
Vane Count	32 Straight Vane
Bedded	No
Balanced	Yes
Hub Bolt Circle 2	5 x 5.00"
Hub Bolt Circle 1	5 x 4.75"
Hub Finish	Natural
Hub Material	Aluminum
Front Caliper Material	Forged Billet Aluminum
Brake Lines Included	No
Parking Brake Cables Included	No
Caliper Color	Red
Caliper Material Type	Forged Aluminum
Bore Size 2	1.25"

Ratings & Reviews

Be the first to write a review.

Fitment

1967-1986 Chevy C10

1982-1987 Chevy C15

1975-1978 GMC C15

1967-1974 GMC C15/C1500 Pickup

1979-1986 GMC C1500
