#83514015911R
$2,564.31
/kit
Factory Shipped
$2,774.91
Save $210.60
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
| MFG. Part # | 140-15911-R |
| Position | Front |
| Wheel Bolt Pattern (in.) | 5x4.5 in. | 5x4.75 in. |
| Wheel Bolt Pattern (mm) | 5x114.3 mm | 5x120.65 mm |
| Rotor Diameter | 14 Inch |
Need help?
855.313.9176Quick and Easy Returns

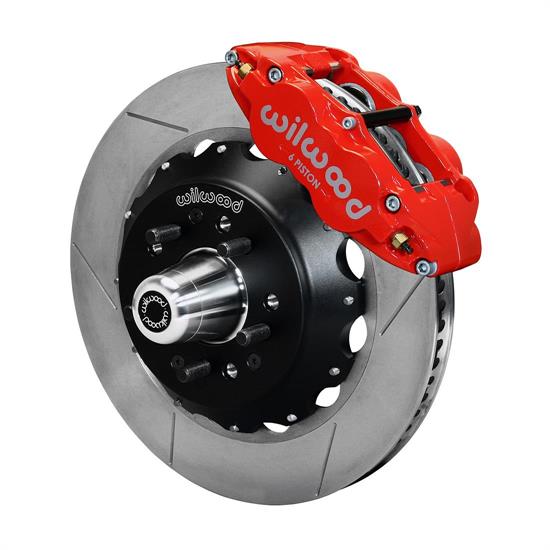

Return PolicyFNSL6R billet forged six-piston calipers with 14.00" rotors deliver the ultimate combination for braking power and style re designed for the WWE AFX Pro spindles. AFX Pro Spindles fit 1964-1972 GM A Body, 1967-1969 GM F Body, 1964-1974 GM X Body vehicles and are built exclusively for 18” and larger wheels, FNSL6R kits used with WWE AFX Pro Spindles enhance tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines. A full range of options for caliper finishes and rotor designs are guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application
Charts
Specs
| KEY SPECS | |
|---|---|
| MFG. Part # | 140-15911-R |
| Brand | Wilwood |
| Position | Front |
| Wheel Bolt Pattern (in.) | 5x4.5 in. | 5x4.75 in. |
| Wheel Bolt Pattern (mm) | 5x114.3 mm | 5x120.65 mm |
| Rotor Diameter | 14 Inch |
| Rotor Type | Vented |
| Caliper Pistons | Six |
| Caliper Finish | Powder Coated |
| Parking Brake Provision | No |
| Minimum Recommended Wheel Diameter | 18 Inch |
| Rotor Shape | Round |
| Hardware Included | Yes |
| Rotor Style | Slotted |
| Spindle Type | Drop Spindle |
| Front Rotor Included | Yes |
| Front Rotor Diameter | 14 Inch |
| Front Caliper Included | Yes |
| Rear Caliper Included | No |
| Front Spindles Included | No |
| Master Cylinder Included | No |
| Brake Booster Included | No |
| Brake Hoses Included | No |
| Rear Rotor Included | No |
| Color | Red |
| Rotor Hat Bolt Pattern | 12 x 8.75" |
| Mounting Bracket Included | No |
| Front Caliper Piston Quantity | 6 |
| Bolt Pattern | 5 on 4.5" | 4.75" |
| Front Caliper Finish | Powder Coated |
| GENERAL | |
| Sold in Quantity | Kit |
| GTIN Code | 889545093414 |
| Bore Size | 1.62" |
| Rotor Thickness | 1.1" |
| Stud Diameter | 0.52" |
| Thread Pitch | 1/2"-20 |
| Mount Type | Radial |
| OE Hub Offset | 0.38" |
| Total Piston Area | 4.04 sq. in. |
| Piston Type | Stainless |
| Pad Area | 8.2 sq. in. |
| Pad Volume | 3.8 cu. in. |
| Brake Pad Compound | BP-20 |
| Caliper Type | Radial |
| Rotor Finish | Natural |
| Rotor Material Type | Spec-37 Iron |
| Vane Count | 72 Curved Vane |
| Bedded | No |
| Balanced | Yes |
| Hat Type | Big Brake Hat - Flared Bell |
| Hat Finish | Black E-Coat |
| Hub Material | Aluminum |
| Hub Mount Style | Adapter |
| Brake Lines Included | No |
| Parking Brake Cables Included | No |
| Caliper Color | Red |
| Caliper Material Type | Forged Aluminum |
| Hub Bolt Circle 1 | 5 x 4.50" |
| Hub Bolt Circle 2 | 5 x 4.75" |
| Hub Finish | Natural |
| Brake Pedal Rod Included | No |
Be the first to ask a question.
1965-1967 Buick Gran Sport
1970-1972 Buick GS
1964-1972 Buick Skylark
1964-1969 Buick Special
1964-1969 Buick Sportwagon
1967-1969 Chevy Camaro
1964-1972 Chevy Chevelle
1964-1972 Chevy El Camino
1964-1967 Chevy Malibu
1964-1972 Oldsmobile Cutlass
1964-1972 Oldsmobile Vista Cruiser
1967-1969 Pontiac Firebird
1964-1972 Pontiac GTO
1964-1970 Pontiac Tempest
