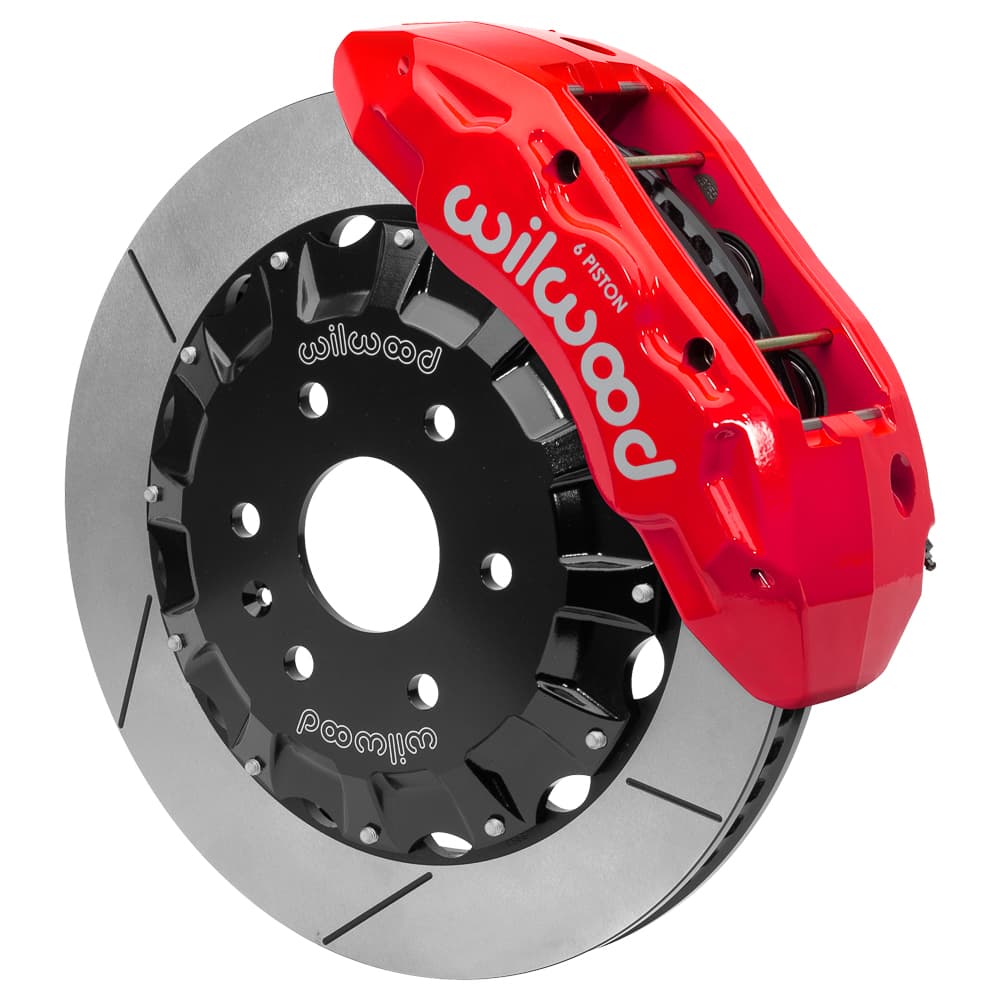

Wilwood 140-15729 TX6R Big Brake Truck Front Brake Kits

Using TX6R radial mount six-piston calipers and massive 15.00” to 16.00” GT-60 directional vane Spec-37 alloy rotors, these kits deliver consistent stopping power and extreme duty durability under sustained high heat with this ready to bolt-on kit
The calipers are volume matched for compatibility with original equipment power brake system output

Color:

Select a color

$3,282.74

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, No Value Rotor Diameter, Powder Coated

Using TX6R radial mount six-piston calipers and massive 15.00” to 16.00” GT-60 directional vane Spec-37 alloy rotors, these kits deliver consistent stopping power and extreme duty durability under sustained high heat with this ready to bolt-on kit
The calipers are volume matched for compatibility with original equipment power brake system output
Kits include radial mount caliper brackets, and all the necessary hardware to complete the installation
Braided stainless steel flex lines will need to be purchased for some applications.

See more details

Key Specs

MFG. Part #	Select Color
Position	Front
Rotor Type	Vented
Caliper Pistons	Six
Caliper Finish	Powder Coated

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Details

Wilwood’s Tactical Extreme TX6R Big Brake kits are ultimate in braking performance for Truck, SUV and Armored Vehicles. Using TX6R radial mount six-piston calipers and massive 15.00” to 16.00” GT-60 directional vane Spec-37 alloy rotors, these kits deliver consistent stopping power and extreme duty durability under sustained high heat with this ready to bolt-on kit. The calipers are volume matched for compatibility with original equipment power brake system output. Kits include radial mount caliper brackets, and all the necessary hardware to complete the installation. Braided stainless steel flex lines will need to be purchased for some applications.

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (83514015729)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Specifications

KEY SPECS
MFG. Part #	Select Color to see
Brand	Wilwood
Position	Front
Rotor Type	Vented
Caliper Pistons	Six
Caliper Finish	Powder Coated
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	20 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	GT Slotted
Spindle Type	Factory Disc Spindle
Front Rotor Included	Yes
Front Rotor Diameter	16 Inch
Front Caliper Included	Yes
Rear Caliper Included	No
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	Yes
Rear Rotor Included	No
Color	Select Color to see

GENERAL
Sold in Quantity	Kit
GTIN Code	Select Color to see
Stud Diameter	0.63"
Mount Type	Radial
Total Piston Area	6.52 sq. in.
Pad Area	12.69 sq. in.
Pad Volume	6.81 cu. in.
Brake Pad Compound	BP-Q
Rotor Finish	Black E-Coat
Rotor Material Type	Spec-37 Iron
Vane Count	60 Curved Vane
Hat Type	Truck Hat - Standard
Hat Finish	Black E-Coat
Hat Material Type	Aluminum
Hat Offset Dimension	0.67"
Front Rotor Thickness	1.38"
Front Caliper Piston	Stainless
Brake Lines Included	Yes
Brake Pads Included	Yes
Caliper Color	Select Color to see
Hat Bolt Circle 1	6 X 5.50
