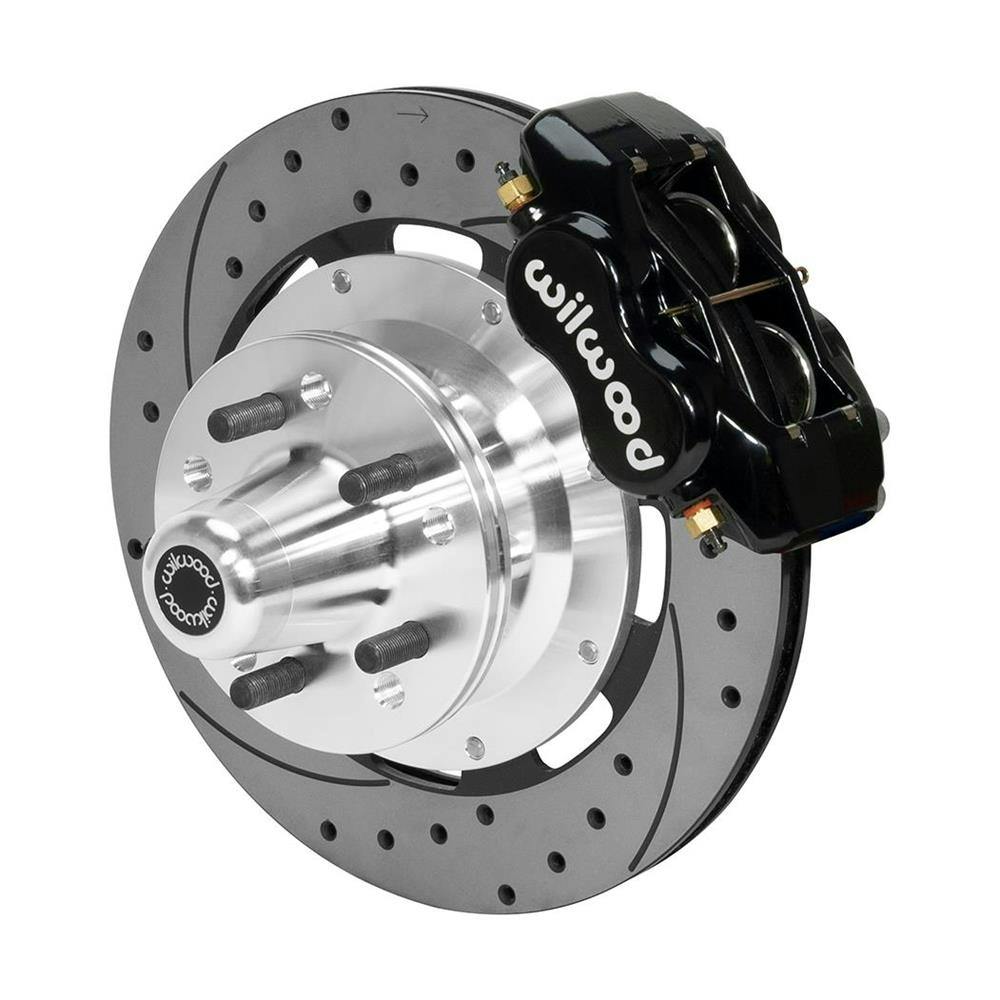

Wilwood 140-15468-D Chrysler/Dodge Big Front Brake Kit

$105 Off

#83514015468D

Wilwood 140-15468-D Chrysler/Dodge Big Front Brake Kit

Wilwood's new limited offset FDLI Pro-Series Front Hub Kits for 73-83 Chrysler, Dodge, Plymouth: A,B,E, F & J Body disc offer disc brake upgrade solutions for OEM Disc spindles
We have completely redesigned our Pro Series line of brake kits using a larger 12
Rotor and new forged aluminum hubs with the express purpose of maintaining the factory wheel position

Rotor / Caliper Type:

Drilled

$1,281.44

Factory Shipped

$1,386.67

Save $105.23

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 12.19 Inch Rotor Diameter, Black, Black

Wilwood's new limited offset FDLI Pro-Series Front Hub Kits for 73-83 Chrysler, Dodge, Plymouth: A,B,E, F & J Body disc offer disc brake upgrade solutions for OEM Disc spindles
We have completely redesigned our Pro Series line of brake kits using a larger 12
Rotor and new forged aluminum hubs with the express purpose of maintaining the factory wheel position
This new kit does not widen the track from the original disc brake rotor assembly
Based on the venerable Forged Billet Dynalite (FDLI) caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast

See more details

Key Specs

MFG. Part #	140-15468-D
Position	Front
Wheel Bolt Pattern (in.)	5x4 in.
Rotor Diameter	12.19 Inch
Rotor Type	Vented

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-15468-D Details

Wilwood's new limited offset FDLI Pro-Series Front Hub Kits for 73-83 Chrysler, Dodge, Plymouth: A,B,E, F & J Body disc offer disc brake upgrade solutions for OEM Disc spindles
We have completely redesigned our Pro Series line of brake kits using a larger 12
19" rotor and new forged aluminum hubs with the express purpose of maintaining the factory wheel position
This new kit does not widen the track from the original disc brake rotor assembly
Based on the venerable Forged Billet Dynalite (FDLI) caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast
Most vehicle applications require no modifications for installation
FDLI Pro-Series kits can be used with either manual or power boost master cylinders

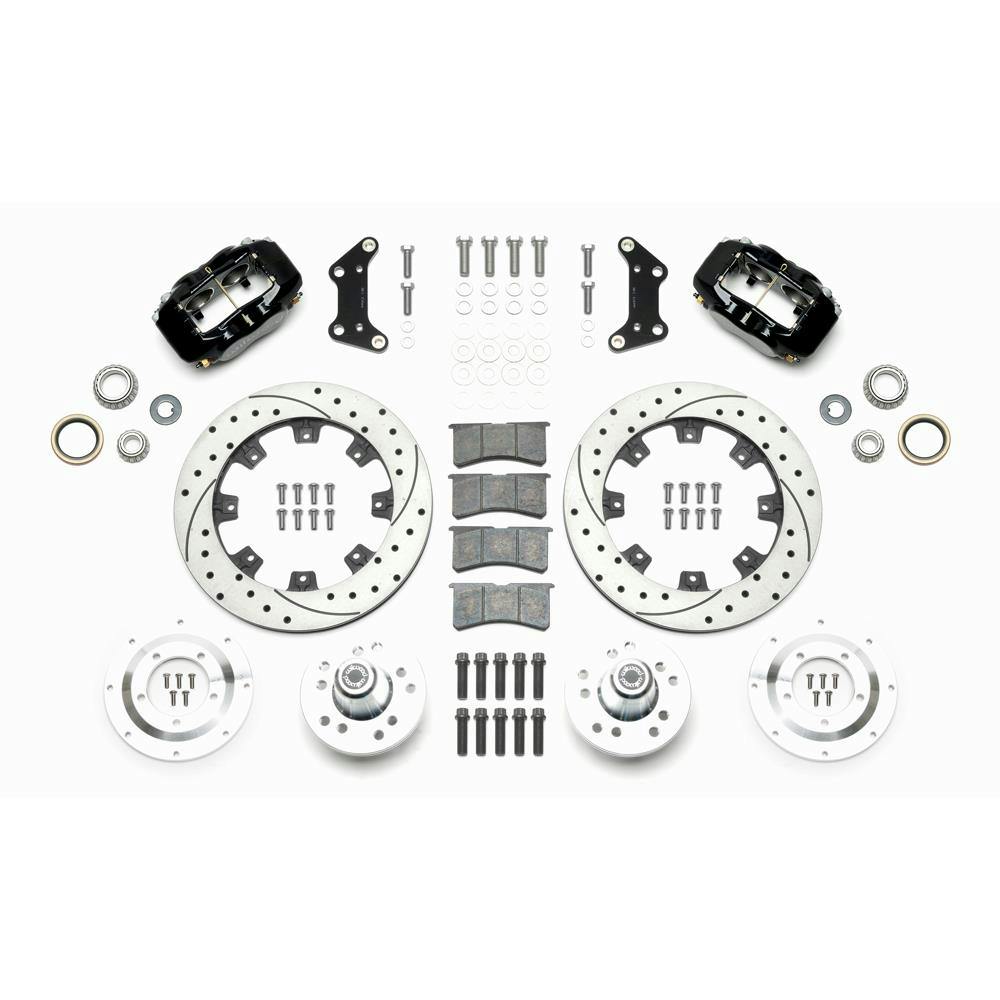

Kits come complete with calipers, rotors, hub assembly, brackets and hardware
Installation requires purchase of additional brake lines shown below

Charts

Installation Instructions (PDF)

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (83514015468D)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Wilwood 140-15468-D Specifications

KEY SPECS
MFG. Part #	140-15468-D
Brand	Wilwood
Position	Front
Wheel Bolt Pattern (in.)	5x4 in.
Rotor Diameter	12.19 Inch
Rotor Type	Vented
Caliper Pistons	Four
Caliper Finish	Powder Coated
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	15 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Drilled & Slotted
Spindle Type	Factory Disc Spindle
Front Rotor Included	Yes
Front Rotor Diameter	12.19 in./309.63mm
Front Caliper Included	Yes
Rear Caliper Included	No
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	No
Rear Rotor Included	No
Color	Black
Front Caliper Piston Quantity	Four
Front Caliper Finish	Powder Coated
Bolt Pattern	5 on 4" \| 4.5"

GENERAL
Sold in Quantity	Kit
GTIN Code	889545088205
Rotor Thickness	0.81"
Brake Pad Material	BP-10
Mount Type	Lug
Total Piston Area	4.8 sq. in.
Piston Type	Stainless
Caliper Type	Lug
Rotor Finish	Black E-Coat
Rotor Material Type	Iron
Bedded	No
Balanced	No
Front Rotor Thickness	.81"
Front Caliper Material	Forged Billet Aluminum
Front Caliper Color	Black
Brake Lines Included	No
Front Rotor Style	Drilled and Slotted
Caliper Color	Black
Caliper Material Type	Forged Aluminum
Front Rotor Construction	Vented

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1975-1983 Chrysler Cordoba

1983-1989 Chrysler Fifth Avenue

1981-1983 Chrysler Imperial

1977-1981 Chrysler LeBaron

1979-1982 Chrysler New Yorker

1979-1981 Chrysler Newport

1976-1980 Dodge Aspen

1973-1974 Dodge Challenger

1973-1978 Dodge Charger

1973-1976 Dodge Coronet

1973-1976 Dodge Dart

1977-1989 Dodge Diplomat

1978-1979 Dodge Magnum

1980-1983 Dodge Mirada

1977-1978 Dodge Monaco

1979-1981 Dodge St. Regis

1973-1974 Plymouth Barracuda

1973-1974 Plymouth Cuda

1973-1976 Plymouth Duster

1975-1978 Plymouth Fury

1973-1975 Plymouth Roadrunner

1973-1974 Plymouth Satellite

1973-1976 Plymouth Scamp

1973-1976 Plymouth Valiant

1976-1980 Plymouth Volare
