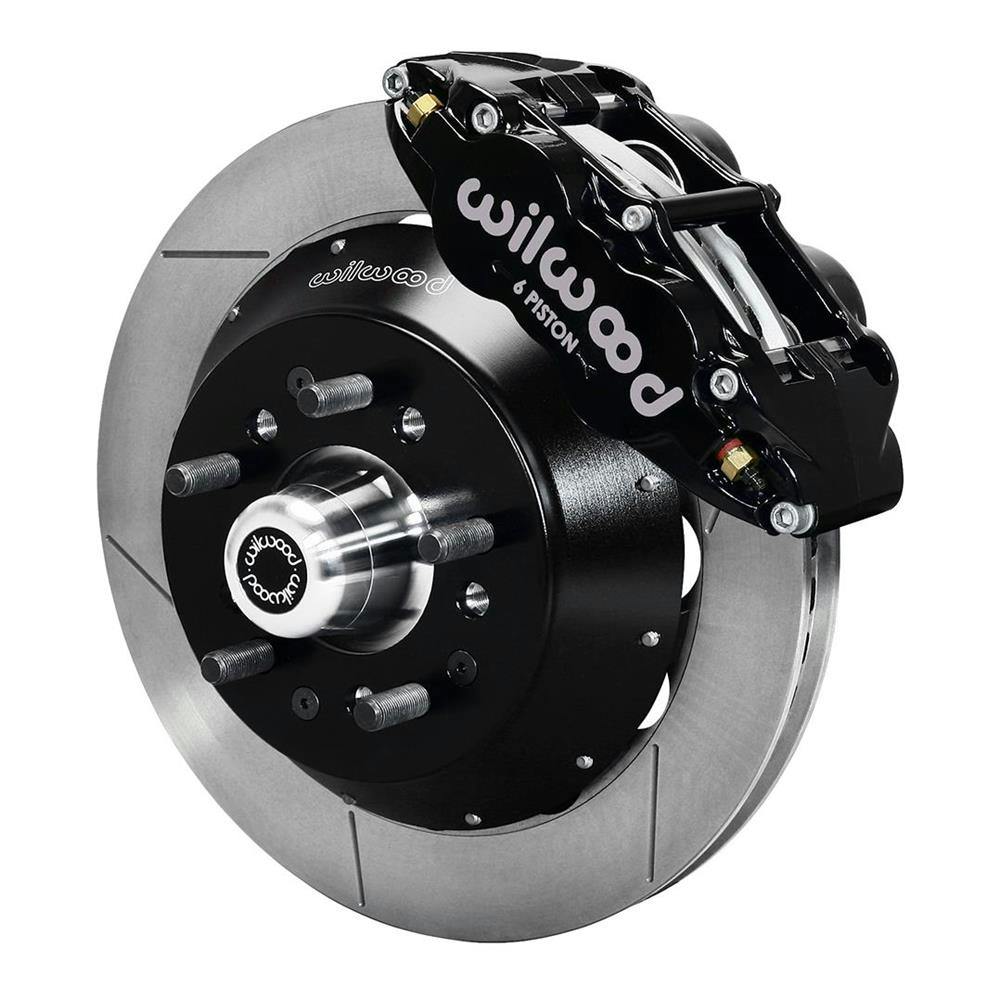

Wilwood 140-15409 Forged Narrow Superlite 6R Big Brake Front Kit

$313 Off

Wilwood 140-15409 Forged Narrow Superlite 6R Big Brake Front Kit
Wilwood

|

#83514015409

Wilwood 140-15409 Forged Narrow Superlite 6R Big Brake Front Kit

Rotor / Caliper Type:

Undrilled

DrilledDrilled / RedUndrilled / Red

$2,604.65

/kit

Factory Shipped

$2,917.21

Save $312.56


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 14 Inch Rotor Diameter, Powder Coated

    See more details

    Key Specs

    MFG. Part #140-15409
    PositionFront
    Rotor Diameter14 Inch
    Rotor TypeVented
    Caliper PistonsSix
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    Wilwood 140-15409 Details

    Wilwood 140-15409 Specifications

    KEY SPECS
    MFG. Part #140-15409
    BrandWilwood
    PositionFront
    Rotor Diameter14 Inch
    Rotor TypeVented
    Caliper PistonsSix
    Caliper FinishPowder Coated
    ColorBlack
    Parking Brake ProvisionNo
    Minimum Recommended Wheel Diameter18 Inch
    Hardware IncludedYes
    Rotor StyleSlotted
    Spindle TypeDrop Spindle
    Front Rotor IncludedYes
    Front Rotor Diameter14 Inch
    Front Caliper IncludedYes
    Rear Caliper IncludedNo
    Front Spindles IncludedNo
    Master Cylinder IncludedNo
    Brake Booster IncludedNo
    Rear Rotor IncludedNo
    Front Caliper Piston Quantity6
    Bolt Pattern5 on 4.5" | 4.75"
    Front Caliper FinishPowder Coated
    GENERAL
    GTIN Code889545087758
    Rotor Thickness1.1"
    Stud Diameter0.52"
    Brake Pad MaterialBP-10
    Mount TypeRadial
    Total Piston Area4.04 sq. in.
    Piston TypeStainless
    Caliper TypeRadial
    Rotor FinishPlain
    Rotor Material TypeSpec-37 Iron
    BeddedNo
    BalancedYes
    Hat FinishBlack E-Coat
    Hat Bolt Circle 25 x 4.75
    Hat Bolt Circle 15 x 4.50
    Hat Material TypeAluminum
    Hat Offset Dimension1.75"
    Brake Lines IncludedNo
    Caliper ColorBlack
    Caliper Material TypeForged Aluminum
