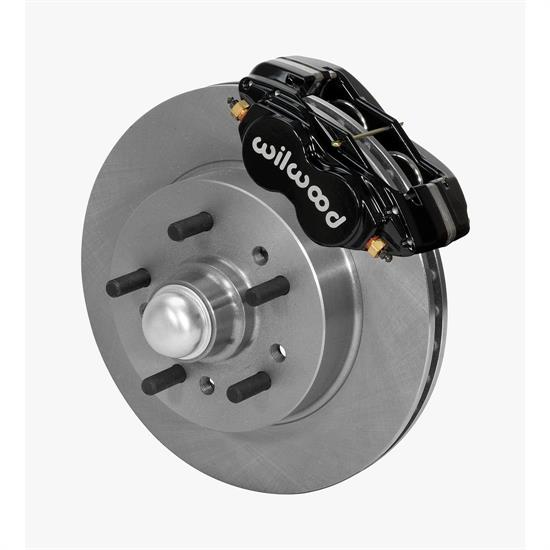

Wilwood 140-15318 Classic Series Dynalite Front Brake Kit

$103 Off

#83514015318

Wilwood 140-15318 Classic Series Dynalite Front Brake Kit

Name: Wilwood 140-15318 Classic Series Dynalite Front Brake Kit
Brand: Wilwood
SKU: 83514015318
Price: 858.26 USD
Availability: InStock

Write a Review

Ask a Question

Rotor / Caliper Type:

Undrilled

Undrilled / Red

$858.26

/kit

Factory Shipped

$961.25

Save $102.99

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 11.50 Inch Rotor Diameter, Black

See more details

Key Specs

MFG. Part #	140-15318
Position	Front
Wheel Bolt Pattern (in.)	5x4.75 in. \| 5x5 in.
Wheel Bolt Pattern (mm)	5x120.65 mm \| 5x127 mm
Rotor Diameter	11.50 Inch

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-15318 Details

Wilwood 140-15318 Classic Series Dynalite Front Brake KitWilwoodDisc Brake Kits140-15318

Application

1955-1957 Vehicles using CPP 2" Drop Spindle CP30102

Charts

Installation Instructions (PDF)

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (83514015318)

Everything You Need to Know About Converting Drum Brakes to Disc

Disc Brake Kits Installation Instructions (83514015318)

CA Prop 65

Wilwood 140-15318 Specifications

KEY SPECS
MFG. Part #	140-15318
Brand	Wilwood
Position	Front
Wheel Bolt Pattern (in.)	5x4.75 in. \| 5x5 in.
Wheel Bolt Pattern (mm)	5x120.65 mm \| 5x127 mm
Rotor Diameter	11.50 Inch
Rotor Type	Vented
Caliper Pistons	Four
Caliper Finish	Powder Coated
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	15 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Plain Face
Spindle Type	Drop Spindle
Front Rotor Included	Yes
Front Rotor Diameter	11.50 Inch
Front Caliper Included	Yes
Rear Caliper Included	No
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	No
Rear Rotor Included	No
Color	Black
Bolt Pattern	5 on 4.75" \| 5"
Front Caliper Piston Quantity	4
Front Caliper Finish	Powder Coated

GENERAL
Sold in Quantity	Kit
GTIN Code	889545086034
Rotor Thickness	1"
Brake Pad Material	BP-10
Mount Type	Lug
Total Piston Area	4.8 sq. in.
Piston Type	Stainless
Caliper Type	Lug
Rotor Finish	Plain
Rotor Material Type	Iron
Bedded	No
Balanced	No
Brake Lines Included	No
Caliper Color	Black
Caliper Material Type	Forged Aluminum

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1955-1957 Chevy Bel Air

1957 Chevy Del Ray

1955-1957 Chevy Nomad

1955-1957 Chevy One-Fifty Series

1955-1957 Chevy Sedan Delivery

1955-1957 Chevy Two-Ten Series
