Wilwood 140-15196-D Forged Dynalite Pro Series Front Brake Kit, Black

$103 Off

#83514015196D

Wilwood 140-15196-D Forged Dynalite Pro Series Front Brake Kit, Black

Name: Wilwood 140-15196-D Forged Dynalite Pro Series Front Brake Kit, Black
Brand: Wilwood
SKU: 83514015196D
Price: 1251.55 USD
Availability: InStock

Write a Review

Ask a Question

Rotor / Caliper Type:

Drilled

Undrilled

$1,251.55

/each

Factory Shipped

$1,354.33

Save $102.78

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 11 Inch Rotor Diameter, Powder Coated

See more details

Key Specs

MFG. Part #	140-15196-D
Position	Front
Wheel Bolt Pattern (in.)	5x4.5 in. \| 5x4.75 in.
Wheel Bolt Pattern (mm)	5x114.3 mm \| 5x120.65 mm
Rotor Diameter	11 Inch

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-15196-D Details

Wilwood 140-15196-D Forged Dynalite Pro Series Front Brake Kit, BlackWilwoodDisc Brake Kits140-15196-D

Charts

Assembly Instructions (PDF)

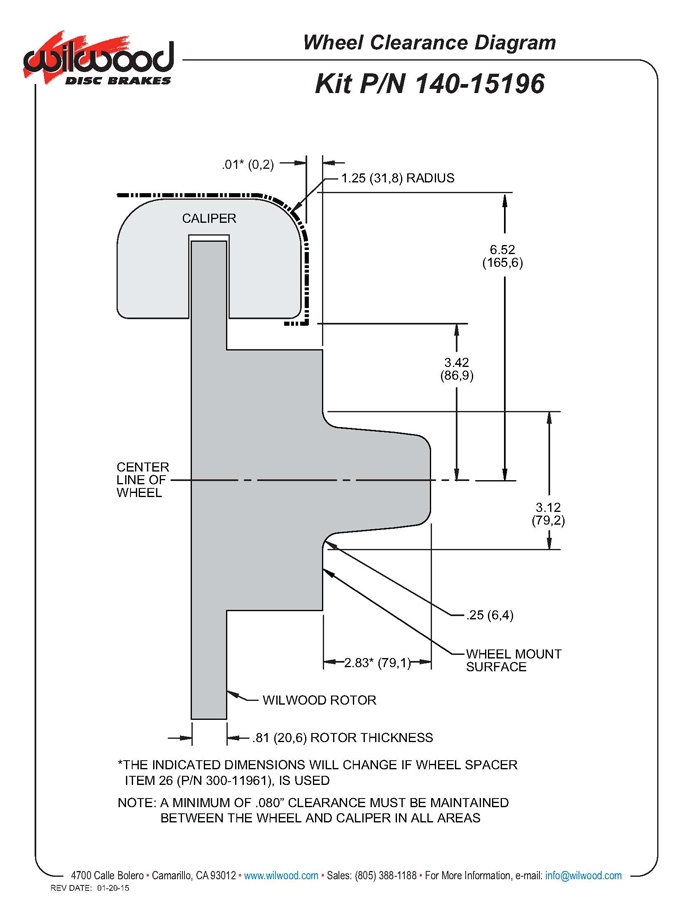

Wheel Clearance Diagram (PDF)

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (83514015196D)

Everything You Need to Know About Converting Drum Brakes to Disc

Wilwood 140-15196-D Specifications

KEY SPECS
MFG. Part #	140-15196-D
Brand	Wilwood
Position	Front
Wheel Bolt Pattern (in.)	5x4.5 in. \| 5x4.75 in.
Wheel Bolt Pattern (mm)	5x114.3 mm \| 5x120.65 mm
Rotor Diameter	11 Inch
Rotor Type	Vented
Caliper Pistons	Four
Caliper Finish	Powder Coated
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	14 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Drilled & Slotted
Spindle Type	Factory Drum Spindle
Front Rotor Included	Yes
Front Rotor Diameter	11 Inch
Front Caliper Included	Yes
Rear Caliper Included	No
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	Yes
Rear Rotor Included	No
Color	Black
Bolt Pattern	5 on 4.5" \| 4.75"
Front Caliper Piston Quantity	4
Front Caliper Finish	Powder Coated

GENERAL
Sold in Quantity	Kit
GTIN Code	889545075458
Rotor Thickness	0.81"
Mount Type	Lug
OE Hub Offset	0.04"
Total Piston Area	4.8 sq. in.
Piston Type	Stainless
Pad Area	6.36 sq. in.
Pad Volume	2.1 cu. in.
Brake Pad Compound	BP-10
Caliper Type	Lug
Rotor Finish	Black E-Coat
Rotor Material Type	Iron
Vane Count	30 Straight Vane
Bedded	No
Balanced	No
Brake Lines Included	No
Caliper Color	Black
Caliper Material Type	Forged Aluminum

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1965-1971 Chrysler 300

1965-1972 Chrysler New Yorker

1965-1972 Chrysler Newport

1965-1972 Chrysler Town & Country

1965 Dodge Custom

1965-1972 Dodge Monaco

1965-1972 Dodge Polara

1965-1972 Plymouth Fury

1968-1972 Plymouth Fury I

1965-1972 Plymouth Fury II

1965-1972 Plymouth Fury III

1972 Plymouth Gran Fury

1967 Plymouth VIP
