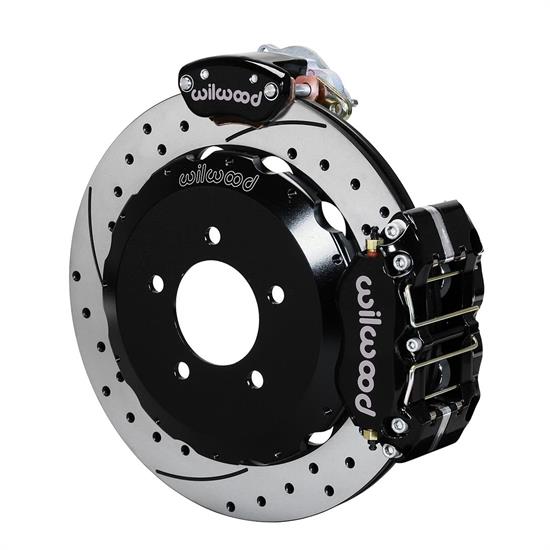

Wilwood 140-15138-D Dynapro Radial-MC4 Parking Brake Kit, Rear, Black

Name: Wilwood 140-15138-D Dynapro Radial-MC4 Parking Brake Kit, Rear, Black
Brand: Wilwood
SKU: 83514015138D
Price: 2288.54 USD
Availability: InStock

Write a Review

Ask a Question

Rotor / Caliper Type:

Drilled

Drilled / Red

$2,288.54

/each

Factory Shipped

$2,563.16

Save $274.62

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Rear Position, 12.88 Inch Rotor Diameter, Powder Coated

See more details

Key Specs

MFG. Part #	140-15138-D
Position	Rear
Wheel Bolt Pattern (in.)	5x4.5 in.
Wheel Bolt Pattern (mm)	5x114.3 mm
Rotor Diameter	12.88 Inch

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-15138-D Details

Dynapro 4 Radial-MC4 Rear Axle Kits replace the factory disc brakes and use the MC4 parking brake assembly as a compliment to front big brake upgrades on late model high performance vehicles. High capacity braking from the Dynapro Radial calipers, BP-10 compound pads, and oversized 12.88" rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on customized vehicles and all others with increased brake requirements.

OEM Rear End Axle
Radial Mount Type
Black Powder Coat
12.88" Rotor Diameter
17" Wheel Diameter

140-15138-D Instrucitons (PDF)

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Everything You Need to Know About Converting Drum Brakes to Disc

Wilwood 140-15138-D Specifications

KEY SPECS
MFG. Part #	140-15138-D
Brand	Wilwood
Position	Rear
Wheel Bolt Pattern (in.)	5x4.5 in.
Wheel Bolt Pattern (mm)	5x114.3 mm
Rotor Diameter	12.88 Inch
Rotor Type	Vented
Caliper Pistons	Four
Caliper Finish	Powder Coated
Parking Brake Provision	Yes
Minimum Recommended Wheel Diameter	17 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Drilled & Slotted
Front Rotor Included	No
Front Caliper Included	No
Rear Caliper Included	Yes
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	Yes
Rear Rotor Included	Yes
Bolt Pattern	5 on 4.5"
Finish	Powder Coated
Color	Black

GENERAL
Sold in Quantity	Each
GTIN Code	889545074475
Rotor Thickness	0.81"
Offset	0"
Mount Type	Radial
Brake Pad Compound	BP-10
Caliper Type	Narrow Dynapro Radial Mount
Rotor Finish	Black E-Coat
Rotor Material Type	Cast Iron
Vane Count	48 Curved Vane
Bedded	No
Balanced	No
Hat Type	Big Brake Hat - Flared Bell
Hat Finish	Black E-Coat
Hat Material Type	Aluminum
Hat Offset Dimension	2"
Hat Bolt Circle 1	5 x 4.50

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

2015-2018 Ford Mustang
