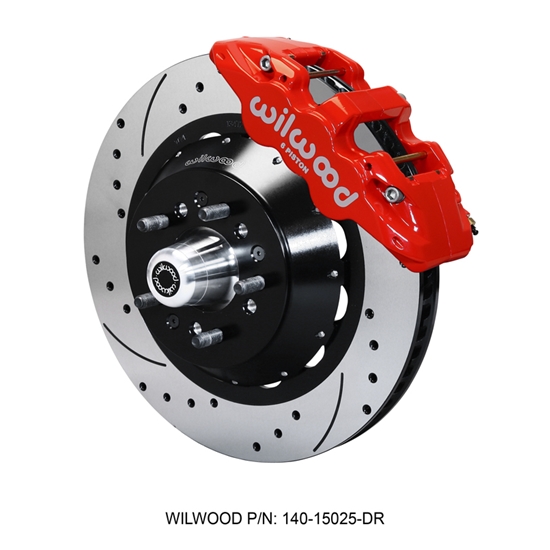

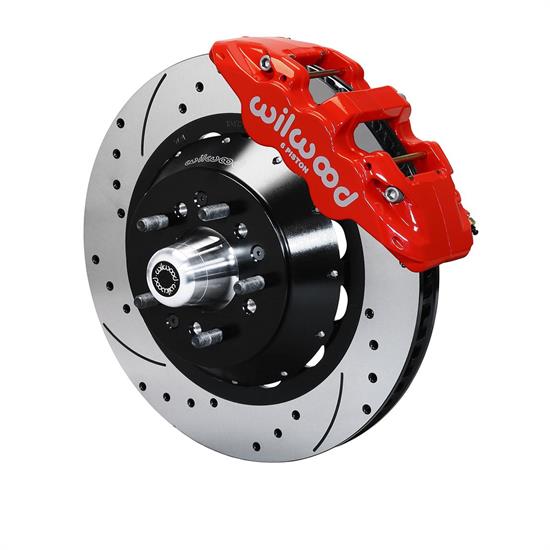

Wilwood 140-15025-DR AERO6 Big Brake Front Brake Kit, Radial, Red
Wilwood 140-15025-DR AERO6 Big Brake Front Brake Kit, Radial, Red

Wilwood 140-15025-DR AERO6 Big Brake Front Brake Kit, Radial, Red

Front Position, Dual: 5 on 4.5" | 4.75" Bolt Pattern, 15 Inch Rotor Diameter, Vented Rotor Type

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-15025-DR AERO6 Big Brake Front Brake Kit, Radial, Red
Wilwood 140-15025-DR AERO6 Big Brake Front Brake Kit, Radial, Red
Wilwood 140-15025-DR AERO6 Big Brake Front Brake Kit, Radial, Red
Wilwood 140-15025-DR AERO6 Big Brake Front Brake Kit, Radial, Red
X
Wilwood 140-15025-DR AERO6 Big Brake Front Brake Kit, Radial, Red
Wilwood 140-15025-DR AERO6 Big Brake Front Brake Kit, Radial, Red
Zoomed In Image
We estimate this item will ship on or before August 13th.
Part # 83514015025DR
$2,309.99
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Position:
Front
Bolt Pattern:
Dual: 5 on 4.5" | 4.75"
Rotor Diameter:
15 Inch
Rotor Type:
Vented
Caliper Pistons:
Six
Caliper Finish:
Powder Coated
Color:
Red
Parking Brake Provision:
No
MFG. Part #:
140-15025-DR
Minimum Recommended Wheel Diameter:
19 Inch
Rotor Thickness:
1.25"
Finish:
Powder Coated
Hardware Included:
Yes
Sold in Quantity:
Each
Spindle Type:
Factory Disc Spindle
Mount Type:
Radial
OE Hub Offset:
0.68"
Total Piston Area:
4.04 sq. in.
Piston Type:
Stainless
Pad Area:
11 sq. in.
Pad Volume:
5.2 cu. in.
Brake Pad Compound:
BP-10
Rotor Style:
Drilled and Slotted
Caliper Type:
AERO6
Rotor Finish:
Black E-Coat
Rotor Material Type:
Spec-37 Iron
Vane Count:
60 Curved Vane
Bedded:
No
Balanced:
Yes
Hat Type:
Big Brake Hat - Flared Bell
Hat Finish:
Black E-Coat
Hat Bolt Circle 2:
5 x 4.75
Hat Bolt Circle 1:
5 x 4.50
Stud Diameter 2:
0.52"
Hub Bolt Circle 2:
5 x 4.75"
Hub Bolt Circle 1:
5 x 4.50"
Hub Material:
Aluminum
Hat Material Type:
Aluminum
Hat Offset Dimension:
1.75"
GTIN Code:
889545073492
Front Rotor Included:
Yes
Front Rotor Diameter:
15 Inch
Rear Rotor Included:
No
Front Caliper Included:
Yes
Front Caliper Piston Quantity:
6
Front Caliper Finish:
Powder Coated Red
Rear Caliper Included:
No
Front Spindles Included:
No
Master Cylinder Included:
No
Brake Booster Included:
No

Info

Wilwood 140-15025-DR AERO6 Big Brake Front Brake Kit, Radial, RedWilwoodDisc Brake Kits140-15025-DR

Charts

Assembly Instructions (PDF)

Wheel Clearance Diagram (PDF)



Important Messages

  • This item ships directly from the manufacturer. It may take an additional 15 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
