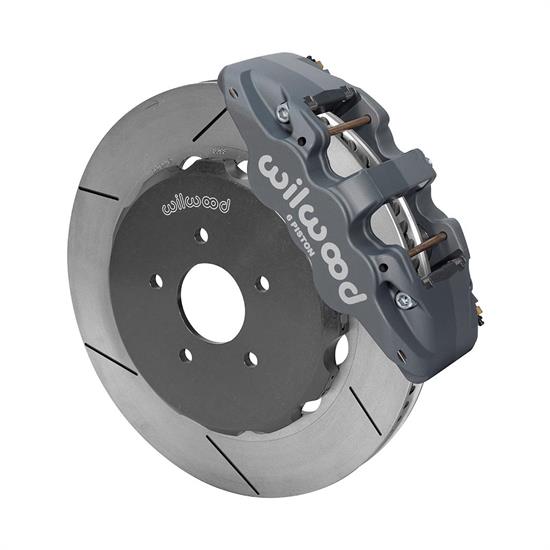

Wilwood 140-14816 AERO6 Big Brake Front Brake Kit, 14 Inch, Race
Wilwood 140-14816 AERO6 Big Brake Front Brake Kit, 14 Inch, Race

Wilwood 140-14816 AERO6 Big Brake Front Brake Kit, 14 Inch, Race

Black Anodized

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-14816 AERO6 Big Brake Front Brake Kit, 14 Inch, Race
Wilwood 140-14816 AERO6 Big Brake Front Brake Kit, 14 Inch, Race
Zoomed In Image
We estimate this item will ship on or before October 22nd.
Part # 83514014816
$2,387.49
kit
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 2 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Color:
Black Anodized
MFG. Part #:
140-14816
Minimum Recommended Wheel Diameter:
18 Inch
Mount Type:
Radial
Total Piston Area:
4.04 sq. in.
Piston Type:
Thermlock
Pad Area:
11.1 sq. in.
Pad Volume:
6.6 cu. in.
Compound:
BP-30
Caliper Type:
6 - Type III Ano
Rotor Finish:
Plain
Rotor Material Type:
Spec-37 Iron
Vane Count:
72 Curved Vane
Bedded:
No
Balanced:
Yes
Hat Type:
Big Brake Dynamic Hat- Short Offset
Hat Bolt Circle 1:
5 x 4.50
Rotor Hat Material:
Aluminum
Front caliper Piston Quantity:
6
Front Spindles Included:
No
Master Cylinder Included:
No
Brake Booster Included:
No
Brake Lines Included:
Yes

Info

These AERO6 calipers from Wilwood were designed for the specific purpose of providing big capacity braking with large diameter rotors for heavy weight and extreme duty vehicles. For cars, it’s the biggest of the big providing big brake performance for show and dual purpose street and track vehicles. For trucks and SUV’s, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function.

*NOTE-Road Race Kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear. Kit may fit 18" wheels, check with clearance diagram in kit installation instructions before purchase.

Schematic (JPEG)

Installation Instructions (PDF)

Kit Summary:

  • Spindle Type: Factory Disc Spindle
  • Mount Type: Radial
  • Caliper Type: 6 Type III Ano Colored Powder Coated
  • Rotor Diameter: 14 Inch
  • Wheel Diameter: 18 Inch

Calipers- 120-13300 , 120-13299

  • Type: AERO6
  • Finish: Type III Ano
  • Piston Count: 6
  • Piston Type: Thermlock
  • Mount Type: Radial
  • Pad Compound: BP-30

Rotors- 160-8399 , 160-8398

  • Type: GT 72 Curved Vane
  • Style: GT Slotted
  • Surface Finish: Plain
  • Material: Spec-37 Iron
  • Outside Diameter: 14"
  • Width: 1.25"
  • Vane Count: 72 CV
  • Design Type: GT
  • Dynamically Balanced: Yes

Rotor Hats - 170-9289

  • Type: Big Brake Dynamic Hat - Short Offset
  • Material: Aluminum
  • Finish Color: Type III Anodize
  • Hat Offset: 0.54"
  • Bolt Circle 1: 5 x 4.50"
  • Stud Diameter BC 1: 0.52"

Application

This brake kit is compatible with the following vehicles:

  • Infiniti G35 2007 G35 2 Door RWD
  • Infiniti G35 2003 G35 All
  • Infiniti G35 2004-2006 G35 All RWD
  • Nissan 350Z 2003-2009 w/ 4 Piston Front Calipers
  • Nissan 350Z 2003-2009 w/ Single Piston Front Calipers

Notes

*Note-This hub offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle. Check the wheel clearance diagram in the installation instructions below to verify you have adequate wheel clearance for this kit.

Some parts are not legal for use in California or other states with similar laws/regulations
