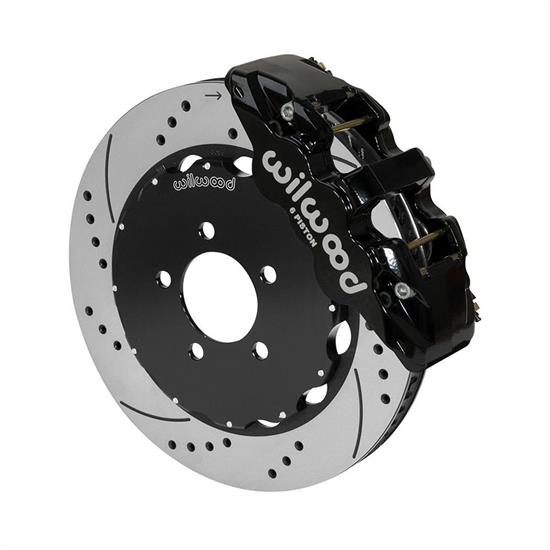

Wilwood 140-14682-D AERO6 Big Brake Front Brake Kit, Radial,Black
Drilled / RedUndrilledUndrilled / Red
$2,595.99
/each
Factory Shipped
$2,907.51
Save $311.52
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
| MFG. Part # | 140-14682-D |
| Position | Front |
| Rotor Diameter | 14 Inch |
| Rotor Type | Vented |
| Caliper Pistons | Six |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyWilwood 140-14682-D Details
Wilwood 140-14682-D Details
Wilwood 140-14682-D AERO6 Big Brake Front Brake Kit, Radial,BlackWilwoodDisc Brake Kits140-14682-D
Application
- 2003-2011 Ford Crown Victoria All
- 2003-2011 Lincoln Town Car All
- 2003-2011 Mercury Grand Marquis All
- 2003-2004 Mercury Marauder All
Charts
Specs
Kit Summary:
- Spindle Type: Factory Disc Spindle
- Mount Type: Radial
- Caliper Type: 6 - Black Powder Coat
- Rotor Diameter: 14 Inch
- Wheel Diameter: 18 Inch
Calipers- 120-13294-BK , 120-13293-BK
- Type: AERO6
- Finish: Black Powder Coat
- Piston Count: 6
- Piston Type: Stainless
- Mount Type: Radial
- Pad Compound: BP-10
Rotors- 160-8397-BK , 160-8396-BK
- Type: SRP Drilled Rotor
- Style: SRP Drilled & Slotted
- Surface Finish: Black Electro Coat
- Material: Spec-37 Iron
- Outside Diameter: 14"
- Width: 1.25"
- Vane Count: 72 CV
- Design Type: SRP-BLK
- Dynamically Balanced: Yes
Rotor Hats - 170-9289
- Type: Big Brake Hat - Short Offset
- Material: Aluminum
- Finish Color: Black E-Coat
- Hat Offset: 0.41"
- Bolt Circle: 5 x 4.50"
- Stud Diameter BC: 0.58"
Guides & Documents
Wilwood 140-14682-D Specifications
Wilwood 140-14682-D Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 140-14682-D |
| Brand | Wilwood |
| Position | Front |
| Rotor Diameter | 14 Inch |
| Rotor Type | Vented |
| Caliper Pistons | Six |
| Caliper Finish | Powder Coated |
| Color | Black |
| Parking Brake Provision | No |
| Minimum Recommended Wheel Diameter | 18 Inch |
| Rotor Shape | Round |
| Hardware Included | Yes |
| Rotor Style | Drilled & Slotted |
| Spindle Type | Factory Disc Spindle |
| Front Rotor Included | Yes |
| Front Rotor Diameter | 14 Inch |
| Front Caliper Included | Yes |
| Rear Caliper Included | No |
| Front Spindles Included | No |
| Master Cylinder Included | No |
| Brake Booster Included | No |
| Rear Rotor Included | No |
| Bolt Pattern | 5 on 4.5" |
| Front Caliper Piston Quantity | 6 |
| Front Caliper Finish | Powder Coated |
| GENERAL | |
| Sold in Quantity | Kit |
| GTIN Code | 889545082548 |
| Rotor Thickness | 1.25" |
| Mount Type | Radial |
| Total Piston Area | 5.4 sq. in. |
| Piston Type | Stainless |
| Pad Area | 11.1 sq. in. |
| Pad Volume | 5.2 cu. in. |
| Caliper Type | Radial |
| Rotor Material Type | Spec-37 Iron |
| Vane Count | 72 Curved Vane |
| Bedded | No |
| Balanced | Yes |
| Hat Type | Big Brake Hat - Short Offset |
| Hat Finish | Black E-Coat |
| Rotor Hat Material | Aluminum |
| Brake Lines Included | No |
| Caliper Color | Black |
| Caliper Material Type | Forged Aluminum |
Ratings & Reviews
Ratings & Reviews
Fitment
Fitment
2003-2011 Ford Crown Victoria
2003-2004 Ford Grand Marquis
2003-2011 Lincoln Town Car
2003-2011 Mercury Grand Marquis
2003-2004 Mercury Marauder
