$198 Off

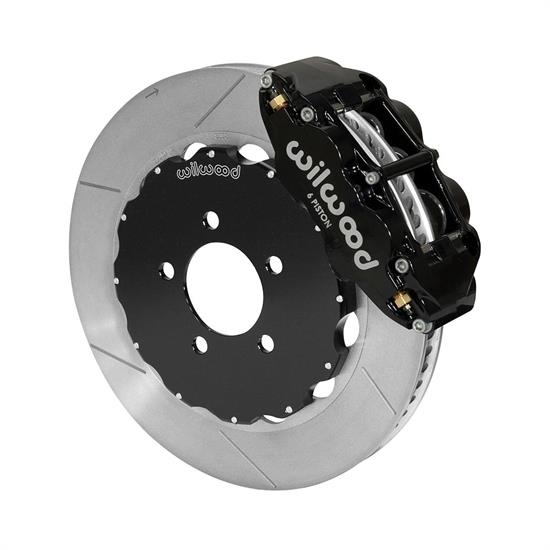

Wilwood 140-14681 Forged Narrow Superlite 6R Big Brake Front Kit

$198 Off

#83514014681

Wilwood 140-14681 Forged Narrow Superlite 6R Big Brake Front Kit

Name: Wilwood 140-14681 Forged Narrow Superlite 6R Big Brake Front Kit
Brand: Wilwood
SKU: 83514014681
Price: 2411.9 USD
Availability: InStock

Write a Review

Ask a Question

Rotor / Caliper Type:

Undrilled

Drilled Drilled / Red Undrilled / Red

$2,411.90

/kit

Factory Shipped

$2,609.98

Save $198.08

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 14 Inch Rotor Diameter, Powder Coated

See more details

Key Specs

MFG. Part #	140-14681
Position	Front
Wheel Bolt Pattern (in.)	5x4.5 in.
Wheel Bolt Pattern (mm)	5x114.3 mm
Rotor Diameter	14 Inch

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-14681 Details

Wilwood 140-14681 Forged Narrow Superlite 6R Big Brake Front KitWilwoodDisc Brake Kits140-14681

Charts

Installation Instructions (PDF)

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (83514014681)

Everything You Need to Know About Converting Drum Brakes to Disc

Disc Brake Kits Installation Instructions (83514014681)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Wilwood 140-14681 Specifications

KEY SPECS
MFG. Part #	140-14681
Brand	Wilwood
Position	Front
Wheel Bolt Pattern (in.)	5x4.5 in.
Wheel Bolt Pattern (mm)	5x114.3 mm
Rotor Diameter	14 Inch
Rotor Type	Vented
Caliper Pistons	Six
Caliper Finish	Powder Coated
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	18 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Slotted
Spindle Type	Factory Disc Spindle
Front Rotor Included	Yes
Front Rotor Diameter	14 Inch
Front Caliper Included	Yes
Rear Caliper Included	No
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	Yes
Rear Rotor Included	No
Bolt Pattern	5 on 4.5"
Color	Black
Front Caliper Piston Quantity	6
Front Caliper Finish	Powder Coated

GENERAL
GTIN Code	889545082494
Rotor Thickness	1.25"
Stud Diameter	0.58"
Brake Pad Material	BP-10
Mount Type	Radial
Total Piston Area	4.86 sq. in.
Piston Type	Stainless
Caliper Type	Radial
Rotor Finish	Plain
Rotor Material Type	Spec-37 Iron
Bedded	No
Balanced	Yes
Hat Finish	Black E-Coat
Hat Material Type	Aluminum
Hat Offset Dimension	0.41"
Brake Lines Included	No
Caliper Color	Black
Caliper Material Type	Forged Aluminum
Hat Bolt Circle 1	5 x 4.50

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

2003-2011 Ford Crown Victoria

2003-2011 Lincoln Town Car

2003-2011 Mercury Grand Marquis

2003-2004 Mercury Marauder
