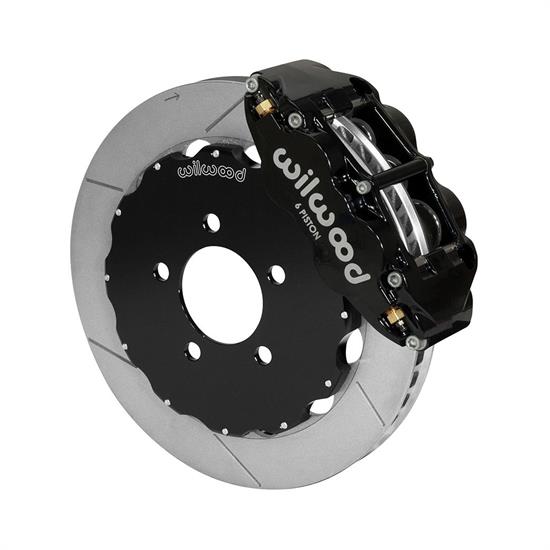

Wilwood 140-14680 Forged Narrow Superlite 6R Big Brake Front Kit
Wilwood 140-14680 Forged Narrow Superlite 6R Big Brake Front Kit
Front Position, 5 on 4.5" Bolt Pattern, 12.88 Inch Rotor Diameter, Vented Rotor Type, Black
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle
Wilwood 140-14680 Forged Narrow Superlite 6R Big Brake Front Kit
X
We estimate this item will ship on or before April 29th.
Part # 83514014680
$1,494.99
kit
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
Details
Position:
Front
Bolt Pattern:
5 on 4.5"
Rotor Diameter:
12.88 Inch
Rotor Type:
Vented
Caliper Pistons:
Six
Caliper Finish:
Powder Coated
Color:
Black
Parking Brake Provision:
No
MFG. Part #:
140-14680
Minimum Recommended Wheel Diameter:
17 Inch
Rotor Thickness:
1.25"
Stud Diameter:
0.58"
Brake Pad Material:
BP-10
Spindle Type:
Factory Disc Spindle
Mount Type:
Radial
Total Piston Area:
4.86 sq. in.
Piston Type:
Stainless
Rotor Style:
Slotted
Rotor Finish:
Plain
Rotor Material Type:
Spec-37 Iron
Bedded:
No
Balanced:
Yes
Hat Finish:
Black E-Coat
Hat Bolt Circle 1:
5 x 4.50
Hat Material Type:
Aluminum
Hat Offset Dimension:
0.41"
GTIN Code:
889545082456
Front Rotor Included:
Yes
Front Rotor Diameter:
12.88 Inch
Rear Rotor Included:
No
Front Caliper Included:
Yes
Front Caliper Piston Quantity:
6
Front Caliper Finish:
Powder Coated Black
Rear Caliper Included:
No
Front Spindles Included:
No
Master Cylinder Included:
No
Brake Booster Included:
No
Info
Wilwood 140-14680 Forged Narrow Superlite 6R Big Brake Front KitWilwoodDisc Brake Kits140-14680
Charts
Installation Instructions (PDF)Important Messages
- This item ships directly from the manufacturer. It may take an additional 6 business days for Wilwood to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
