#83514014558R

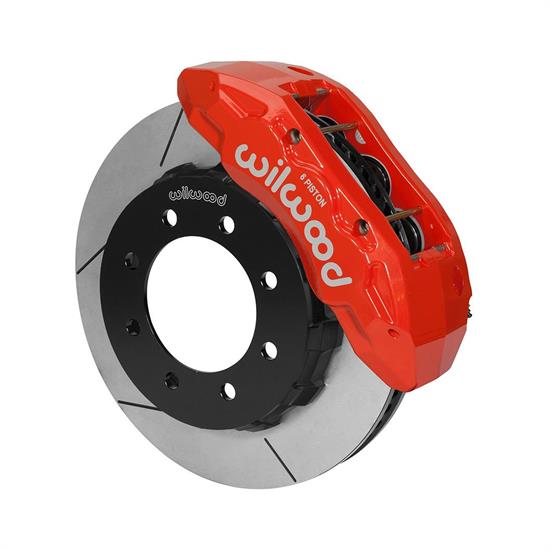

Wilwood 140-14558-R TX6R Big Brake Truck Front Brake Kit
$2,870.89
kit
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before October 16th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Front Position, 8 on 170mm Bolt Pattern, Powder Coated
See more details
Key Specs
| Position | Front |
| Bolt Pattern | 8 on 170mm |
| Rotor Diameter | 15 Inch |
| Rotor Type | Vented |
| Caliper Pistons | Six |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyWilwood 140-14558-R Details
Wilwood 140-14558-R Details
Wilwood 140-14558-R TX6R Big Brake Truck Front Brake KitWilwoodDisc Brake Kits140-14558-R
Charts
Guides & Documents
Wilwood 140-14558-R Specifications
Wilwood 140-14558-R Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 140-14558-R |
| Brand | Wilwood |
| Position | Front |
| Bolt Pattern | 8 on 170mm |
| Rotor Diameter | 15 Inch |
| Rotor Type | Vented |
| Caliper Pistons | Six |
| Caliper Finish | Powder Coated |
| Color | Red |
| Parking Brake Provision | No |
| Minimum Recommended Wheel Diameter | 20 Inch |
| Hardware Included | Yes |
| Spindle Type | Factory Disc Spindle |
| Rotor Style | Slotted |
| Front Rotor Included | Yes |
| Front Rotor Diameter | 15 Inch |
| Front Caliper Included | Yes |
| Front Caliper Piston Quantity | 6 |
| Front Caliper Finish | Powder Coated Red |
| Rear Caliper Included | No |
| Front Spindles Included | No |
| Master Cylinder Included | No |
| Brake Booster Included | No |
| Rear Rotor Included | No |
| GENERAL | |
| Rotor Thickness | 1.5" |
| Stud Diameter | 0.64" |
| Brake Pad Material | BP-20 |
| Mount Type | Radial |
| Total Piston Area | 8.7 sq. in. |
| Piston Type | Stainless |
| Caliper Type | Radial |
| Rotor Finish | Black E-Coat |
| Rotor Material Type | Spec-37 Iron |
| Bedded | No |
| Balanced | Yes |
| Hat Finish | Black E-Coat |
| Hat Bolt Circle 1 | 8 x 6.692 |
| Hat Material Type | Aluminum |
| Hat Offset Dimension | 1.34" |
| GTIN Code | 889545081374 |
| Brake Lines Included | Yes |
| Caliper Color | Red |
| Caliper Material Type | Forged Aluminum |
