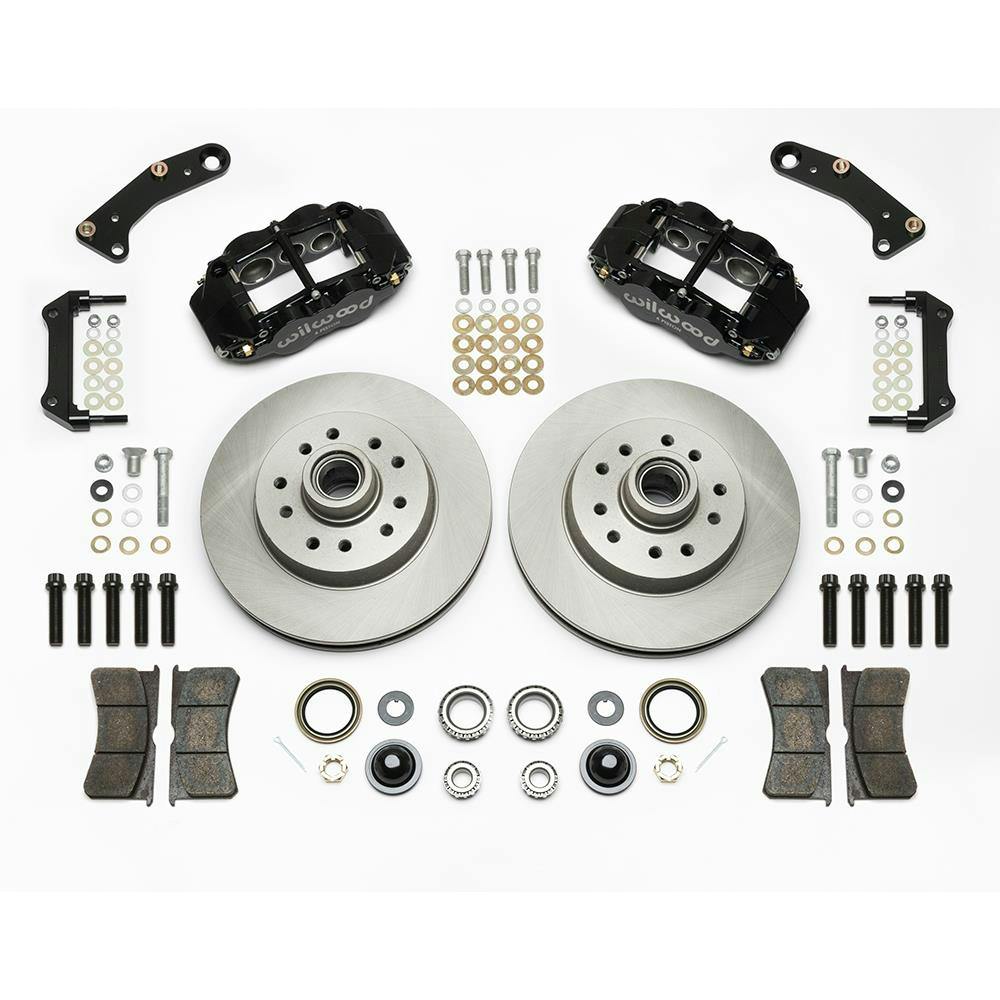

Wilwood 140-14526 Classic Series Forged Narrow Front Brake Kit

$129 Off

#83514014526

Wilwood 140-14526 Classic Series Forged Narrow Front Brake Kit

Name: Wilwood 140-14526 Classic Series Forged Narrow Front Brake Kit
Brand: Wilwood
SKU: 83514014526
Price: 1075.03 USD
Availability: InStock

Write a Review

Ask a Question

Rotor / Caliper Type:

Undrilled

Undrilled / Red

$1,075.03

/kit

Factory Shipped

$1,204.03

Save $129.00

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 11.86 inch Rotor Diameter, Black

See more details

Key Specs

MFG. Part #	140-14526
Position	Front
Wheel Bolt Pattern (in.)	5x4.75 in. \| 5x5 in.
Wheel Bolt Pattern (mm)	5x120.65 mm \| 5x127 mm
Rotor Diameter	11.86 inch

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-14526 Details

Wilwood 140-14526 Classic Series Forged Narrow Front Brake KitWilwoodDisc Brake Kits140-14526

Charts

Installation Instructions (PDF)

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (83514014526)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Wilwood 140-14526 Specifications

KEY SPECS
MFG. Part #	140-14526
Brand	Wilwood
Position	Front
Wheel Bolt Pattern (in.)	5x4.75 in. \| 5x5 in.
Wheel Bolt Pattern (mm)	5x120.65 mm \| 5x127 mm
Rotor Diameter	11.86 inch
Rotor Type	Vented
Caliper Pistons	Six
Caliper Finish	Powder Coated
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	15 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Plain Face
Spindle Type	Factory Drum Spindle
Front Rotor Included	Yes
Front Rotor Diameter	11.86 inch
Front Caliper Included	Yes
Rear Caliper Included	No
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	Yes
Rear Rotor Included	No
Color	Black
Front Caliper Piston Quantity	6
Bolt Pattern	5 on 4.75" \| 5"
Front Caliper Finish	Powder Coated

GENERAL
GTIN Code	889545080742
Rotor Thickness	1.25"
Brake Pad Material	BP-10
Mount Type	Lug
Total Piston Area	4.86 sq. in.
Piston Type	Stainless
Caliper Type	Radial
Rotor Finish	Plain
Rotor Material Type	Iron
Bedded	No
Balanced	No
Brake Lines Included	No
Caliper Color	Black
Caliper Material Type	Forged Aluminum

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1960-1963 Chevy C10

1960-1963 Chevy C10 Panel

1960-1963 Chevy Suburban

1960-1963 GMC 1000 Series

1960-1963 GMC Suburban
