Wilwood 140-14304 Forged Dynalite Brake Kit, 1988-00 Civic
Wilwood 140-14304 Forged Dynalite Brake Kit, 1988-00 Civic

Wilwood 140-14304 Forged Dynalite Brake Kit, 1988-00 Civic

Front Position, 4 on 3.93" Bolt Pattern, 11 Inch Rotor Diameter, Vented Rotor Type, Gray

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-14304 Forged Dynalite Brake Kit, 1988-00 Civic
Wilwood 140-14304 Forged Dynalite Brake Kit, 1988-00 Civic
Zoomed In Image
We estimate this item will ship on or before October 24th.
Part # 83514014304
$1,048.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 2 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Position:
Front
Bolt Pattern:
4 on 3.93"
Rotor Diameter:
11 Inch
Rotor Type:
Vented
Caliper Pistons:
Four
Caliper Finish:
Type III Anodized
Color:
Gray
MFG. Part #:
140-14304
Minimum Recommended Wheel Diameter:
15 Inch
Rotor Thickness:
0.81"
Sold in Quantity:
Each
Spindle Type:
Factory Disc Spindle
Mount Type:
Lug
Total Piston Area:
4.12 sq. in.
Piston Type:
Thermlock
Pad Area:
6.36 sq. in.
Pad Volume:
2.1 cu. in.
Compound:
PolyMatrix H
Rotor Style:
Slotted
Rotor Finish:
Plain
Rotor Material Type:
Spec-37 Iron
Vane Count:
72 Straight Vane
Bedded:
No
Balanced:
No
Hat Type:
Drag Hat- Shallow Offset
Hat Finish:
Black E-Coat
Hat Bolt Circle 1:
4 x 3.93

Info

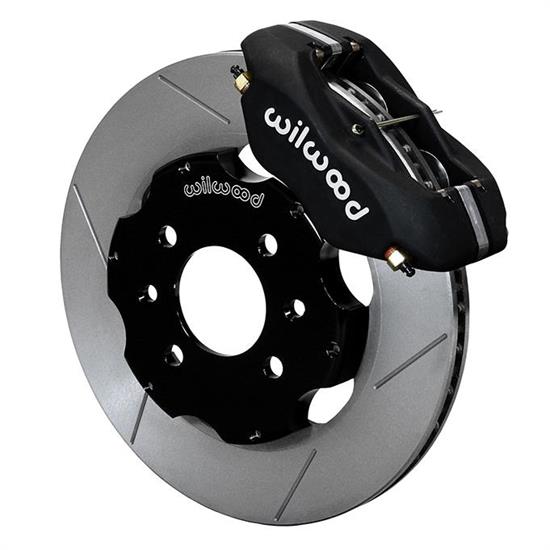

The components in this kit have been selected to deliver consistent start to finish performance on vehicles built for dedicated road course competition. No detail has been overlooked. Forged aluminum Dynalite/ST calipers, fortified with Thermlock® pistons and internal knock-back damping springs, provide high efficiency clamping force, unsurpassed heat management, and the piston retraction control that all contribute to a firm and consistent pedal through any event.

Oversized 11" diameter Spec37 alloy GT series 72 vane two-piece rotor assemblies mount to the OE hub with aluminum hats adding overall system brake leverage, cooling capacity, and thermal stability in this compact yet sturdy weight saving configuration. The performance package is capped with high friction, high temperature, and long wearing Wilwood PolyMatrix H compound race pads. All premium grade fastener kits include rotor bolts and caliper to mount bracket bolts that are pre-drilled for safety lock wire.

  • Black anodized caliper
  • 11" rotor diameter
  • fits 1988-2000 Honda Civic

Installation Instructions (PDF)

NOTES:

This kit requires spindles from vehicles originally equipped with 240mm, 9.45" diameter rotors. On some models equipped with factory power brakes, upgrading to a larger bore master cylinder in the 15/16" to 1" range may be necessary. Vehicles converted to manual brakes typically have best results with a 3/4" or 13/16" bore master cylinder, all based on driver preference for travel and effort required. This kit has been verified for fitment in select 15 x 7" racing wheels configured to accommodate oversized brake packages. Interference may occur with wheels designed only around OE spec brake components. Please refer to the wheel clearance diagram to determine fitment with your specific wheels.

Some parts are not legal for use in California or other states with similar laws/regulations
