Wilwood 140-14190 Forged Superlite 4 Front Brake Kit, Black Anodized

$113 Off

#83514014190

Wilwood 140-14190 Forged Superlite 4 Front Brake Kit, Black Anodized

Designed for Ford Trucks from 1948 to 1956
Features a one piece 11.72" x 1.19” rotor and hub assembly
Requires no modifications for installation, and provide plenty of clearance inside popular 15" wheels

$941.45

/each

Factory Shipped

$1,054.42

Save $112.97

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 11.72 Inch Rotor Diameter, Anodized

Designed for Ford Trucks from 1948 to 1956
Features a one piece 11.72" x 1.19” rotor and hub assembly
Requires no modifications for installation, and provide plenty of clearance inside popular 15" wheels
Can be used with either manual or power boost master cylinders
Comes complete with calipers, rotors and hub assembly, brackets, hardware and line kit

See more details

Key Specs

MFG. Part #	140-14190
Position	Front
Wheel Bolt Pattern (in.)	5x5.5 in.
Wheel Bolt Pattern (mm)	5x139.7 mm
Rotor Diameter	11.72 Inch

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-14190 Details

Wilwood 140-14190 Forged Superlite 4 Front Brake Kit, Black AnodizedWilwoodDisc Brake Kits140-14190

Charts

Assembly Instructions (PDF)

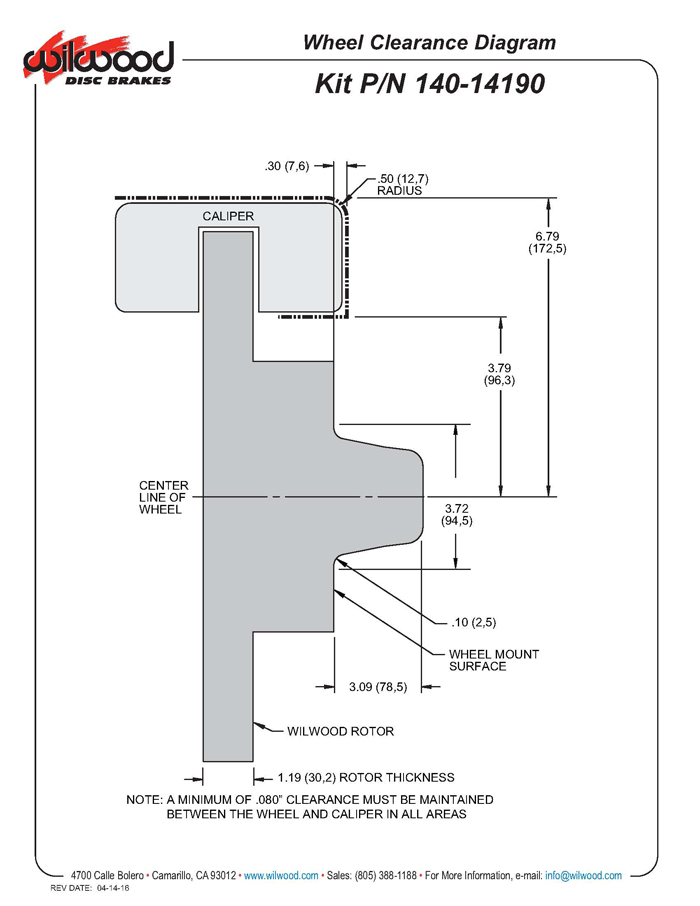

Wheel Clearance Diagram (PDF)

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (83514014190)

Wilwood 140-14190 Specifications

KEY SPECS
MFG. Part #	140-14190
Brand	Wilwood
Position	Front
Wheel Bolt Pattern (in.)	5x5.5 in.
Wheel Bolt Pattern (mm)	5x139.7 mm
Rotor Diameter	11.72 Inch
Rotor Type	Vented
Caliper Pistons	Four
Caliper Finish	Anodized
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	15 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Plain Face
Spindle Type	Factory Drum Spindle
Front Rotor Included	Yes
Front Rotor Diameter	11.75 Inch
Front Caliper Included	Yes
Rear Caliper Included	No
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	Yes
Rear Rotor Included	No
Bolt Pattern	5 on 5.5"
Color	Gray
Front Caliper Piston Quantity	4
Front Caliper Finish	Anodized

GENERAL
GTIN Code	889545077254
Rotor Thickness	1.19"
Mount Type	Lug
OE Hub Offset	-0.06"
Total Piston Area	4.8 sq. in.
Piston Type	Stainless
Pad Area	8.2 sq. in.
Pad Volume	4.9 cu. in.
Brake Pad Compound	BP-10
Caliper Type	Lug
Rotor Finish	Plain
Rotor Material Type	Iron
Bedded	No
Balanced	No
Brake Lines Included	Yes
Caliper Color	Gray
Caliper Material Type	Forged Aluminum

Ratings & Reviews

Be the first to write a review.

Questions & Answers

2 Questions • 2 Answers

Sort Questions

Do you sell this kit without the rotors

by Mitch

• 7 years ago

1 answer

View Answer

what lug pattern does it have 5 - 4.5

by john

• 7 years ago

1 answer

View Answer

2 of 2 questions shown

Fitment

1953-1956 Ford F-100

1948-1952 Ford F1
