Add to Cart
$1,979.99

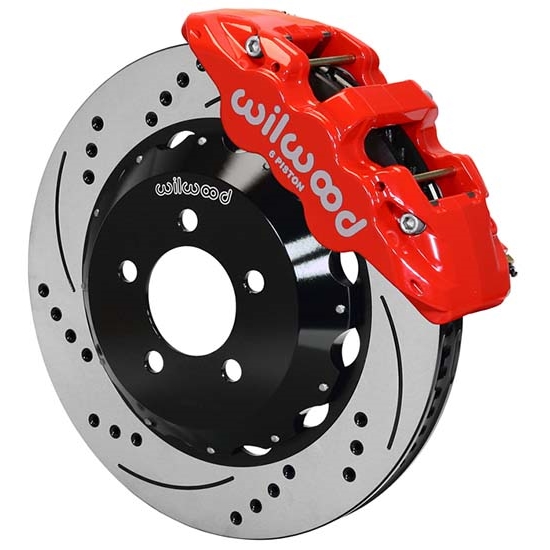

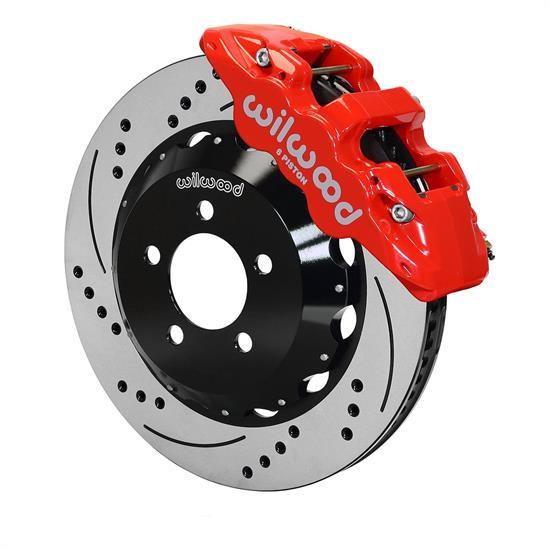

Wilwood 140-14067-DR AERO6 14.25 Inch Drilled Front Brake Kit, Red
Wilwood 140-14067-DR AERO6 14.25 Inch Drilled Front Brake Kit, Red

Wilwood 140-14067-DR AERO6 14.25 Inch Drilled Front Brake Kit, Red

Front Position, 5 on 115mm Bolt Pattern, 14.25 Inch Rotor Diameter, Vented Rotor Type, Red

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-14067-DR AERO6 14.25 Inch Drilled Front Brake Kit, Red
Wilwood 140-14067-DR AERO6 14.25 Inch Drilled Front Brake Kit, Red
Wilwood 140-14067-DR AERO6 14.25 Inch Drilled Front Brake Kit, Red
Wilwood 140-14067-DR AERO6 14.25 Inch Drilled Front Brake Kit, Red
Wilwood 140-14067-DR AERO6 14.25 Inch Drilled Front Brake Kit, Red
X
Wilwood 140-14067-DR AERO6 14.25 Inch Drilled Front Brake Kit, Red
Wilwood 140-14067-DR AERO6 14.25 Inch Drilled Front Brake Kit, Red
Wilwood 140-14067-DR AERO6 14.25 Inch Drilled Front Brake Kit, Red
Zoomed In Image
We estimate this item will ship on or before June 9th.
Part # 83514014067DR
$1,979.99
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Position:
Front
Bolt Pattern:
5 on 115mm
Rotor Diameter:
14.25 Inch
Rotor Type:
Vented
Caliper Pistons:
Six
Caliper Finish:
Powder Coated
Color:
Red
MFG. Part #:
140-14067-DR
Minimum Recommended Wheel Diameter:
18 Inch
Rotor Thickness:
1.25"
Finish:
Powder Coated
Hardware Included:
Yes
Sold in Quantity:
Each
Notes:
Kits will not fit AWD (All Wheel Drive), SRT-8, Police or Heavy Duty Brake option vehicles.
Spindle Type:
Factory Disc Spindle
Mount Type:
Radial
Total Piston Area:
5.4 sq. in.
Piston Type:
Stainless
Pad Area:
11 sq. in.
Pad Volume:
5.2 cu. in.
Brake Pad Compound:
BP-10
Rotor Style:
Drilled and Slotted
Caliper Type:
AERO6
Rotor Finish:
Black E-Coat
Rotor Material Type:
Spec-37 Iron
Vane Count:
72 Curved Vane
Bedded:
No
Balanced:
Yes
Hat Type:
Big Brake Hat - Flared Bell
Hat Finish:
Black E-Coat
Hat Bolt Circle 1:
5 X4.53
Hat Material Type:
Aluminum
GTIN Code:
889545072105

Info

These AERO6 Big Brake Front Axle Kits from Wilwood are fully compatible with OE master cylinder output and ABS function. DIrectional staggered vane 14.25" rotors provide maxium cooling for sustained high heat endurance. AERO6 calipers are designed for the specific purpose of providing big capacity braking with large diameter rotors for heavy weight and extreme duty vehicles. It's the biggest of the big providing big brake performance for show and dual purpose street and track vehicles.

Wheel Clearance (GIF)

Kit Summary:

  • Spindle Type: Factory Disc Spindle
  • Mount Type: Radial
  • Caliper Type: 6-Red Powder coated
  • Rotor Diameter: 14.25 Inch
  • Wheel Diameter: 18 Inch
Calipers120-13294-RD120-13293-RD
  • Type: AERO6
  • Finish: Red Powder Coat
  • Piston Count: 6
  • Piston Type: Stainless
  • Mount Type: Radial
  • Pad Compound: BP-10

Rotors- 160-11314-BK160-11313-BK

  • Type: SRP Drilled Rotor
  • Style: SRP Drilled & Slotted
  • Surface Finish: Black Electro Coat
  • Material: Iron
  • Outside Diameter: 14.25"
  • Width: 1.25"
  • Vane Count: 72 CV
  • Design Type: SRP-BLK
  • Dynamically Balanced: Yes

Rotor Hats - 170-11766

  • Type: Big Brake Hat- Flared Bell
  • Material: Aluminum
  • Finish Color: Black E-Coat
  • Hat Offset: 1.2"
  • Bolt Circle 1: 5 x 4.53"
  • Stud Diameter BC 1: .63"

Application

  • Dodge Challenger 2014 R/T Classic
  • Dodge Challenger 2014 Rallye Redline
  • Dodge Challenger 2014-2015 SXT (STD Brakes)
  • Dodge Charger 2014-2015 Pursuit
  • Dodge Charger 2015 R/T
  • Dodge Charger 2014 R/T (AWD)
  • Dodge Charger 2014 R/T (RWD)
  • Dodge Charger 2014-2015 SE
  • Dodge Charger 2015 SXT
  • Dodge Charger 2014 SXT (AWD)
  • Dodge Charger 2014 SXT (RWD)
  • Dodge Charger 2014 SXT Plus

Charts

Installation Instructions(PDF)

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 2 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
