$268 Off

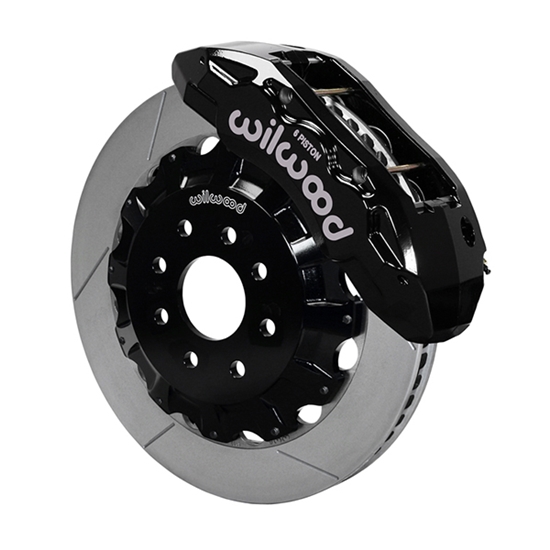

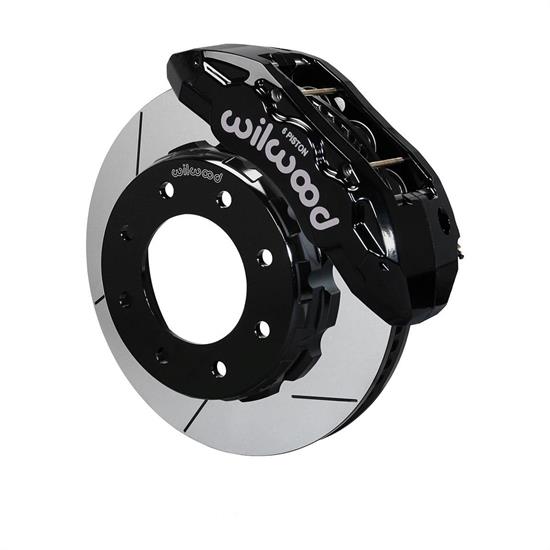

Wilwood 140-13873 TX6R Big Brake Truck Front Brake Kit, Black

$268 Off

Wilwood 140-13873 TX6R Big Brake Truck Front Brake Kit, Black
Wilwood

|

#83514013873

Wilwood 140-13873 TX6R Big Brake Truck Front Brake Kit, Black

Rotor / Caliper Type:

Slotted / Black

Slotted / AnodizeSlotted / Red

$3,268.50

/each

Factory Shipped

$3,536.93

Save $268.43


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 15 Inch Rotor Diameter, Powder Coated

    See more details

    Key Specs

    MFG. Part #140-13873
    PositionFront
    Wheel Bolt Pattern (in.)8x6.5 in.
    Wheel Bolt Pattern (mm)8x165.1 mm
    Rotor Diameter15 Inch
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    Wilwood 140-13873 Details

    Wilwood 140-13873 TX6R Big Brake Truck Front Brake is ultimate in braking performance for Truck, SUV and Armored Vehicles. Using TX6R radial mount six-piston calipers and massive directional vane allow rotor, these kits deliver consistent stopping power and extreme duty durability under sustained high heat. The calipers are volume matched for compatibility with original equipment power brake system output. Kits include radial mount caliper brackets, and all the necessary hardware to complete the installation.

    • Black powder coated finish
    • 15.00 inch rotor diameter
    • 20.00 inch wheel diameter
    • 6 piston calipers
    • Factory disc spindle type
    • Front rotor location
    • Works with iron, steel, and aluminum spindles



    Application

    2015 Chevrolet Silverado 2500 HD High Contry

    2011-2015 Chevrolet Silverado 2500 HD LT

    2011-2015 Chevrolet Silverado 2500 HD LTZ

    2011-2015 Chevrolet Silverado 2500 HD WT

    2015 GMC Sierra 2500 HD Base

    2011-2015 GMC Sierra 2500 HD Denali

    2011-2015 GMC Sierra 2500 HD SLE

    2011-2015 GMC Sierra 2500 HD SLT

    2011-2015 GMC Sierra 2500 HD WT





    Charts

    Specs

    Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

    Wilwood 140-13873 Specifications

    KEY SPECS
    MFG. Part #140-13873
    BrandWilwood
    PositionFront
    Wheel Bolt Pattern (in.)8x6.5 in.
    Wheel Bolt Pattern (mm)8x165.1 mm
    Rotor Diameter15 Inch
    Rotor TypeVented
    Caliper PistonsSix
    Caliper FinishPowder Coated
    Parking Brake ProvisionNo
    Minimum Recommended Wheel Diameter20 Inch
    Rotor ShapeRound
    Hardware IncludedYes
    Rotor StyleSlotted
    Spindle TypeFactory Disc Spindle
    Front Rotor IncludedYes
    Front Rotor Diameter15 Inch
    Front Caliper IncludedYes
    Rear Caliper IncludedNo
    Front Spindles IncludedNo
    Master Cylinder IncludedNo
    Brake Booster IncludedNo
    Brake Hoses IncludedYes
    Rear Rotor IncludedNo
    FinishPowder Coated
    ColorBlack
    Bracket MaterialSteel
    Front Caliper Piston Quantity6
    Bolt Pattern8 on 180mm
    Front Caliper FinishPowder Coated
    GENERAL
    GTIN Code889545071429
    Rotor Thickness1.5"
    Stud Diameter0.64"
    Stud Length1"
    Thread Pitch1/8 in. NPT
    Brake Pad MaterialBP-10
    Axle Flange Offset0.00"
    Mount TypeRadial
    Total Piston Area8.7 sq. in.
    Piston TypeStainless
    Pad Area12.69 sq. in.
    Pad Volume6.81 cu. in.
    Brake Pad CompoundBP-20
    Caliper TypeRadial
    Rotor FinishPlain
    Rotor Material TypeSpec-37 Iron
    Vane Count60 Curved Vane
    BeddedNo
    BalancedYes
    Hat TypeTruck Hat - Standard
    Hat FinishBlack E-Coat
    Hub MaterialAluminum
    Hat Material TypeAluminum
    Hat Offset Dimension1.92"
    Front Rotor Thickness1.50"
    Front Caliper MaterialForged Billet Aluminum
    Front Caliper ColorGray/Silver
    Brake Lines IncludedYes
    Parking Brake Cables IncludedNo
    Brake Hose MaterialRubber
    Front Rotor StyleSlotted
    Front Rotor TypeVented
    Bearings IncludedYes
    Bracket ColorZinc plated
    Bracket IncludedYes
    Brake Pads IncludedYes
    Caliper ColorBlack
    Caliper Material TypeForged Aluminum
    Caliper SeriesWilwood
    Fitting Attachment 1Female NPT
    Fittings IncludedYes
    For Use with Stock CalipersNo
    Front Rotor ConstructionVented
    Intended for Street UseYes
    Piston Diameter2"
    Hub FinishAnodized
    Hat Bolt Circle 18 x 7.09
