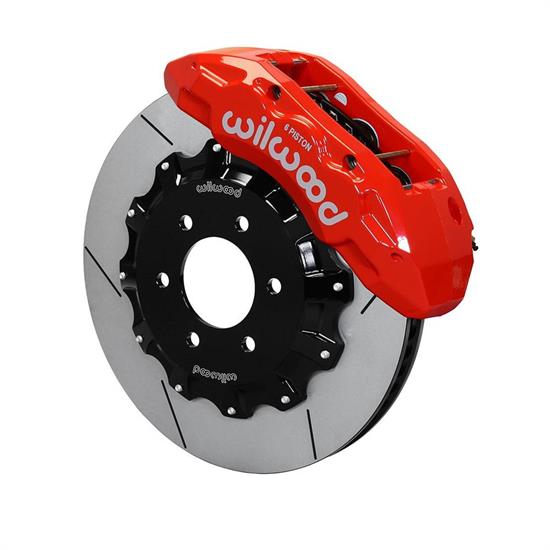

Wilwood 140-13865-R TX6R Big Brake Truck Front Brake Kit, Red
Wilwood 140-13865-R TX6R Big Brake Truck Front Brake Kit, Red
Front Position, 6 on 135mm Bolt Pattern, 15.50 Inch Rotor Diameter, Vented Rotor Type, Red
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle
Wilwood 140-13865-R TX6R Big Brake Truck Front Brake Kit, Red
X
We estimate this item will ship on or before October 27th.
Part # 83514013865R
$2,312.45
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
Details
Position:
Front
Bolt Pattern:
6 on 135mm
Rotor Diameter:
15.50 Inch
Rotor Type:
Vented
Caliper Pistons:
Six
Caliper Finish:
Powder Coated
Color:
Red
Parking Brake Provision:
No
MFG. Part #:
140-13865-R
Minimum Recommended Wheel Diameter:
20 Inch
Rotor Thickness:
1.5"
Sold in Quantity:
Kit
Spindle Type:
Factory Disc Spindle
Mount Type:
Radial
Total Piston Area:
6.52 sq. in.
Piston Type:
Stainless
Pad Area:
12.69 sq. in.
Pad Volume:
6.81 gallons
Brake Pad Compound:
BP-20
Rotor Style:
Slotted
Caliper Type:
TX6R
Rotor Finish:
Black E-Coat
Rotor Material Type:
Spec-37 Iron
Vane Count:
60 Curved Vane
Bedded:
No
Balanced:
Yes
Hat Type:
Truck Hat - Standard
Hat Finish:
Black E-Coat
Hat Bolt Circle 1:
6 X 5.32
GTIN Code:
889545071290
Front Rotor Included:
Yes
Front Rotor Diameter:
15.50 Inch
Rear Rotor Included:
No
Front Caliper Included:
Yes
Front caliper Piston Quantity:
6
Front Caliper Finish:
Powder Coated Red
Rear caliper Included:
No
Front Spindles Included:
No
Master Cylinder Included:
No
Brake Booster Included:
No
Info
Wilwood 140-13865-R TX6R Big Brake Truck Front Brake Kit, RedWilwoodDisc Brake Kits140-13865-R
Charts
Assembly Instructions (PDF)Wheel Clearance Diagram (PDF)
