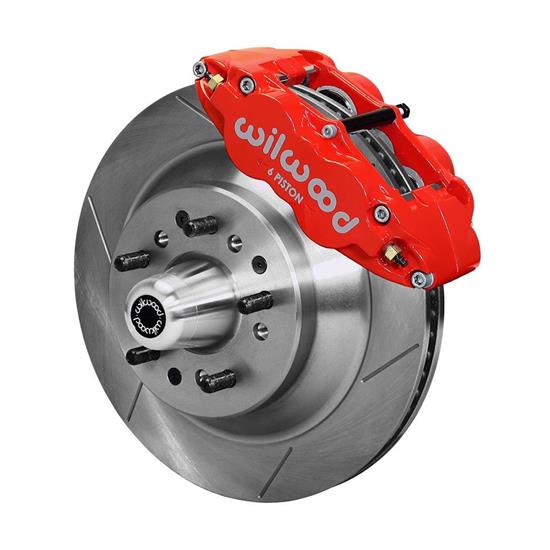

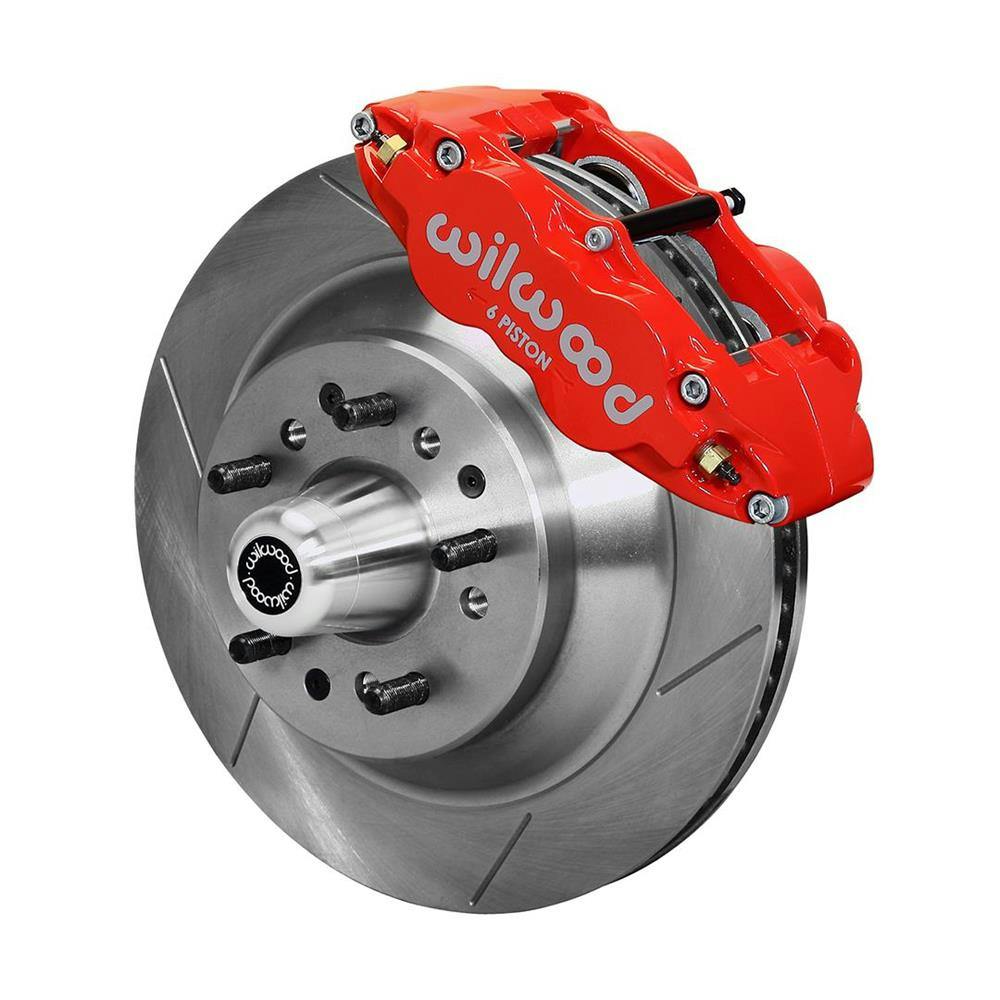

Wilwood 140-13654-R FNSL6R Front Brake Kit, 57-68 Ford/Mercury/Edsel
Wilwood 140-13654-R FNSL6R Front Brake Kit, 57-68 Ford/Mercury/Edsel

Wilwood 140-13654-R FNSL6R Front Brake Kit, 57-68 Ford/Mercury/Edsel

Front Position, Dual: 5 on 4.5" | 4.75" Bolt Pattern, 12.88 Inch Rotor Diameter, Powder Coated

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-13654-R FNSL6R Front Brake Kit, 57-68 Ford/Mercury/Edsel
Wilwood 140-13654-R FNSL6R Front Brake Kit, 57-68 Ford/Mercury/Edsel
Wilwood 140-13654-R FNSL6R Front Brake Kit, 57-68 Ford/Mercury/Edsel
Wilwood 140-13654-R FNSL6R Front Brake Kit, 57-68 Ford/Mercury/Edsel
Wilwood 140-13654-R FNSL6R Front Brake Kit, 57-68 Ford/Mercury/Edsel
X
Wilwood 140-13654-R FNSL6R Front Brake Kit, 57-68 Ford/Mercury/Edsel
Wilwood 140-13654-R FNSL6R Front Brake Kit, 57-68 Ford/Mercury/Edsel
Wilwood 140-13654-R FNSL6R Front Brake Kit, 57-68 Ford/Mercury/Edsel
Zoomed In Image
We estimate this item will ship on or before November 4th.
Part # 83514013654R
Save $24
$1,319.99
$1,343.99
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Position:
Front
Bolt Pattern:
Dual: 5 on 4.5" | 4.75"
Rotor Diameter:
12.88 Inch
Rotor Type:
Vented
Caliper Pistons:
Six
Caliper Finish:
Powder Coated
Color:
Red
Parking Brake Provision:
No
MFG. Part #:
140-13654-R
Minimum Recommended Wheel Diameter:
17 Inch
Rotor Thickness:
1.1"
Spindle Type:
Factory Drum Spindle
Mount Type:
Radial
OE Hub Offset:
0.03"
Total Piston Area:
4.04 sq. in.
Piston Type:
Stainless
Pad Area:
8.20 sq. in.
Pad Volume:
3.80 cu. in.
Brake Pad Compound:
BP-10
Rotor Style:
Drilled and Slotted
Caliper Type:
Forged Narrow Superlite 6R
Rotor Finish:
Plain
Rotor Material Type:
Spec-37 Iron
Vane Count:
34 Straight Vane
Bedded:
No
Balanced:
No
GTIN Code:
889545021004
Front Rotor Included:
Yes
Front Rotor Diameter:
12.88 Inch
Rear Rotor Included:
No
Front Caliper Included:
Yes
Front Caliper Piston Quantity:
6
Front Caliper Finish:
Powder Coated Red
Rear Caliper Included:
No
Front Spindles Included:
No
Master Cylinder Included:
No
Brake Booster Included:
No

Info

FNSL6R Billet Forged six-piston calipers with 12.88" diameter, 1 piece rotor and hats kits deliver the cost effective combination for braking power and style in this group of kits engineered 1960 to 1968 Ford & Mercury full size vehicles. Built exclusively for 17" and larger wheels, FNSL6 kits enhance tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines. A full range of options for caliper finishes and rotor designs are guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application.

Application

  • Edsel Corsair 1959 Base
  • Edsel Ranger 1960 All
  • Edsel Ranger 1959 Base
  • Edsel Villager 1960 All
  • Edsel Villager 1959 Base
  • Ford 300 1963 All
  • Ford Country Sedan 1960-1964 All
  • Ford Country Sedan 1957-1959 Base
  • Ford Country Sedan 1965 Disc Brake Spindle
  • Ford Country Sedan 1965-1968 Drum Brake Spindle
  • Ford Country Squire 1959-1964 All
  • Ford Country Squire 1957-1958 Base
  • Ford Country Squire 1965 Disc Brake Spindle
  • Ford Country Squire 1965-1968 Drum Brake Spindle
  • Ford Courier Sedan Delivery 1957-1959 Base
  • Ford Custom 1957-1964 All
  • Ford Custom 1965 Disc Brake Spindle
  • Ford Custom 1965-1968 Drum Brake Spindle
  • Ford Custom 300 1960 All
  • Ford Custom 300 1957-1959 Base
  • Ford Custom 500 1964 All
  • Ford Custom 500 1965 Disc Brake Spindle
  • Ford Custom 500 1965-1968 Drum Brake Spindle
  • Ford Del Rio Wagon 1957-1958 Base
  • Ford Fairlane 1957-1961 All
  • Ford Ford 300 1963 All
  • Ford Galaxie 1959-1964 All
  • Ford Galaxie 1965 Disc Brake Spindle
  • Ford Galaxie 1965-1967 Drum Brake Spindle
  • Ford Galaxie 500 1962-1964 All
  • Ford Galaxie 500 1965 Disc Brake Spindle
  • Ford Galaxie 500 1965-1968 Drum Brake Spindle
  • Ford LTD 1965 Disc Brake Spindle
  • Ford LTD 1965-1968 Drum Brake Spindle
  • Ford Ranch Wagon 1960-1964 All
  • Ford Ranch Wagon 1957-1959 Base
  • Ford Ranch Wagon 1965 Disc Brake Spindle
  • Ford Ranch Wagon 1965-1968 Drum Brake Spindle
  • Ford Ranchero 1957-1959 All
  • Ford Skyliner 1958-1959 All
  • Ford Skyliner 1957 Base
  • Ford Starliner 1960-1961 All
  • Ford Sunliner 1960-1964 All
  • Ford Sunliner 1957-1959 Base
  • Ford Thunderbird 1958-1960 All
  • Ford Torino 1968 Drum Brake Spindle
  • Ford Victoria 1960-1964 All
  • Ford Victoria 1957-1959 Base
  • Mercury Breezeway 1965-1966 Drum Brake Spindle
  • Mercury Brougham 1967 Drum Brake Spindle
  • Mercury Colony Park 1961-1964 All
  • Mercury Colony Park 1965 Disc Brake Spindle
  • Mercury Colony Park 1965-1968 Drum Brake Spindle
  • Mercury Commuter 1961-1964 All
  • Mercury Commuter 1965 Disc Brake Spindle
  • Mercury Commuter 1965-1968 Drum Brake Spindle
  • Mercury Country Cruiser 1963 All
  • Mercury Cyclone 1961-1964 All
  • Mercury Cyclone 1965 Disc Brake Spindle
  • Mercury Cyclone 1965-1968 Drum Brake Spindle
  • Mercury Marauder 1963-1964 All
  • Mercury Marauder 1965 Disc Brake Spindle
  • Mercury Marauder 1965-1968 Drum Brake Spindle
  • Mercury Marquis 1967-1968 Drum Brake Spindle
  • Mercury Meteor 1961 All
  • Mercury Montclair 1961-1964 All
  • Mercury Montclair 1965 Disc Brake Spindle
  • Mercury Montclair 1965-1968 Drum Brake Spindle
  • Mercury Montego 1968 Drum Brake Spindle
  • Mercury Monterey 1961-1964 All
  • Mercury Monterey 1965 Disc Brake Spindle
  • Mercury Monterey 1965-1968 Drum Brake Spindle
  • Mercury Park Lane 1964 All
  • Mercury Park Lane 1965 Disc Brake Spindle
  • Mercury Park Lane 1965-1968 Drum Brake Spindle
  • Mercury S-55 1966-1967 Drum Brake Spindle
  • Mercury Villager 1962-1964 All
  • Mercury Villager 1965 Disc Brake Spindle
  • Mercury Villager 1965-1967 Drum Brake Spindle
  • Mercury Voyager 1966-1967 Drum Brake Spindle
