Wilwood 140-13653-D Classic Series Brake Kit, 57-68 Ford/Mercury/Edsel

  • Specially designed for the 1960 to 1968 Ford & Mercury full size cars
  • Kits feature the FDL-M four piston forged aluminum caliper and 11.30" diameter x 0.94" thick one-piece rotors
  • The caliper provides the greatest amount of wheel clearance of any four piston caliper in its size class
See More

Rotor / Caliper Type:

Drilled

Drilled / RedUndrilledUndrilled / Red

$951.69

/each

Factory Shipped

$1,065.89

Save $114.20


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 11.29 Inch Rotor Diameter, Anodized

  • Specially designed for the 1960 to 1968 Ford & Mercury full size cars
  • Kits feature the FDL-M four piston forged aluminum caliper and 11.30" diameter x 0.94" thick one-piece rotors
  • The caliper provides the greatest amount of wheel clearance of any four piston caliper in its size class
  • OEM style one-piece cast iron rotors with integrated hubs simplify installation while providing superb dimensional stability
  • Can be easily optioned to suit the braking requirements and style preferences for a daily driver or the most discriminating show enthusiast
See more details

Key Specs

MFG. Part #140-13653-D
PositionFront
Rotor Diameter11.29 Inch
Rotor TypeVented
Caliper PistonsFour
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-13653-D Details

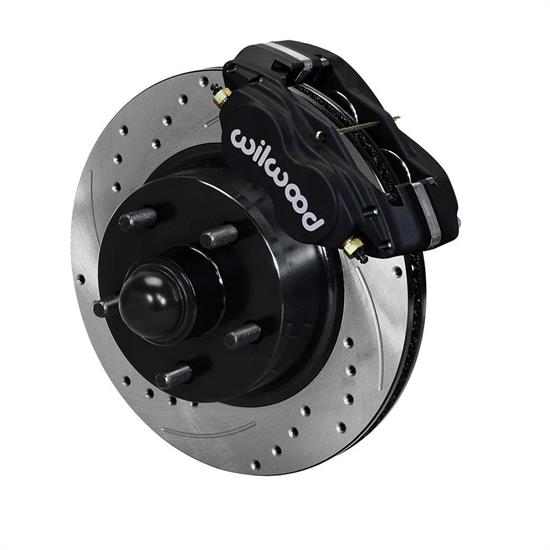

Wilwood's Classic Series front disc brake kits for 1960 to 1968 Ford & Mercury full size offer disc brake upgrade solutions for OEM Drum spindles. These kits feature the FDL-M four piston forged aluminum caliper and 11.30" diameter x 0.94" thick one-piece rotors. The FDL-M caliper is a modified version of the time-tested Forged Dynalite caliper, and provides the greatest amount of wheel clearance of any four piston caliper in its size class. The OEM style one-piece cast iron rotors with integrated hubs simplify installation while providing superb dimensional stability and wear resistance. These versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver or the most discriminating show enthusiast. Intended vehicle applications require no modifications for installation, and clear most 14" OEM wheels. Classic Series FDL-M kits can be used with either manual or power boost master cylinders, and come complete with calipers, rotors, brackets, hardware and detailed installation instructions.

Application

  • Edsel Corsair 1959 Base
  • Edsel Ranger 1960 All
  • Edsel Ranger 1959 Base
  • Edsel Villager 1960 All
  • Edsel Villager 1959 Base
  • Ford 300 1963 All
  • Ford Country Sedan 1960-1964 All
  • Ford Country Sedan 1957-1959 Base
  • Ford Country Sedan 1965 Disc Brake Spindle
  • Ford Country Sedan 1965-1968 Drum Brake Spindle
  • Ford Country Squire 1959-1964 All
  • Ford Country Squire 1957-1958 Base
  • Ford Country Squire 1965 Disc Brake Spindle
  • Ford Country Squire 1965-1968 Drum Brake Spindle
  • Ford Courier Sedan Delivery 1957-1959 Base
  • Ford Custom 1957-1964 All
  • Ford Custom 1965 Disc Brake Spindle
  • Ford Custom 1965-1968 Drum Brake Spindle
  • Ford Custom 300 1960 All
  • Ford Custom 300 1957-1959 Base
  • Ford Custom 500 1964 All
  • Ford Custom 500 1965 Disc Brake Spindle
  • Ford Custom 500 1965-1968 Drum Brake Spindle
  • Ford Del Rio Wagon 1957-1958 Base
  • Ford Fairlane 1957-1961 All
  • Ford Ford 300 1963 All
  • Ford Galaxie 1959-1964 All
  • Ford Galaxie 1965 Disc Brake Spindle
  • Ford Galaxie 1965-1967 Drum Brake Spindle
  • Ford Galaxie 500 1962-1964 All
  • Ford Galaxie 500 1965 Disc Brake Spindle
  • Ford Galaxie 500 1965-1968 Drum Brake Spindle
  • Ford LTD 1965 Disc Brake Spindle
  • Ford LTD 1965-1968 Drum Brake Spindle
  • Ford Ranch Wagon 1960-1964 All
  • Ford Ranch Wagon 1957-1959 Base
  • Ford Ranch Wagon 1965 Disc Brake Spindle
  • Ford Ranch Wagon 1965-1968 Drum Brake Spindle
  • Ford Ranchero 1957-1959 All
  • Ford Skyliner 1958-1959 All
  • Ford Skyliner 1957 Base
  • Ford Starliner 1960-1961 All
  • Ford Sunliner 1960-1964 All
  • Ford Sunliner 1957-1959 Base
  • Ford Thunderbird 1958-1960 All
  • Ford Torino 1968 Drum Brake Spindle
  • Ford Victoria 1960-1964 All
  • Ford Victoria 1957-1959 Base
  • Mercury Breezeway 1965-1966 Drum Brake Spindle
  • Mercury Brougham 1967 Drum Brake Spindle
  • Mercury Colony Park 1961-1964 All
  • Mercury Colony Park 1965 Disc Brake Spindle
  • Mercury Colony Park 1965-1968 Drum Brake Spindle
  • Mercury Commuter 1961-1964 All
  • Mercury Commuter 1965 Disc Brake Spindle
  • Mercury Commuter 1965-1968 Drum Brake Spindle
  • Mercury Country Cruiser 1963 All
  • Mercury Cyclone 1961-1964 All
  • Mercury Cyclone 1965 Disc Brake Spindle
  • Mercury Cyclone 1965-1968 Drum Brake Spindle
  • Mercury Marauder 1963-1964 All
  • Mercury Marauder 1965 Disc Brake Spindle
  • Mercury Marauder 1965-1968 Drum Brake Spindle
  • Mercury Marquis 1967-1968 Drum Brake Spindle
  • Mercury Meteor 1961 All
  • Mercury Montclair 1961-1964 All
  • Mercury Montclair 1965 Disc Brake Spindle
  • Mercury Montclair 1965-1968 Drum Brake Spindle
  • Mercury Montego 1968 Drum Brake Spindle
  • Mercury Monterey 1961-1964 All
  • Mercury Monterey 1965 Disc Brake Spindle
  • Mercury Monterey 1965-1968 Drum Brake Spindle
  • Mercury Park Lane 1964 All
  • Mercury Park Lane 1965 Disc Brake Spindle
  • Mercury Park Lane 1965-1968 Drum Brake Spindle
  • Mercury S-55 1966-1967 Drum Brake Spindle
  • Mercury Villager 1962-1964 All
  • Mercury Villager 1965 Disc Brake Spindle
  • Mercury Villager 1965-1967 Drum Brake Spindle
  • Mercury Voyager 1966-1967 Drum Brake Spindle

Charts

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Wilwood 140-13653-D Specifications

KEY SPECS
MFG. Part #140-13653-D
BrandWilwood
PositionFront
Rotor Diameter11.29 Inch
Rotor TypeVented
Caliper PistonsFour
Caliper FinishAnodized
Parking Brake ProvisionNo
Minimum Recommended Wheel Diameter14 Inch
Rotor ShapeRound
Hardware IncludedYes
Rotor StylePlain Face
Spindle TypeFactory Drum Spindle
Front Rotor IncludedYes
Front Rotor Diameter11.30 Inch
Front Caliper IncludedYes
Rear Caliper IncludedNo
Front Spindles IncludedNo
Master Cylinder IncludedNo
Brake Booster IncludedNo
Brake Hoses IncludedNo
Rear Rotor IncludedNo
ColorGray
Bolt Pattern5 on 4.5" | 4.75"
Front Caliper Piston Quantity4
Front Caliper FinishAnodized
GENERAL
GTIN Code889545020946
Rotor Thickness0.94"
Mount TypeLug
OE Hub Offset0.18"
Total Piston Area4.8 sq. in.
Piston TypeStainless
Pad Area6.36 sq. in.
Pad Volume2.1 cu. in.
Brake Pad CompoundBP-10
Caliper TypeLug
Rotor FinishBlack E-Coat
Rotor Material TypeIron
BeddedNo
Brake Lines IncludedNo
Caliper ColorGray
Caliper Material TypeForged Aluminum
