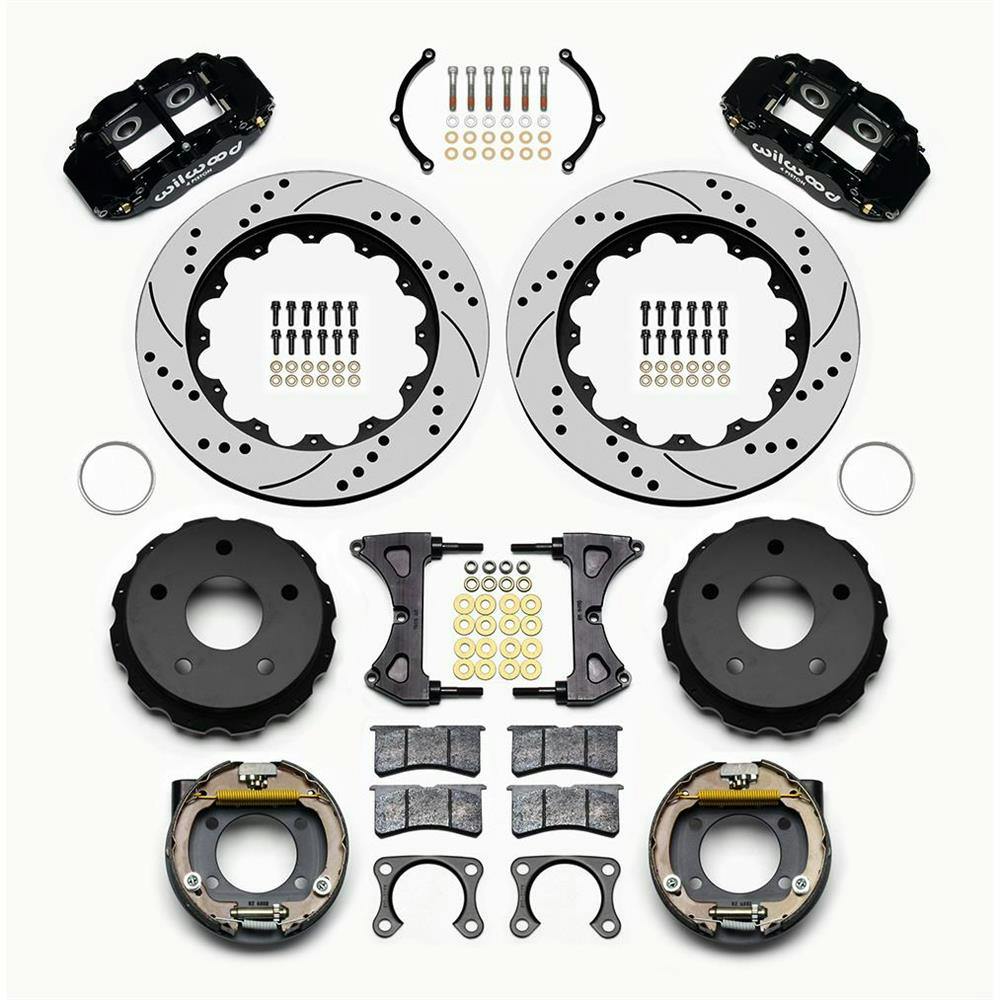

Wilwood 140-13332-D Superlite 4R Big Rear E-Brake Kit
- These versions of Forged Narrow Superlite 4R rear disc kits provide the ultimate Big Brake solution for Bronco 65-75 rear axles with Small Ford flange and bearing
- Each includes a high efficiency drum style parking brake assembly
$2,409.74
/each
Factory Shipped
$2,698.91
Save $289.17
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Rear Position, 14 Inch Rotor Diameter, Powder Coated
- These versions of Forged Narrow Superlite 4R rear disc kits provide the ultimate Big Brake solution for Bronco 65-75 rear axles with Small Ford flange and bearing
- Each includes a high efficiency drum style parking brake assembly
- FNSL4R four piston calipers, 13” or 14” two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades available for Bronco platform
- The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking
Key Specs
| MFG. Part # | 140-13332-D |
| Position | Rear |
| Rotor Diameter | 14 Inch |
| Rotor Type | Vented |
| Caliper Pistons | Four |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyWilwood 140-13332-D Details
Wilwood 140-13332-D Details
- These versions of Forged Narrow Superlite 4R rear disc kits provide the ultimate Big Brake solution for Bronco 65-75 rear axles with Small Ford flange and bearing
- (normally: OE 10 inch diameter brakes and 2700 or 2900 GVW
- ) Each includes a high efficiency drum style parking brake assembly
- FNSL4R four piston calipers, 13” or 14” two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades available for Bronco platform
- The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking
- Optional caliper finishes and rotor designs allow builders to personalize the style and performance for every application
Application
Ford Bronco 1966-1973 2700 Lbs Axle
10 inch Drum Brakes
Ford Bronco 1974-1975 2900 Lbs Axle
10 inch Drum Brakes
10 inch Drum Brakes
Ford Bronco 1974-1975 2900 Lbs Axle
10 inch Drum Brakes
Specs
Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.
Guides & Documents
Wilwood 140-13332-D Specifications
Wilwood 140-13332-D Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 140-13332-D |
| Brand | Wilwood |
| Position | Rear |
| Rotor Diameter | 14 Inch |
| Rotor Type | Vented |
| Caliper Pistons | Four |
| Caliper Finish | Powder Coated |
| Color | Black |
| Parking Brake Provision | Yes |
| Minimum Recommended Wheel Diameter | 18 Inch |
| Hardware Included | Yes |
| Rotor Style | Drilled & Slotted |
| Front Rotor Included | No |
| Front Caliper Included | No |
| Rear Caliper Included | Yes |
| Front Spindles Included | No |
| Master Cylinder Included | No |
| Brake Booster Included | No |
| Brake Hoses Included | No |
| Rear Rotor Included | Yes |
| Bolt Pattern | 5 on 5.5" |
| GENERAL | |
| Sold in Quantity | Kit |
| GTIN Code | 889545019971 |
| Notes | Included rotors are coated in Black Electro Coat. |
| Rotor Thickness | 1.1" |
| Offset | 2.36" |
| Axle Flange Offset | 2.36" |
| Mount Type | Radial |
| Total Piston Area | 1.96 sq. in. |
| Piston Type | Stainless |
| Pad Area | 8.20 sq. in. |
| Pad Volume | 3.80 cu. in. |
| Brake Pad Compound | BP-10 |
| Caliper Type | Radial |
| Rotor Finish | Black E-Coat |
| Rotor Material Type | Spec-37 Iron |
| Vane Count | 72 Curved Vane |
| Bedded | No |
| Balanced | Yes |
| Hat Type | Parking Brake Hat- Standard |
| Hat Finish | Black E-Coat |
| Hat Bolt Circle 1 | 5 x 5.50 |
| Hat Material Type | Aluminum |
| Hat Offset Dimension | 1.54" |
| Brake Lines Included | No |
| Caliper Color | Black |
| Caliper Material Type | Forged Aluminum |
| Parking Brake Style | Internal Drum |
| Rear Caliper Color | Black |
| Rear Caliper Material | Forged Billet Aluminum |
| Rear Caliper Piston Quantity | Four |
| Rear Rotor Construction | Vented |
| Rear Rotor Diameter | 14" |
| Rear Rotor Style | Cross-drilled/Slotted surface |
| Rear Rotor Thickness | 1.1" |
Ratings & Reviews
Ratings & Reviews
Fitment
Fitment
1966-1975 Ford Bronco
