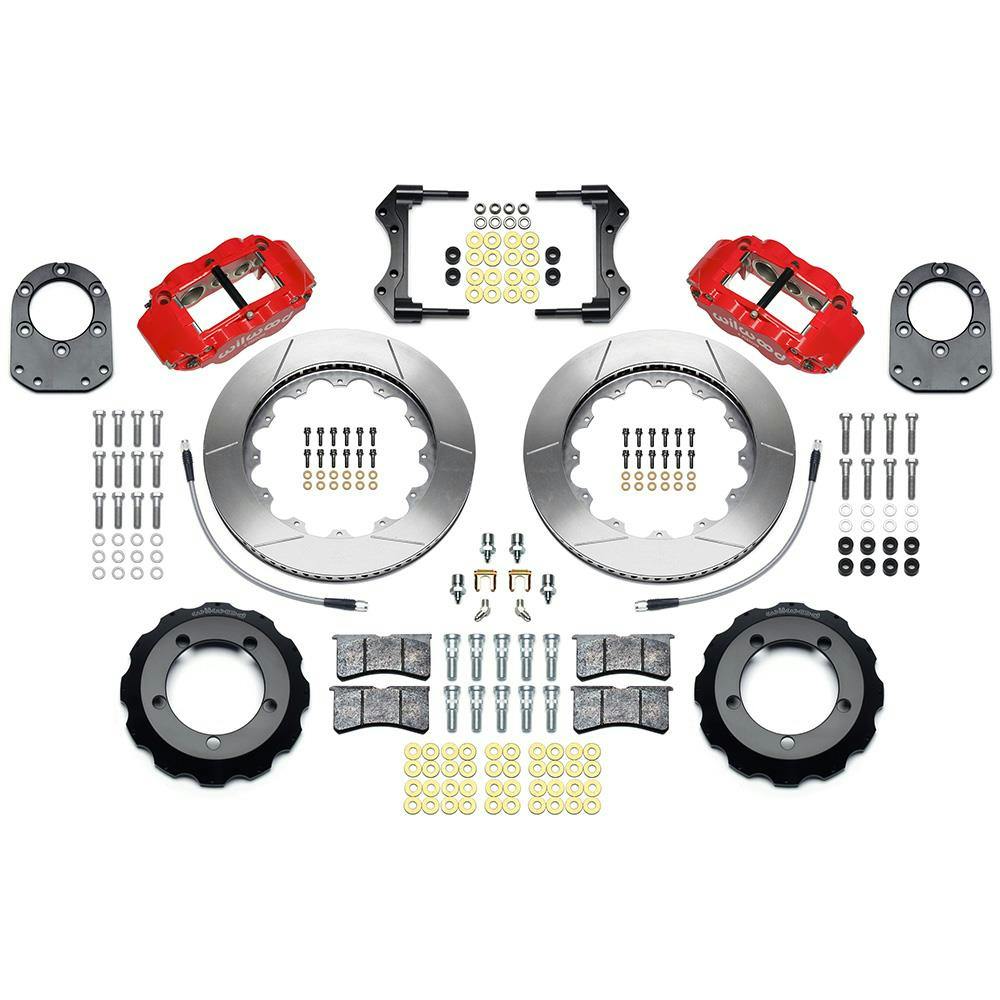

Wilwood 140-13329-R Forged Narrow Superlite Big Front Brake Kit
- The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the basis
- Big rotor kits for the popular Ford Bronco vehicles
- SL6R kits are engineered application specific to these vehicles, providing simplified installation
$2,405.41
/each
Factory Shipped
$2,694.06
Save $288.65
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Front Position, 14 Inch Rotor Diameter, Powder Coated
- The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the basis
- Big rotor kits for the popular Ford Bronco vehicles
- SL6R kits are engineered application specific to these vehicles, providing simplified installation
- Each kit is engineered vehicle specific and utilizes the existing hub assembly
Key Specs
| MFG. Part # | 140-13329-R |
| Position | Front |
| Rotor Diameter | 14 Inch |
| Rotor Type | Vented |
| Caliper Pistons | Four |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyWilwood 140-13329-R Details
Wilwood 140-13329-R Details
- The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the basis of these 12
- 88” or 14
- 00” inch big rotor kits for the popular Ford Bronco vehicles
- SL6R kits are engineered application specific to these vehicles, providing simplified installation
- Each kit is engineered vehicle specific and utilizes the existing hub assembly
- Big brake kits offer increased brake capacity and complimentary style with wheel, tire, and suspension upgrades
- Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application
Application
- Ford Bronco 1966-1973 2700 Lbs Axle, 10" inch Drum Brakes
- Ford Bronco 1974-1975 2900 Lbs Axle, 10" inch Drum Brakes
- Ford Bronco 1966-1975 3300 Lbs Axle, 11" inch Drum Brakes
- Ford F-100 1975 Custom 4 x 4
- Ford F-100 1975 Northland 4 x 4
- Ford F-100 1975 Ranger 4 x 4
- Ford F-100 1975 Ranger XLT 4 x 4
- Ford F-100 Pickup 1966-1974 4 x 4
- Ford F-150 1975 Custom 4 x 4
- Ford F-150 1975 Northland 4 x 4
- Ford F-150 1975 Ranger 4 x 4
- Ford F-150 1975 Ranger XLT 4 x 4
Specs
Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.
Guides & Documents
Wilwood 140-13329-R Specifications
Wilwood 140-13329-R Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 140-13329-R |
| Brand | Wilwood |
| Position | Front |
| Rotor Diameter | 14 Inch |
| Rotor Type | Vented |
| Caliper Pistons | Four |
| Caliper Finish | Powder Coated |
| Color | Red |
| Parking Brake Provision | No |
| Minimum Recommended Wheel Diameter | 18 Inch |
| Hardware Included | Yes |
| Rotor Style | Slotted |
| Spindle Type | Factory Drum Spindle |
| Front Rotor Included | Yes |
| Front Rotor Diameter | 14.00 in./355.60mm |
| Front Caliper Included | Yes |
| Rear Caliper Included | No |
| Front Spindles Included | No |
| Master Cylinder Included | No |
| Brake Booster Included | No |
| Brake Hoses Included | Yes |
| Rear Rotor Included | No |
| Bolt Pattern | 5 on 5.5" |
| Front Caliper Piston Quantity | Six |
| GENERAL | |
| Sold in Quantity | Kit |
| GTIN Code | 889545019919 |
| Notes | Fits factory drum spindle. |
| Rotor Thickness | 1.25" |
| Stud Diameter | 0.64" |
| Offset | 0" |
| Mount Type | Radial |
| OE Hub Offset | 0" |
| Total Piston Area | 4.80 sq. in. |
| Piston Type | Stainless |
| Pad Area | 8.20 sq. in. |
| Pad Volume | 3.8 cu. in. |
| Brake Pad Compound | BP-10 |
| Caliper Type | Radial |
| Rotor Finish | Natural |
| Rotor Material Type | Spec-37 Iron |
| Vane Count | 72 Curved Vane |
| Bedded | No |
| Balanced | Yes |
| Hat Type | Big Brake Hat - Short Offset |
| Hat Finish | Black E-Coat |
| Hat Bolt Circle 1 | 5 x 5.50 |
| Hat Material Type | Aluminum |
| Hat Offset Dimension | 1.30" |
| Front Rotor Thickness | 1.250" |
| Front Caliper Material | Forged Billet Aluminum |
| Front Caliper Color | Red |
| Brake Lines Included | Yes |
| Front Rotor Style | Slotted |
| Caliper Color | Red |
| Caliper Material Type | Forged Aluminum |
| Front Rotor Construction | Vented |
