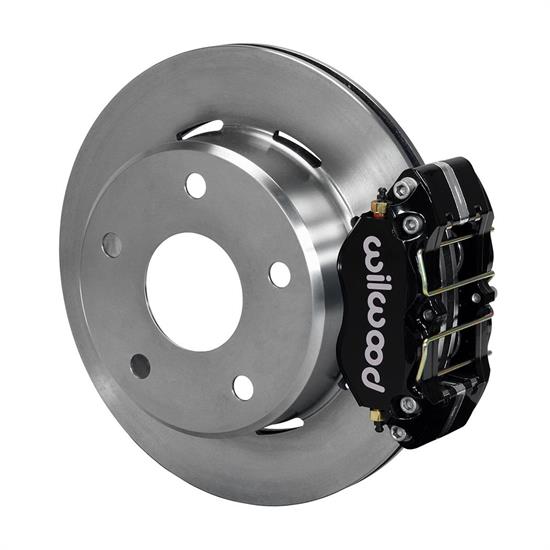

Wilwood 140-13322 Dynapro Lug Mount Rear Brake Kit, Big Ford, Bronco
Wilwood 140-13322 Dynapro Lug Mount Rear Brake Kit, Big Ford, Bronco

Wilwood 140-13322 Dynapro Lug Mount Rear Brake Kit, Big Ford, Bronco

Rear Position, 5 on 5.5" Bolt Pattern, 12.19 Inch Rotor Diameter, Vented Rotor Type, Black

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-13322 Dynapro Lug Mount Rear Brake Kit, Big Ford, Bronco
Wilwood 140-13322 Dynapro Lug Mount Rear Brake Kit, Big Ford, Bronco
Wilwood 140-13322 Dynapro Lug Mount Rear Brake Kit, Big Ford, Bronco
Wilwood 140-13322 Dynapro Lug Mount Rear Brake Kit, Big Ford, Bronco
Wilwood 140-13322 Dynapro Lug Mount Rear Brake Kit, Big Ford, Bronco
X
Wilwood 140-13322 Dynapro Lug Mount Rear Brake Kit, Big Ford, Bronco
Wilwood 140-13322 Dynapro Lug Mount Rear Brake Kit, Big Ford, Bronco
Wilwood 140-13322 Dynapro Lug Mount Rear Brake Kit, Big Ford, Bronco
Zoomed In Image
We estimate this item will ship on or before July 20th.
Part # 83514013322
$805.04
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Position:
Rear
Bolt Pattern:
5 on 5.5"
Rotor Diameter:
12.19 Inch
Rotor Type:
Vented
Caliper Pistons:
Four
Caliper Finish:
Powder Coated
Color:
Black
MFG. Part #:
140-13322
Minimum Recommended Wheel Diameter:
15 Inch
Rotor Thickness:
0.81"
Offset:
2.36"
Mount Type:
Lug
Total Piston Area:
3.00 sq. in.
Piston Type:
Stainless
Pad Area:
6.36 sq. in.
Pad Volume:
2.10 cu. in.
Brake Pad Compound:
BP-10
Rotor Style:
Slotted
Caliper Type:
Dynapro Lug Mount
Rotor Finish:
Plain
Rotor Material Type:
Spec-37 Iron
Vane Count:
32 Straight Vane
Bedded:
No
Balanced:
No
GTIN Code:
889545019803

Info

These versions of DPL Pro-Series rear disc kits provides a complete solution for Bronco 65-77 rear axles with Big Ford flange and bearing. (normally: OE 11 inch diameter brakes and 3300 GVW.) Forged Billet Dynapro Lug Mount four piston calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking to compliment front big brake upgrades available for Bronco platform. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

Application

Ford Bronco 1966-1975 3300 Lbs Axle
11 inch Drum Brakes
Ford Bronco 1976-1977 All

Charts

Installation Instructions (PDF)

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 7 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
