Wilwood 140-13320-DR DPL Rear Brake Kit, Small Ford 2.36 Off, Bronco

$118 Off

#83514013320DR

Wilwood 140-13320-DR DPL Rear Brake Kit, Small Ford 2.36 Off, Bronco

Name: Wilwood 140-13320-DR DPL Rear Brake Kit, Small Ford 2.36 Off, Bronco
Brand: Wilwood
SKU: 83514013320DR
Price: 1441.25 USD
Availability: InStock

Write a Review

Ask a Question

Rotor / Caliper Type:

Drilled / Red

Drilled

$1,441.25

/each

Factory Shipped

$1,559.61

Save $118.36

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Rear Position, 12.19 Inch Rotor Diameter, Powder Coated

See more details

Key Specs

MFG. Part #	140-13320-DR
Position	Rear
Wheel Bolt Pattern (in.)	5x5.5 in.
Rotor Diameter	12.19 Inch
Rotor Type	Vented

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-13320-DR Details

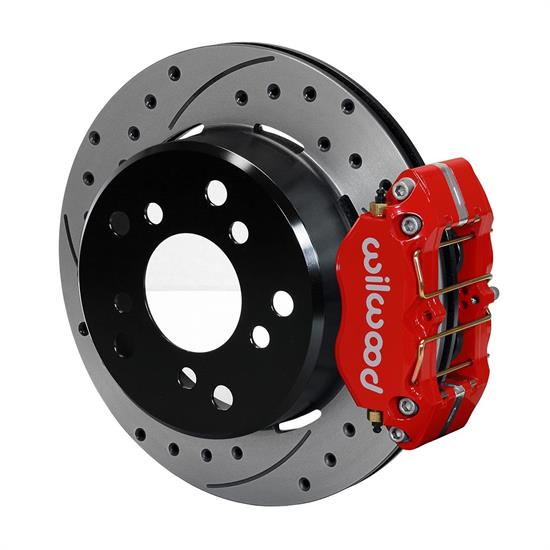

These versions of DPL Pro-Series rear disc kits provides a complete solution for Bronco 65-75 rear axles with Small Ford flange and bearing. (normally: OE 10 inch diameter brakes and 2700 or 2900 GVW.) Forged Billet Dynapro Lug Mount four piston calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking to compliment front big brake upgrades available for Bronco platform. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

Application

Ford Bronco 1966-1973 2700 Lbs Axle
10 inch Drum Brakes
Ford Bronco 1974-1975 2900 Lbs Axle
10 inch Drum Brakes

Charts

Installation Instructions (PDF)

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (83514013320DR)

Everything You Need to Know About Converting Drum Brakes to Disc

Wilwood 140-13320-DR Specifications

KEY SPECS
MFG. Part #	140-13320-DR
Brand	Wilwood
Position	Rear
Wheel Bolt Pattern (in.)	5x5.5 in.
Rotor Diameter	12.19 Inch
Rotor Type	Vented
Caliper Pistons	Four
Caliper Finish	Powder Coated
Parking Brake Provision	Yes
Minimum Recommended Wheel Diameter	15 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Drilled & Slotted
Front Rotor Included	No
Front Caliper Included	No
Rear Caliper Included	Yes
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	Yes
Rear Rotor Included	Yes
Color	Red
Bolt Pattern	5 on 5.5"

GENERAL
GTIN Code	889545019742
Rotor Thickness	0.81"
Offset	2.36"
Axle Flange Offset	2.36"
Mount Type	Lug
Total Piston Area	3 sq. in.
Piston Type	Stainless
Pad Area	6.36 sq. in.
Pad Volume	2.1 cu. in.
Brake Pad Compound	BP-10
Caliper Type	Lug
Rotor Finish	Black E-Coat
Rotor Material Type	Iron
Vane Count	32 Straight Vane
Bedded	No
Balanced	No
Brake Lines Included	No
Caliper Color	Red
Caliper Material Type	Forged Aluminum

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1966-1975 Ford Bronco
