Wilwood 140-13205-DR Dynapro Dust Boot Rear Brake Kit, Small Ford 2.66

$150 Off

Wilwood 140-13205-DR Dynapro Dust Boot Rear Brake Kit, Small Ford 2.66
Wilwood

|

#83514013205DR

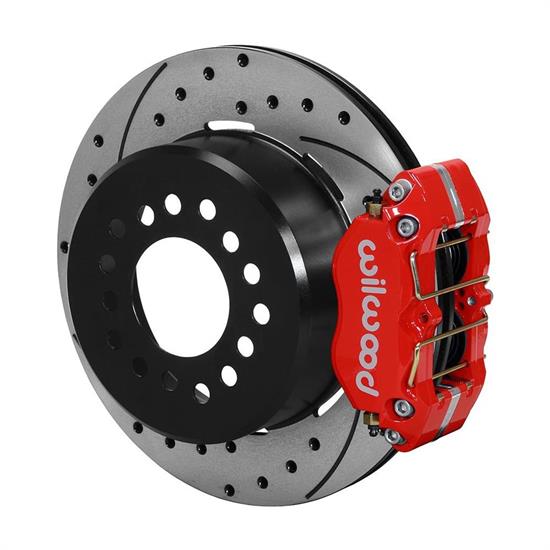

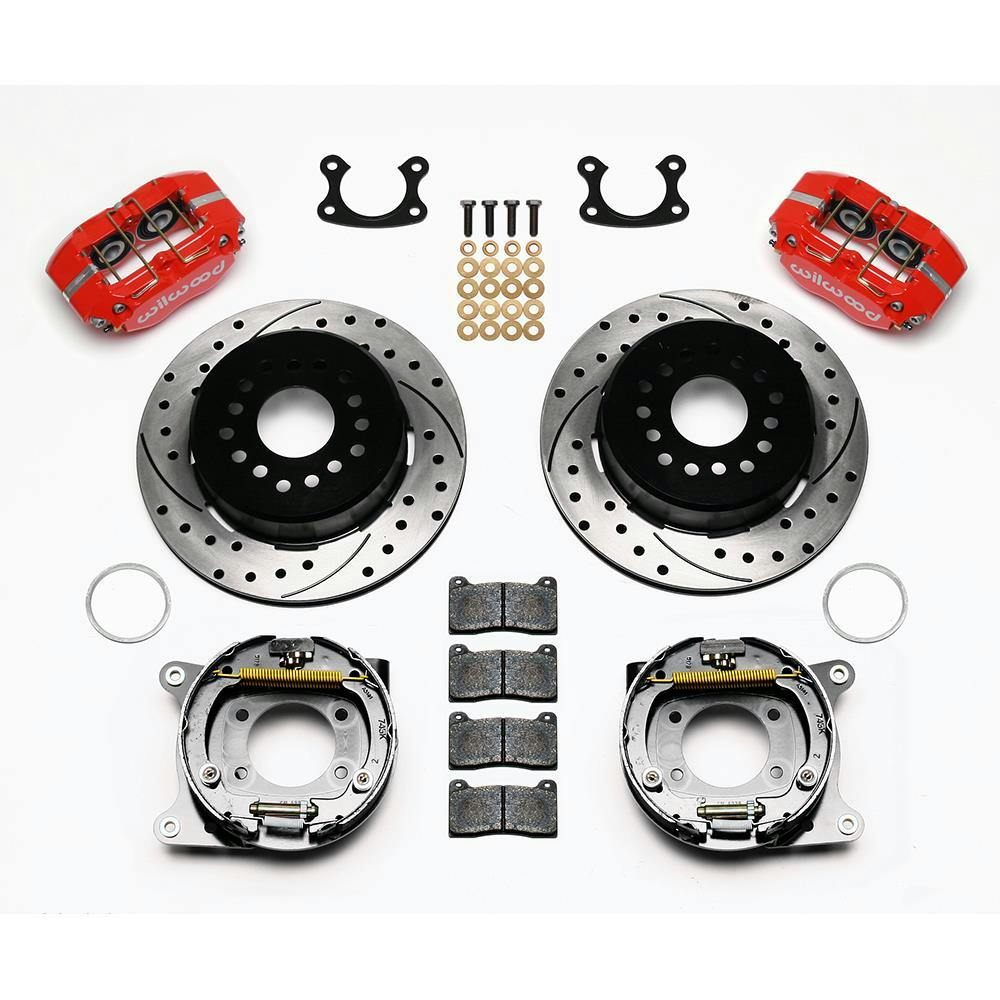

Wilwood 140-13205-DR Dynapro Dust Boot Rear Brake Kit, Small Ford 2.66

Rotor / Caliper Type:

Drilled / Red

DrilledUndrilled / Red

$1,253.44

/each

Factory Shipped

$1,403.85

Save $150.41


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Ford 9 Inch, Rear Position, 12.19 Inch Rotor Diameter

    See more details

    Key Specs

    MFG. Part #140-13205-DR
    PositionRear
    Rotor Diameter12.19 Inch
    Rotor TypeVented
    Caliper PistonsFour
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    Wilwood 140-13205-DR Details

    DP-DB Pro-Series rear disc kits provide a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynapro Dust Boot calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. These kits were developed for applications or locations that require or prefer a dust-booted piston. Dust-booted aluminum pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

    Charts

    Specs

    Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

    Wilwood 140-13205-DR Specifications

    KEY SPECS
    MFG. Part #140-13205-DR
    BrandWilwood
    PositionRear
    Rotor Diameter12.19 Inch
    Rotor TypeVented
    Caliper PistonsFour
    Caliper FinishPowder Coated
    ColorRed
    Parking Brake ProvisionYes
    Minimum Recommended Wheel Diameter15 Inch
    Rotor ShapeRound
    Hardware IncludedYes
    Rotor StyleDrilled & Slotted
    Front Rotor IncludedNo
    Front Caliper IncludedNo
    Rear Caliper IncludedYes
    Front Spindles IncludedNo
    Master Cylinder IncludedNo
    Brake Booster IncludedNo
    Ford Bearing End StyleSmall Ford
    Rear Rotor IncludedYes
    Bolt Pattern5 on 4.5" | 4.75"
    GENERAL
    GTIN Code889545019285
    Rotor Thickness0.81"
    Axle Flange Offset2.66"
    Mount TypeLug
    Total Piston Area3 sq. in.
    Piston TypeAluminum
    Pad Area6.36 sq. in.
    Pad Volume2.1 cu. in.
    Brake Pad CompoundBP-10
    Caliper TypeLug
    Rotor FinishBlack E-Coat
    Rotor Material TypeIron
    Vane Count32 Straight Vane
    BeddedNo
    BalancedNo
    Brake Lines IncludedNo
    Caliper ColorRed
    Caliper Material TypeForged Aluminum
