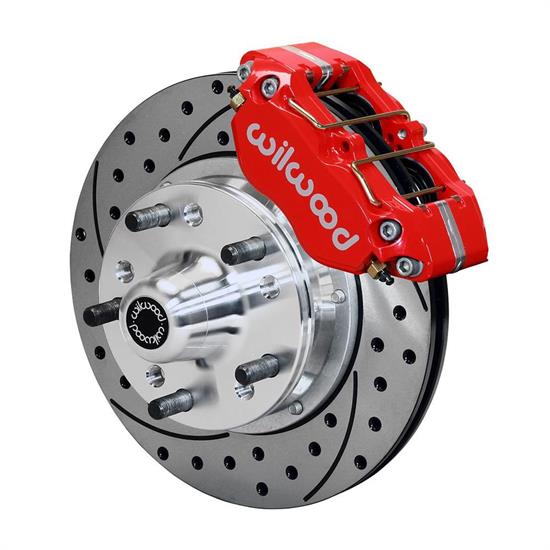

Wilwood 140-13202-DR DP-DB Pro Series Front Disc Brake Kit, 1964-74 GM
Wilwood 140-13202-DR DP-DB Pro Series Front Disc Brake Kit, 1964-74 GM

Wilwood 140-13202-DR DP-DB Pro Series Front Disc Brake Kit, 1964-74 GM

Front Position, Dual: 5 on 4.5" | 4.75" Bolt Pattern, 11 Inch Rotor Diameter, Vented Rotor Type

1 Review | 0 Answered Questions
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Limited Qty
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-13202-DR DP-DB Pro Series Front Disc Brake Kit, 1964-74 GM
Wilwood 140-13202-DR DP-DB Pro Series Front Disc Brake Kit, 1964-74 GM
Wilwood 140-13202-DR DP-DB Pro Series Front Disc Brake Kit, 1964-74 GM
Wilwood 140-13202-DR DP-DB Pro Series Front Disc Brake Kit, 1964-74 GM
Wilwood 140-13202-DR DP-DB Pro Series Front Disc Brake Kit, 1964-74 GM
X
Wilwood 140-13202-DR DP-DB Pro Series Front Disc Brake Kit, 1964-74 GM
Wilwood 140-13202-DR DP-DB Pro Series Front Disc Brake Kit, 1964-74 GM
Wilwood 140-13202-DR DP-DB Pro Series Front Disc Brake Kit, 1964-74 GM
Zoomed In Image
Part # 83514013202DR
$954.99
$965.99
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Position:
Front
Bolt Pattern:
Dual: 5 on 4.5" | 4.75"
Rotor Diameter:
11 Inch
Rotor Type:
Vented
Caliper Pistons:
Four
Caliper Finish:
Powder Coated
Color:
Red
Parking Brake Provision:
No
MFG. Part #:
140-13202-DR
Minimum Recommended Wheel Diameter:
14 Inch
Rotor Thickness:
0.81"
Stud Diameter:
1/2-20"
Spindle Type:
Factory Drum, Factory Disc & Drop Spindles
Mount Type:
Lug
OE Hub Offset:
0.19"
Total Piston Area:
4.80 sq. in.
Piston Type:
Aluminum
Pad Area:
6.36 sq. in.
Pad Volume:
2.1 cu. in.
Brake Pad Compound:
BP-10
Rotor Style:
Drilled and Slotted
Caliper Type:
Dynapro Dust Boot
Rotor Finish:
Black E-Coat
Rotor Material Type:
Spec-37 Iron
Vane Count:
30 Straight Vane
Bedded:
No
Balanced:
No
Stud Diameter 2:
1/2-20"
GTIN Code:
889545019162
Front Rotor Included:
Yes
Front Rotor Diameter:
11 Inch
Rear Rotor Included:
No
Front Caliper Included:
Yes
Front Caliper Piston Quantity:
4
Front Caliper Finish:
Powder Coated Red
Rear Caliper Included:
No
Front Spindles Included:
No
Master Cylinder Included:
No
Brake Booster Included:
No

Info

Wilwood's new limited offset DP-DB Pro-Series Front Hub Kits for GM 1967-1969 F-Body and 1964-1974 A-Body vehicles offer disc brake upgrade solutions for both OEM Disc & Drum spindles. We have completely redesigned our Pro Series line of brake kits using a larger 11" rotor and new forged aluminum hubs with the express purpose of maintaining the factory wheel position. This new kit widens the track with by only +.19" from original drum brake position, and -.31" from the original disc brake assemblies. Based on the venerable forged billet Dynapro Dust Boot caliper, these kits were developed for applications or locations that require or prefer a dust-booted piston. Dust-booted aluminum pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. Most vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders. Kits come complete with calipers, rotors, hub assembly, brackets and hardware. Kit installation requires purchase of additional brake lines shown below.

Wheel Clearance Diagram

Application

1964 Buick Skylark All
1964 Buick Special All
1964 Buick Sportwagon All
1964 Chevrolet Chevelle All
1964 Chevrolet Chevy II All
1964 Chevrolet El Camino All
1964 Oldsmobile Cutlass All
1964 Oldsmobile F85 All
1964 Oldsmobile Vista Cruiser All
1964 Pontiac GTO All
1964 Pontiac LeMans All
1964 Pontiac Tempest All
1965 Buick Gran Sport All
1965 Buick Skylark All
1965 Buick Special All
1965 Buick Sportwagon All
1965 Chevrolet Chevelle Drum Brake Spindle
1965 Chevrolet Chevy II Drum Brake Spindle
1965 Chevrolet El Camino Drum Brake Spindle
1965 Oldsmobile Cutlass All
1965 Oldsmobile F85 All
1965 Oldsmobile Vista Cruiser All
1965 Pontiac GTO All
1965 Pontiac LeMans All
1965 Pontiac Tempest All
1966 Buick Gran Sport All
1966 Buick Skylark All
1966 Buick Special All
1966 Buick Sportwagon All
1966 Chevrolet Chevelle Drum Brake Spindle
1966 Chevrolet Chevy II Drum Brake Front
1966 Chevrolet El Camino Drum Brake Spindle
1966 Oldsmobile Cutlass All
1966 Oldsmobile F85 All
1966 Oldsmobile Vista Cruiser All
1966 Pontiac GTO All
1966 Pontiac LeMans All
1966 Pontiac Tempest All
1967 Buick Gran Sport Disc Brake Spindle
1967 Buick Gran Sport Drum Brake Front
1967 Buick Skylark Disc Brake Spindle
1967 Buick Skylark Drum Brake Spindle
1967 Buick Special Disc Brake Spindle
1967 Buick Special Drum Brake Spindle
1967 Buick Sportwagon Disc Brake Spindle
1967 Buick Sportwagon Drum Brake Front
1967 Chevrolet Camaro Disc Brake Spindle
1967 Chevrolet Camaro Drum Brake Front
1967 Chevrolet Chevelle Disc Brake Spindle
1967 Chevrolet Chevelle Drum Brake Front
1967 Chevrolet Chevy II Disc Brake Spindle
1967 Chevrolet Chevy II Drum Brake Front
1967 Chevrolet El Camino Disc Brake Spindle
1967 Chevrolet El Camino Drum Brake Spindle
1967 Oldsmobile 442 Disc Brake Spindle
1967 Oldsmobile Cutlass Disc Brake Spindle
1967 Oldsmobile Cutlass Drum Brake Spindle
1967 Oldsmobile F85 Disc Brake Spindle
1967 Oldsmobile F85 Drum Brake Spindle
1967 Oldsmobile Vista Cruiser Disc Brake Spindle
1967 Oldsmobile Vista Cruiser Drum Brake Spindle
1967 Pontiac Firebird Disc Brake Spindle
1967 Pontiac Firebird Drum Brake Spindle
1967 Pontiac GTO Disc Brake Spindle
1967 Pontiac GTO Drum Brake Spindle
1967 Pontiac LeMans Disc Brake Spindle
1967 Pontiac LeMans Drum Brake Spindle
1967 Pontiac Tempest Disc Brake Spindle
1967 Pontiac Tempest Drum Brake Spindle
1968 Buick Skylark Disc Brake Spindle
1968 Buick Skylark Drum Brake Spindle
1968 Buick Special Disc Brake Spindle
1968 Buick Special Drum Brake Spindle
1968 Buick Sportwagon Disc Brake Spindle
1968 Buick Sportwagon Drum Brake Front
1968 Chevrolet Camaro Disc Brake Spindle
1968 Chevrolet Camaro Drum Brake Front
1968 Chevrolet Camaro Z/28 w/ 4 Wheel Disc
1968 Chevrolet Chevelle Disc Brake Spindle
1968 Chevrolet Chevelle Drum Brake Front
1968 Chevrolet Chevy II Disc Brake Spindle
1968 Chevrolet Chevy II Drum Brake Front
1968 Chevrolet El Camino Disc Brake Spindle
1968 Chevrolet El Camino Drum Brake Spindle
1968 Oldsmobile 442 Disc Brake Spindle
1968 Oldsmobile Cutlass Disc Brake Spindle
1968 Oldsmobile Cutlass Drum Brake Spindle
1968 Oldsmobile F85 Disc Brake Spindle
1968 Oldsmobile F85 Drum Brake Spindle
1968 Oldsmobile Vista Cruiser Disc Brake Spindle
1968 Oldsmobile Vista Cruiser Drum Brake Spindle
1968 Pontiac Firebird Disc Brake Spindle
1968 Pontiac Firebird Drum Brake Spindle
1968 Pontiac GTO Disc Brake Spindle
1968 Pontiac GTO Drum Brake Spindle
1968 Pontiac LeMans Disc Brake Spindle
1968 Pontiac LeMans Drum Brake Spindle
1968 Pontiac Tempest Disc Brake Spindle
1968 Pontiac Tempest Drum Brake Spindle
1969 Buick Skylark Disc Brake Spindle
1969 Buick Skylark Drum Brake Spindle
1969 Buick Special Disc Brake Spindle
1969 Buick Special Drum Brake Spindle
1969 Buick Sportwagon Disc Brake Spindle
1969 Buick Sportwagon Drum Brake Front
1969 Chevrolet Camaro Disc Brake Spindle
1969 Chevrolet Camaro Drum Brake Front
1969 Chevrolet Camaro Z/28 w/ 4 Wheel Disc
1969 Chevrolet Chevelle Disc Brake Spindle
1969 Chevrolet Chevelle Drum Brake Front
1969 Chevrolet El Camino Disc Brake Spindle
1969 Chevrolet El Camino Drum Brake Spindle
1969 Chevrolet Nova Disc Brake Spindle
1969 Chevrolet Nova Drum Brake Front
1969 Oldsmobile 442 Disc Brake Spindle
1969 Oldsmobile Cutlass Disc Brake Spindle
1969 Oldsmobile Cutlass Drum Brake Spindle
1969 Oldsmobile F85 Disc Brake Spindle
1969 Oldsmobile F85 Drum Brake Spindle
1969 Oldsmobile Vista Cruiser Disc Brake Spindle
1969 Oldsmobile Vista Cruiser Drum Brake Spindle
1969 Pontiac Firebird Disc Brake Spindle
1969 Pontiac Firebird Drum Brake Spindle
1969 Pontiac Grand Prix Disc Brake Spindle
1969 Pontiac Grand Prix Drum Brake Spindle
1969 Pontiac GTO Disc Brake Spindle
1969 Pontiac GTO Drum Brake Spindle
1969 Pontiac LeMans Disc Brake Spindle
1969 Pontiac LeMans Drum Brake Spindle
1969 Pontiac Tempest Disc Brake Spindle
1969 Pontiac Tempest Drum Brake Spindle
1970 Buick Skylark Disc Brake Spindle
1970 Buick Skylark Drum Brake Spindle
1970 Buick Sportwagon Disc Brake Spindle
1970 Buick Sportwagon Drum Brake Front
1970 Chevrolet Chevelle Disc Brake Spindle
1970 Chevrolet Chevelle Drum Brake Front
1970 Chevrolet El Camino Disc Brake Spindle
1970 Chevrolet El Camino Drum Brake Spindle
1970 Chevrolet Monte Carlo Disc Brake Spindle
1970 Chevrolet Nova Disc Brake Spindle
1970 Chevrolet Nova Drum Brake Front
1970 Oldsmobile 442 Disc Brake Spindle
1970 Oldsmobile 442 w/ O.A.I. Drum Brake Spindles
1970 Oldsmobile Cutlass Disc Brake Spindle
1970 Oldsmobile Cutlass Drum Brake Spindle
1970 Oldsmobile Cutlass w/ O.A.I. Drum Brake Spindles
1970 Oldsmobile F85 Disc Brake Spindle
1970 Oldsmobile F85 Drum Brake Spindle w/o O.A.I
1970 Oldsmobile F85 w/ O.A.I. Drum Brake Spindles
1970 Oldsmobile Vista Cruiser Disc Brake Spindle
1970 Oldsmobile Vista Cruiser Drum Brake Spindle
1970 Pontiac Grand Prix Disc Brake Spindle
1970 Pontiac GTO Disc Brake Spindle
1970 Pontiac GTO Drum Brake Spindle
1970 Pontiac LeMans Disc Brake Spindle
1970 Pontiac LeMans Drum Brake Spindle
1970 Pontiac Tempest Disc Brake Spindle
1970 Pontiac Tempest Drum Brake Spindle
1971 Buick Skylark Disc Brake Spindle
1971 Buick Sportwagon Disc Brake Spindle
1971 Chevrolet Chevelle Disc Brake Spindle
1971 Chevrolet Chevelle Drum Brake Front
1971 Chevrolet El Camino Disc Brake Spindle
1971 Chevrolet El Camino Drum Brake Spindle
1971 Chevrolet Monte Carlo Disc Brake Spindle
1971 Chevrolet Nova Disc Brake Spindle
1971 Chevrolet Nova Drum Brake Front
1971 GMC Sprint Disc Brake Spindle
1971 GMC Sprint Drum Brake Spindle
1971 Oldsmobile 442 Disc Brake Spindle
1971 Oldsmobile 442 w/ O.A.I. Drum Brake Spindles
1971 Oldsmobile Cutlass Disc Brake Spindle
1971 Oldsmobile Cutlass Drum Brake Spindle
1971 Oldsmobile Cutlass w/ O.A.I. Drum Brake Spindles
1971 Oldsmobile F85 Disc Brake Spindle
1971 Oldsmobile F85 Drum Brake Spindle w/o O.A.I
1971 Oldsmobile F85 w/ O.A.I. Drum Brake Spindles
1971 Oldsmobile Vista Cruiser Disc Brake Spindle
1971 Oldsmobile Vista Cruiser Drum Brake Spindle
1971 Pontiac Grand Prix Disc Brake Spindle
1971 Pontiac GTO Disc Brake Spindle
1971 Pontiac GTO Drum Brake Spindle
1971 Pontiac LeMans Disc Brake Spindle
1971 Pontiac LeMans Drum Brake Spindle
1971 Pontiac Ventura II Disc Brake Spindle
1971 Pontiac Ventura II Drum Brake Front
1972 Buick Skylark Disc Brake Spindle
1972 Buick Sportwagon Disc Brake Spindle
1972 Chevrolet Chevelle Disc Brake Spindle
1972 Chevrolet Chevelle Drum Brake Front
1972 Chevrolet El Camino Disc Brake Spindle
1972 Chevrolet El Camino Drum Brake Spindle
1972 Chevrolet Monte Carlo Disc Brake Spindle
1972 Chevrolet Nova Disc Brake Spindle
1972 Chevrolet Nova Drum Brake Front
1972 GMC Sprint Disc Brake Spindle
1972 GMC Sprint Drum Brake Spindle
1972 Oldsmobile Cutlass Disc Brake Spindle
1972 Oldsmobile Cutlass Drum Brake Spindle
1972 Oldsmobile Cutlass w/ O.A.I. Drum Brake Spindles
1972 Oldsmobile F85 Disc Brake Spindle
1972 Oldsmobile F85 Drum Brake Spindle w/o O.A.I
1972 Oldsmobile F85 w/ O.A.I. Drum Brake Spindles
1972 Oldsmobile Vista Cruiser Disc Brake Spindle
1972 Oldsmobile Vista Cruiser Drum Brake Spindle
1972 Pontiac Grand Prix Disc Brake Spindle
1972 Pontiac GTO Disc Brake Spindle
1972 Pontiac LeMans Disc Brake Spindle
1972 Pontiac LeMans Drum Brake Spindle
1972 Pontiac Ventura II Disc Brake Spindle
1972 Pontiac Ventura II Drum Brake Front
1973 Buick Apollo Disc Brake Spindle
1973 Buick Apollo Drum Brake Front
1973 Chevrolet Nova Disc Brake Spindle
1973 Chevrolet Nova Drum Brake Front
1973 Oldsmobile Omega Disc Brake Spindle
1973 Oldsmobile Omega Drum Brake Front
1973 Pontiac Ventura II Disc Brake Spindle
1973 Pontiac Ventura II Drum Brake Front
1974 Buick Apollo Disc Brake Spindle
1974 Buick Apollo Drum Brake Front
1974 Chevrolet Nova Disc Brake Spindle
1974 Chevrolet Nova Drum Brake Front
1974 Oldsmobile Omega Disc Brake Spindle
1974 Oldsmobile Omega Drum Brake Front
1974 Pontiac Ventura II Disc Brake Spindle
1974 Pontiac Ventura II Drum Brake Front

Charts

Installation Instructions (PDF)

Important Messages

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations

Related Products

More Like This

Reviews

Q & A

Videos & Articles
  • When it comes to a traditional style build on an early hot rod it just has to be rolling on a solid front axle of some sort. In this buyer's guide we take you through I-beam and round tube solid axles, spindle choices, radius rod needs, and more.
  • Follow along as Speedway Tech Kevin W. updates the brakes on his Bel Air with a modern disc brake conversion kit.
  • In this Tech Tip, a customer asked about finding a set of disc brakes for his 1949 Ford F1 pickup, with one caveat. He wants to use the factory wheels.

You May Also Like

Error
X
Note
X
Ok
